TCT saw blade,saw blade,blade,circular saw blade,industrial grade.The steel body is 75Cr1/65Mn.And carbide tip is K01,imported ones.
The advantage of our TCT saw blade is as below.
1.The material is imported one.The steel body is 75Cr1,the carbide tip is Luxemburg,K01 etc,welded with siver-brazed slice.
2.It is welded and grinded by CNC automatic machine,not by hand.
3.The vertical jump is less than ±0.02mm,flap less than ±0.01mm.The tolerance is controlled to be minimum.

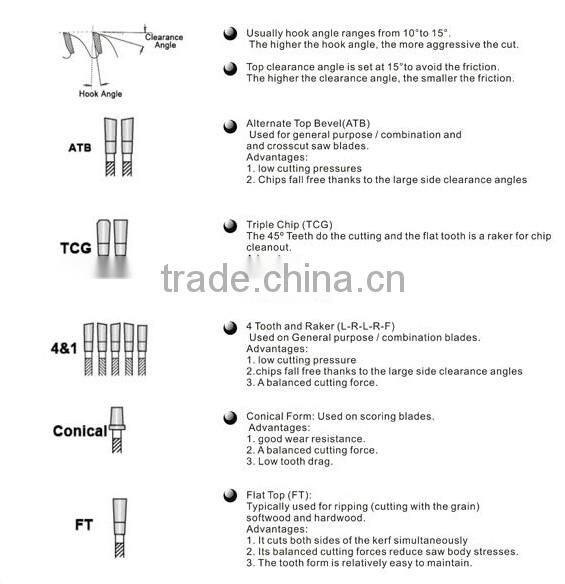

The panel sizing saw blade with left/right bevel sawtooth,it is applied to the computer controlled tandem slitter.
It is supported by the cone-shaped sub-saw.It can cut various sheet materials,the max cutting thickness more than 100mm,with excellent cutting surface&durability.
| Out diameter(ΦD) | Tooth width(B)mm | Tooth thickness(Φb)mm | Inner diameter(d)mm | Number of Teeth(Z) | Cutting Angle(a°) | Tooth type(C) | Use(U) |
| 180 | 3.2 | 2.2 | 25.4 | 30 | 15 | Left/right | Cut various solid wood |
| 200 | 3.2 | 2.2 | 25.4 | 36 | 15 | ||
| 230 | 3.2 | 2.2 | 25.4/30 | 40 | 15 | ||
| 250 | 3.2 | 2.2 | 30 | 40 | 15 | ||
| 300 | 3.2 | 2.2 | 30 | 48 | 15 | ||
| 350 | 3.5 | 2.5 | 30 | 54 | 15 | ||
| 400 | 3.5 | 2.5 | 30 | 60 | 15 | ||
| 450 | 4.0 | 2.8 | 30 | 72 | 15 | ||
| 500 | 4.4 | 3.0 | 30 | 80 | 15 |
