120x(12+12)T TCT Saw Blade-adjusted Scoring(double) for Wood Cutting

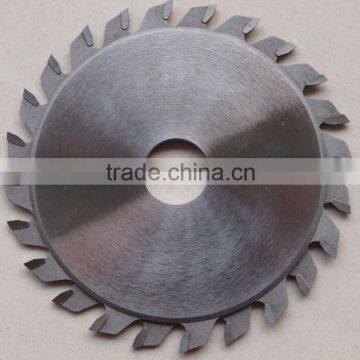

120x(12+12)T TCT Saw Blade-adjusted Scoring(double) for Wood Cutting photo-1

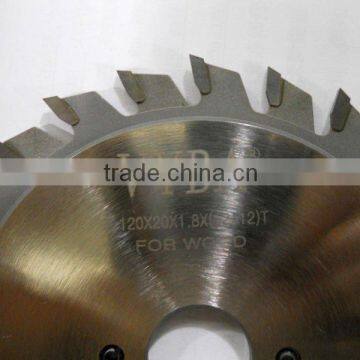

120x(12+12)T TCT Saw Blade-adjusted Scoring(double) for Wood Cutting photo-2

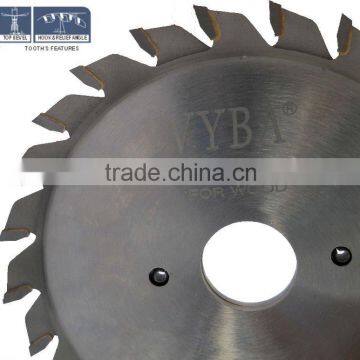

120x(12+12)T TCT Saw Blade-adjusted Scoring(double) for Wood Cutting photo-3

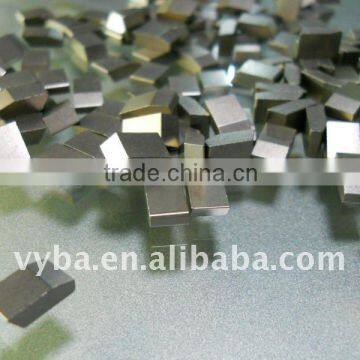

120x(12+12)T TCT Saw Blade-adjusted Scoring(double) for Wood Cutting photo-4

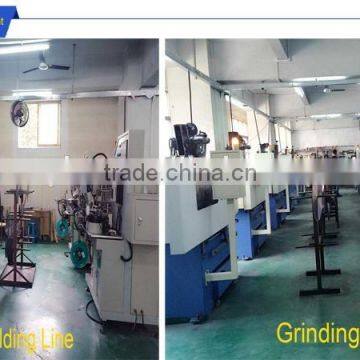

120x(12+12)T TCT Saw Blade-adjusted Scoring(double) for Wood Cutting photo-5
120x(12+12)T TCT Saw Blade-adjusted Scoring(double) for Wood Cutting photo-6
US$ 18 - 20 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
VYBA
Model Number:
scoring saw blade (double )
Payment & Shipping
Payment Methods:
Port of Shipment:
Foshan
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name VYBA
Model Number scoring saw blade (double )
Type Saw Blade
Blade Material Tungsten Carbide Steel
Finishing Other, sandblasted
Size 120x(12+12)T



TCT saw blade-adjusted scoring(double),saw blade,circular TCT saw blade,it is mainly used to score on double-face veneered of MDF board.

 The blade is shaped in cone and equipped with the left/right bevel sawtooth,and the prescribing width can be adjusted by adjusted by raising or lowering its principal axis.It is exclusively applied to the cutting of  various double-face veneered medium-density fibreboard.The cracking and rough edge of the veneering can be avoided.It is applicable to the computer controlled tandem slitter.



Advantages:

1.Material:steel body in 75Cr1 imported from Japan,tip CERATIZIT/K01/Taiwanese/Top quality made-in-China.

 A.Steel body,laser-cutting,heat treatment to add strength.

 B.Hand hammered to make run-out to minimum.

 C.Dynamic balancing and straightness:To diminish the saw blade "run-out" and vibration enhancing the accuracy.

2.Automatic welding and grinding machine.

3.Sandwich soldering flake.

4.Saw blade can be re-sharpen repeatedly.

5.Customized size is also available.Any size can be produced as customer required.



Pls refer the most comman sizes as below:

  Out diameter(ΦD)     Tooth width(B)mm     Tooth thickness(Φb)mm Inner diameter(d)mm  Number of Teeth(Z) Tooth type(C)
          80        2.8-3.6                       2.0                    20             10+10         ATB
         100       2.8-3.6                       2.0                    20             12+12
         100       2.8-3.6                       2.0                    22             12+12
         120       2.8-3.6                      2.0                    20             12+12
         120       2.8-3.6                      2.0                    22             12+12
         125       2.8-3.6                      2.0                    20              12+12
         125       2.8-3.6                      2.0                    22             12+12

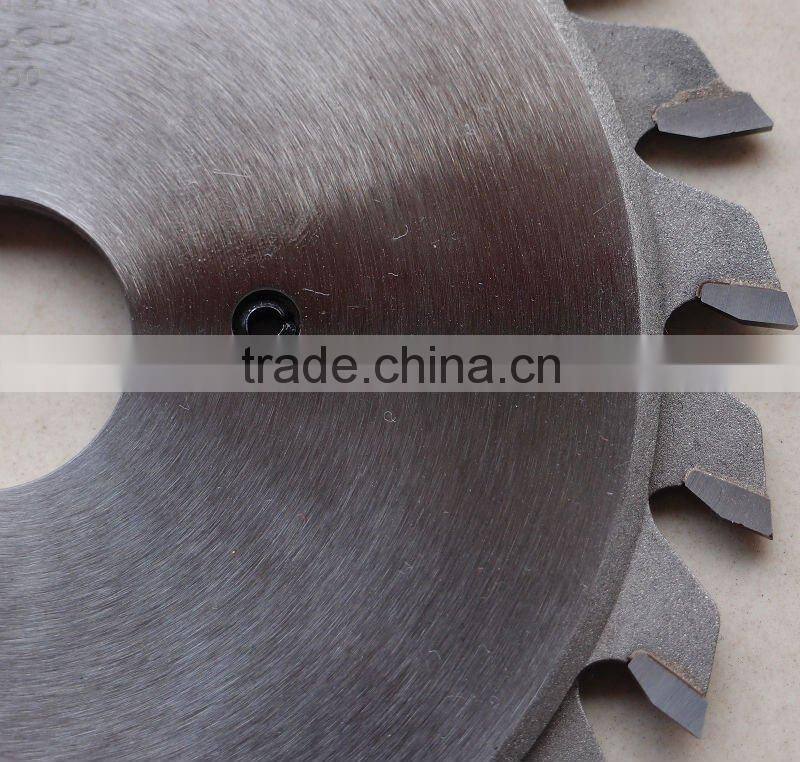

120x(12+12)T TCT Saw Blade-adjusted scoring(double) for wood cutting
