Construction Projects

Name: Construction Projects
Brand: weifang-tailai
SKU: 125368273

US$ 800 - 1,000 MOQ: 10 Tons

Key Specifications

Get Latest Price

Standard:

AISI, ASTM, BS, DIN, GB, JIS

Grade:

Q235,Q345

Dimensions:

customized

Contact Supplier Request Quote Chat Now

Weifang Tailai Steel Structure Engineering Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Standard AISI, ASTM, BS, DIN, GB, JIS

Grade Q235,Q345

Dimensions customized

Place of Origin Shandong, China

Brand Name weifang-tailai

Model Number Tailai668

Application Steel Workshop

Product Description

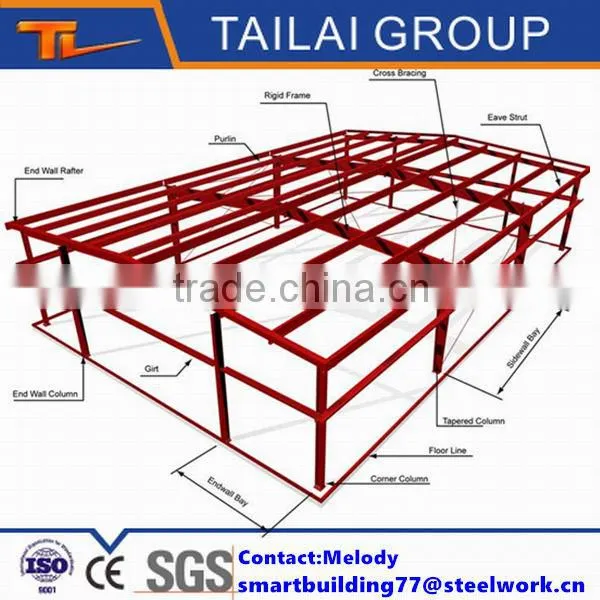

Main Steel Structure Frame
1	Main steel structure (columns and beams)	1.Steel Q345(S355JR) or Q235(S235JR) H shape 2. Straight cross-section or Variable cross-section
2	Sub steel structure	1.Material Q235(S235JR) steel, 2.Bolt connections. Anti-rust painted or galvanized. 3. Brcaings:X-type or V-type or other type bracing made from angle, round pipe, etc 4. Purlins:C or Z type: Size from C120~C320, Z100~Z200
Maintenance system
3	Roof	Sandwich panel(PU/EPS/fiberglass/rook wool) or Colorful steel tile
4	Wall	Sandwich panel(PU/EPS/fiberglass/rook wool) or Colorful steel tile
	Doors	Steel rolling shutter or others
	Windows	Alu. Alloy window,or others
Fitting
7	Edge Cover	Steel sheet 0.5mm thinckness
8	Bolts	M24,M22,M16 embedded bolts,intensive bolts,galvanized ordinary bolts,high-strength bolts , etc
9	Others options	Daylighting panel,Roof ventilator,Down pipe,Galvanized,Crane,sanitary Products, etc
10	Foundation	Cement and steel foundation bolts

Fabrication:

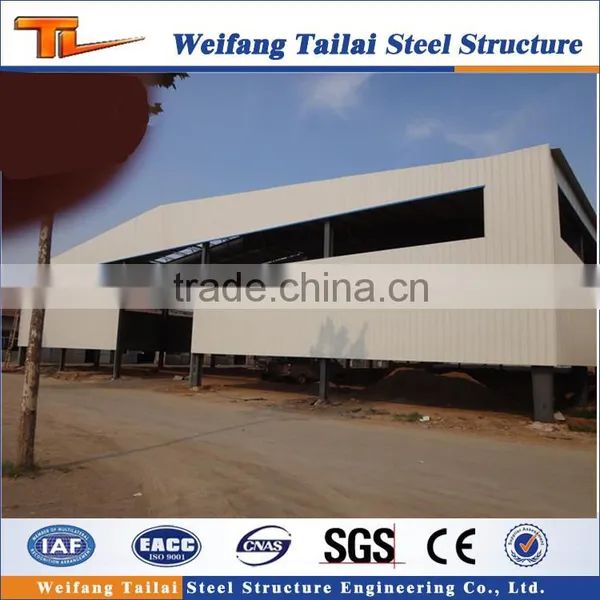

Sample Project

Service

Workshop, warehouse, office buildings, supermarkets, logistic warehouses, showrooms, hangar, shelter, and fabrication the steel structure buildings.

Advantage

1.Weight is lighter

2.Working reliability is higher

3.Excellent anti-shock and anti-impact ability

4.High degree of industrialization

5.Can be assembled accurately and rapidly

6.Interior space is large

7.Easy to make seal structure

8.Recyclable

9.Construction period shorter

Design

Design Parameters	1) Live load on roof (KN/M2)
	2) Wind speed (KM/H)
	3) Snow load (KG/M2) - If Applicable
	4) Earthquake load - If Applicable
	5) Style of Doors and Windows
	4) Crane (if you have), Crane span, Crane lift height, max lift capacity, max wheel pressure and min wheel pressure
	5) Size: width X length X eave height, roof slope
	6) Or your idea!

Design Common Norms

(1) Structural load norms(GB50009-2001)(version 2006)

(2) Code for acceptance of construction quality of steel structures (GB50205-2001)

(3) Code for design of steel structures(GBJ50017-2003)

(4) Technical code of cold-formed thin-wall steel structures (GB 50018-2002)

(5) Technical specification for welding of steel structure of building (JGJ81-2002)

(6) Technical specification for steel structure of light-weight buildings with gabled frame (CECS 102*2002)

(7) Code for seismic design of buildings(GB50011-2010)

(8) Code of design on building fire protection and prevention(GB50016-2006)

(9) Low-alloy high-tensile structural steel(GB/T1591-2008)

(10) Carbon structural steel (GB/T700-2006)

(11) Code for design of masonry structures (GB50003-2001)

(12) Code for design of concrete structures (GB50010-2010)

you may offer us your own drawings to construct as per your request or you might just offer your ideas , we can design the project according to your requirment.
