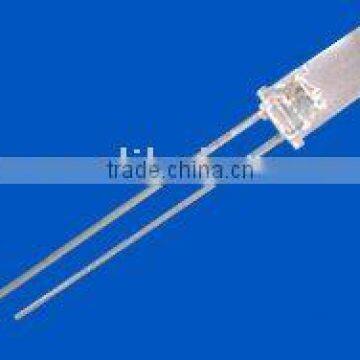

5mm Flat Hat Led With Rim,15/30degree Viewing Angle,Water Clear,red,yellow,blue,green,warm White,warm Color Available

5mm Flat Hat Led With Rim,15/30degree Viewing Angle,Water Clear,red,yellow,blue,green,warm White,warm Color Available thumbnail-1
5mm Flat Hat Led With Rim,15/30degree Viewing Angle,Water Clear,red,yellow,blue,green,warm White,warm Color Available photo-1
US$ 0.015 - 0.04 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
RITA
Contact Supplier Request Quote Chat Now
Shenzhen Rita Lighting Technology Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name RITA

Specifications

5mm flat hat led with rim,15/30degree viewing angle,Water Clear,red,yellow,blue,green,warm white,warm color available

Product Description:
         1,3 mm round boundless
         2, can be red, yellow, blue, green, white, warm white light of various
         3, colloids can be colorless, transparent color, red, yellow, blue, green
         4, ultra-high brightness
         5, the high excitation efficiency, performance, high stability
         6, ESD capacity ≤ 3000V
         7, through ISO quality system certification, in full compliance with environmental standards and Rohs





2,Photoelectric Properties of products

Product Name model color angle(°) Dominant wavelength / color temperature(IF=20mA) Luminous intensity
(IF=20mA)		 Forward voltage(IF=20mA)
minumum max minumum max minumum max
φ3 round boundless NG-3003DO1CN orange 30±5 600nm 605nm 1000 4000 1.9 2.4
NG-3003DO2CN orange 30±5 605nm 610nm 1000 4000 1.9 2.4
NG-3003CR1CN red 30±5 610nm 615nm 800 4000 1.9 2.4
NG-3003CR2CN red 30±5 615nm 620nm 800 4000 1.9 2.4
NG-3003CR3CN red 30±5 620nm 625nm 800 4000 1.9 2.4
NG-3003CR4CN red 30±5 625nm 630nm 800 4000 1.9 2.4
NG-3003CR5CN red 30±5 630nm 635nm 800 4000 1.9 2.4
NG-3003CR6CN red 30±5 635nm 640nm 800 4000 1.9 2.4
NG-3003CY1CN yellow 30±5 580nm 585nm 800 4000 1.9 2.4
NG-3003CY2CN yellow 30±5 585nm 590nm 800 4000 1.9 2.4
NG-3003CY3CN yellow 30±5 590nm 595nm 800 4000 1.9 2.4
NG-3003DB1CN blue 30±5 450nm 455nm 1000 2500 3 3.4
NG-3003DB2CN blue 30±5 455nm 460nm 1000 2500 3 3.4
NG-3003DB3CN blue 30±5 460nm 465nm 1000 2500 3 3.4
NG-3003DB4CN blue 30±5 465nm 470nm 1000 2500 3 3.4
NG-3003DB5CN blue 30±5 470nm 475nm 1000 2500 3 3.4
NG-3003DB6CN blue 30±5 475nm 480nm 1000 2500 3 3.4
NG-3003GG1CN green 30±5 500nm 505nm 4000 8000 3 3.4
NG-3003GG2CN green 30±5 505nm 510nm 4000 8000 3 3.4
NG-3003GG3CN green 30±5 510nm 515nm 4000 8000 3 3.4
NG-3003GG4CN green 30±5 515nm 520nm 4000 8000 3 3.4
NG-3003GG5CN green 30±5 520nm 525nm 4000 8000 3 3.4
NG-3003GG6CN green 30±5 525nm 530nm 4000 8000 3 3.4
NG-3003GG7CN green 30±5 530nm 535nm 4000 8000 3 3.4
NG-3003GG8CN green 30±5 570nm 575nm 4000 8000 3 3.4
NG-3003GG9CN green 30±5 575nm 580nm 4000 8000 3 3.4
NG-3003GW1CN white 30±5 2000K 3000K 4000 6000 3 3.4
NG-3003GW1CN white 30±5 3000K 4000K 4000 6000 3 3.4
NG-3003HW1CN white 30±5 4000K 5000K 5000 7000 3 3.4
NG-3003HW1CN white 30±5 5000K 6000K 5000 7000 3 3.4
NG-3003HW1CN white 30±5 6000K 7000K 5000 7000 3 3.4
NG-3003HW1CN white 30±5 7000K 8000K 5000 7000 3 3.4
NG-3003HW1CN white 30±5 8000K 9000K 5000 7000 3 3.4



        3 NOTES:
         3.1 Welding conditions:
         (1) foot in length to be cut to retain the need to cut colloidal there more than 2mm distance (including 2mm)
         (2) welding time and temperature: 280 degrees for 5 seconds, 300 degrees 3 seconds
         (3) reflow temperature and time: 260 degrees 1 minute
         (4) exposure to blue, green, white products electrostatic protective measures need to do a good job
