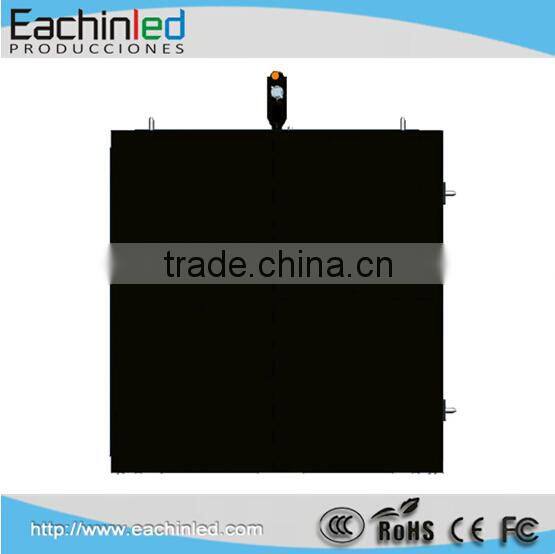

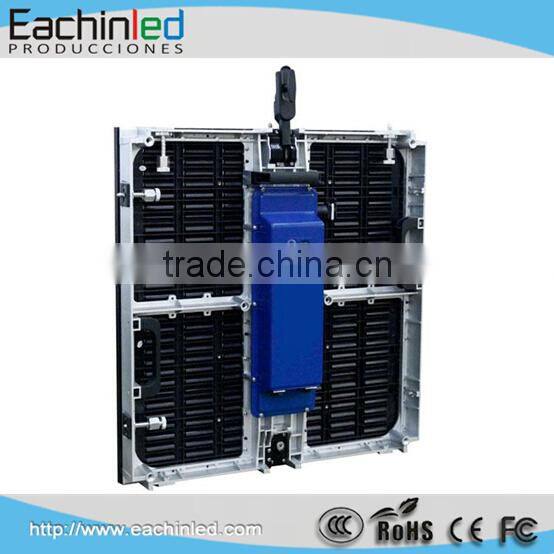

HD video p8 outdoor full color led rental display cabinet
1. We adopt Japanese die-casting aluminium alloy to produce durable cabinet with anti-seismic and tensile characteristics. which ensures more than 10-year life span.
2. Light weight, slim ,and fashionable design,unit cabinet weight is 15kg,the thickness is 80mm in total.
3. Excellent heat radiating design, heat can be quickly transfered to cabinet.

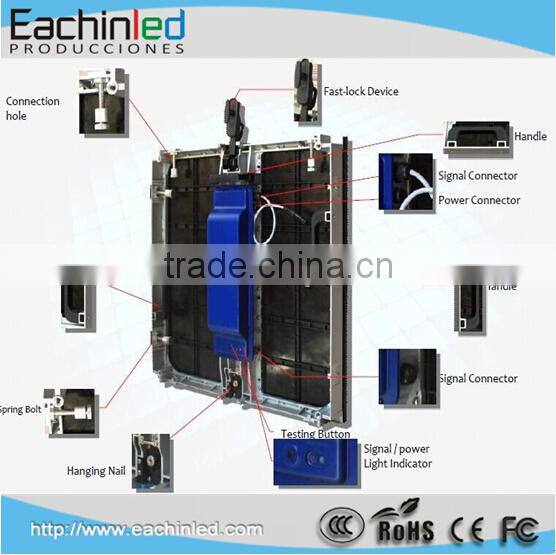

4. Fast lock enable the user to fast assemble and disassemble each cabinet with 30 seconds. each fast lock can undertake 200kg weight ,when hoisting,it makes the whole screen keep flat.
5. Indicator lights on the rear side of cabinet help the user inspect the working state easily.
6. Standard cabinet size L640mm*H640mm*T80mm/T105mm and standard modules for P6.67,P8,P10 ,P10.33 LED displays.
7. Portable flight case, good for taking away,use can put 6 cabinets in one flight case,save cost of freight for users.
8. Waterproof siginal and power connectors,oxidation resistance.
9. Opitional Install modes,hoisting, wall mount,standard structure etc
Technical Specification:
Outdoor Die casting Aluminum 640mm Rental LED Displays | ||||
Module |
Pitch/mm |
P6.67 |
P8 |
P10 |
Module size/mm |
320x320 |
320x320 |
320x320 |
|
Density of pixel/(dots/m2) |
22,478 |
15,625 |
10,000 |
|
Led encapsulation |
SMD3535 |
SMD3535 |
SMD3535 |
|
Resolution of module |
48X48 |
40X40 |
32X32 |
|
Main |
Optimum viewing distance |
7-75m |
8-75m |
10-150m |
View angle / ° |
140 H,120 V |
140 H,120 V |
110H,60V |
|
Max power consumption/W/M2 |
1100 |
1000 |
1000 |
|
Size of cabinet/mm |
640X640 |
640X640 |
640X640 |
|
Resolution of cabinet |
96x96 |
80x80 |
64x64 |
|
Weight of cabinet/kg |
15 |
15 |
15 |
|
Driving method |
1/8 scan constant current |
1/4 scan constant current |
1/4 scan constant current |
|
Refresh rate Hz/S |
≥2000 |
≥2000 |
≥2000 |
|
Luminance of white balance |
≥5000 nits |
≥6000 nits |
≥5500 nits |
|
Operation of Environmental Temperature/°C |
below 30 to above 50 |
|||
Working vlotage |
110-220 VAC/+/- 10% |
|||
Grey scale/color |
displaying colors≥16.7M(synchronized) |
|||
Brightness adjustment |
256 levels of each color(manually),100 levels of each color(automatically) |
|||
Input signal |
RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc |
|||
Control system |
linsn(sending card,receiving cards and Hubs) |
|||
Average of non-failure life |
>50,00h |
|||
Life span |
>100,000h |
|||
Defect dot rate |
<0.0001 |
|||

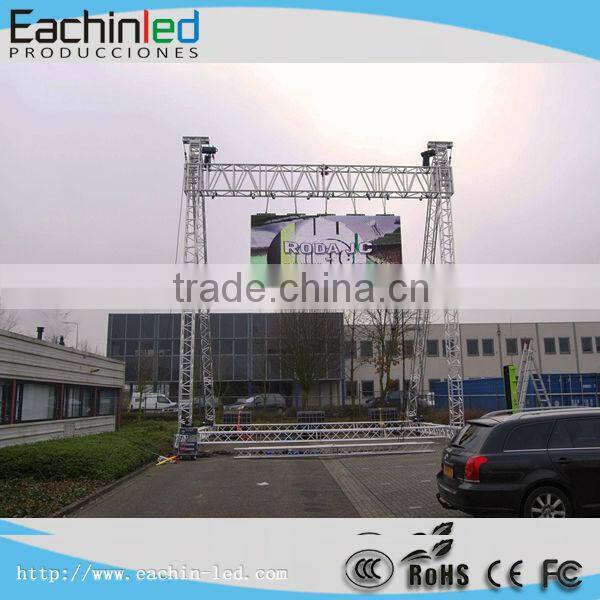

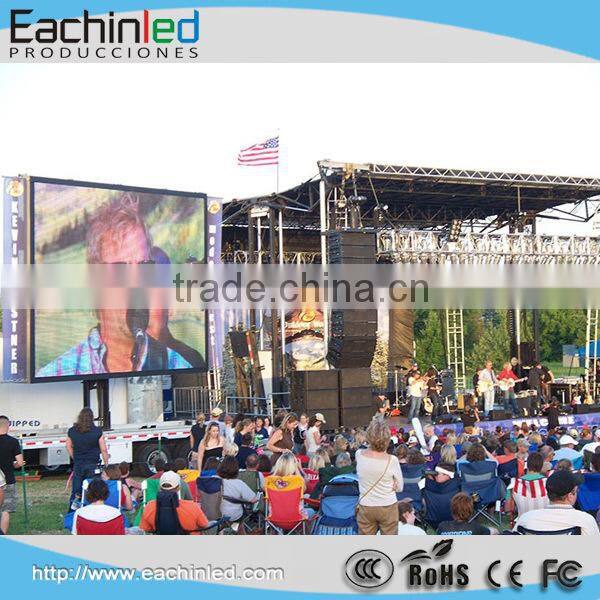

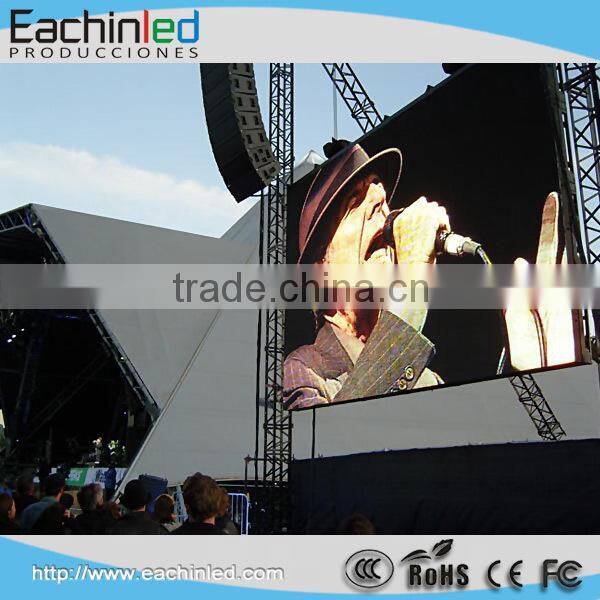

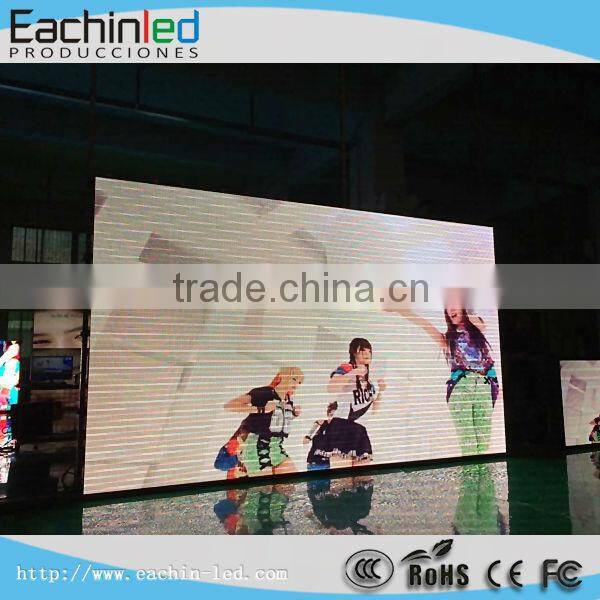

Gallery:
