Indoor LED Light Display Advertising Board/Large Stadium LED Display Screen

Name: Indoor LED Light Display Advertising Board/Large Stadium LED Display Screen
Brand: Eachinled
Availability: InStock

FOB Price

USD $600 - $610 / Square Meter

6 Square Meters(Min.Order)

Supply Ability 1000 Square Meter / Square Meters per Month
Port Shenzhen
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Eachinled
Model Number	P6 SMD3528	Usage	Indoor
Tube Chip Color	Full Color	Display Function	Video
Pixels	Other, 6mm	Screen Dimension	500mm*1000mm

Product Description

Indoor LED Light Display Advertising Board/Large Stadium LED Display Screen

Product Description

Technical Specification:

Indoor SMD Fixed Installed Commercial LED Displays
Module	Pitch/mm	P3	P4	p5	p6
	Module size/mm	192x96	128x128	160x160	192x96
	Density of pixel/(dots/m2)	111111	62500	40,000	27,777
	Pixel composition	SMD 3 in 1	SMD 3 in 1	SMD 3 in 1	SMD 3 in 1
	Led encapsulation	SMD2020 Black Lamps	SMD2020 Black Lamps	SMD3528 White Lamps	SMD3528 White Lamps
	Resolution of module	63x32	32X32	32X32	32X16
Main	Optimum viewing distance	3-10m	4-15m	6-16m	7.5-20m
	View angle / °	140H,120V	140H,120V	140 H,120 V	140 H,120 V
	Max power consumption/W/M2	1200	1,000	1,000	900
	Size of cabinet/mm	576x576	512X512	800X640	960X768
	Resolution of cabinet	192x192	128X128	160X128	160x128
	Driving method	1/16 scan constant current	1/16 scan constant current	1/8 scan constant current	1/8 scan constant current
	Refresh rate Hz/S	≥600	≥600	≥600	≥600
	Luminance of white balance	≥1500 nits	≥1500 nits	≥1500 nits	≥1500 nits
	Operation of Environmental Temperature/℃	below 30 to above 50
	Working vlotage	110-220 VAC/+/- 10%
	Grey scale/color	displaying colors≥16.7M(synchronized)
	Brightness adjustment	4096 levels of each color(manually),100 levels of each color(automatically)
	Input signal	RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
	Control system	linsn(sending card,receiving cards and Hubs)
	Average of non-failure life	>50,00h
	Life span	>100,000h
	Defect dot rate	<0.0001

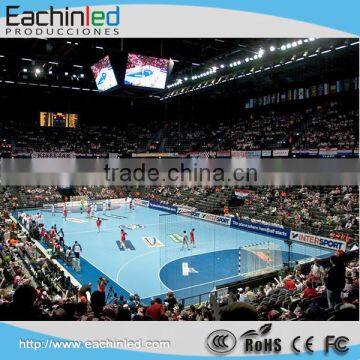

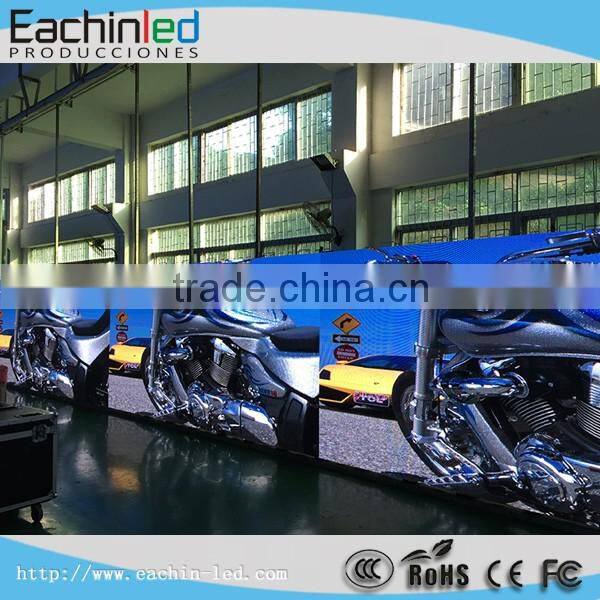

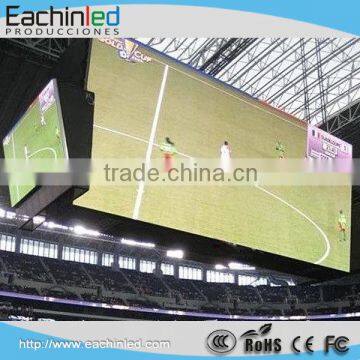

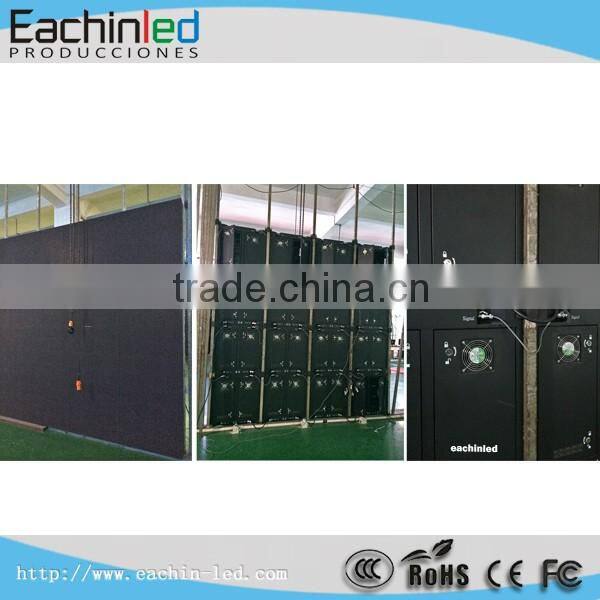

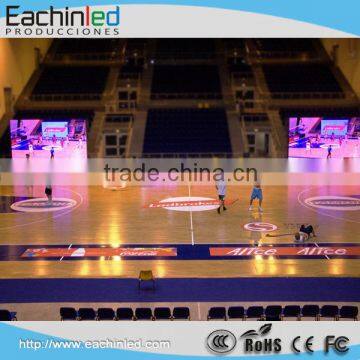

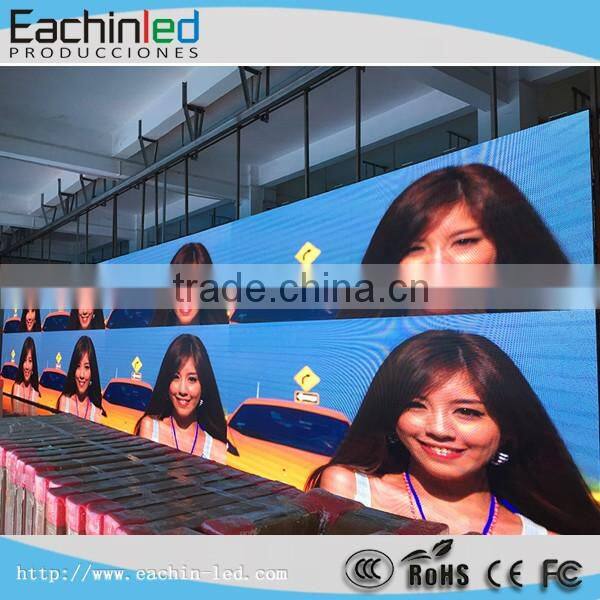

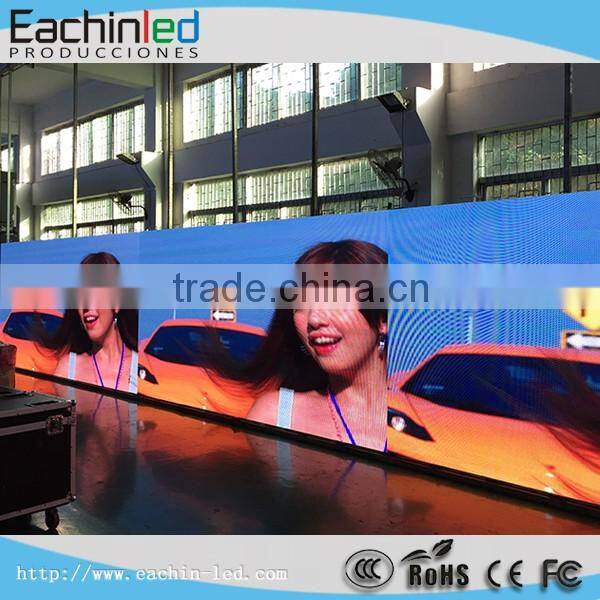

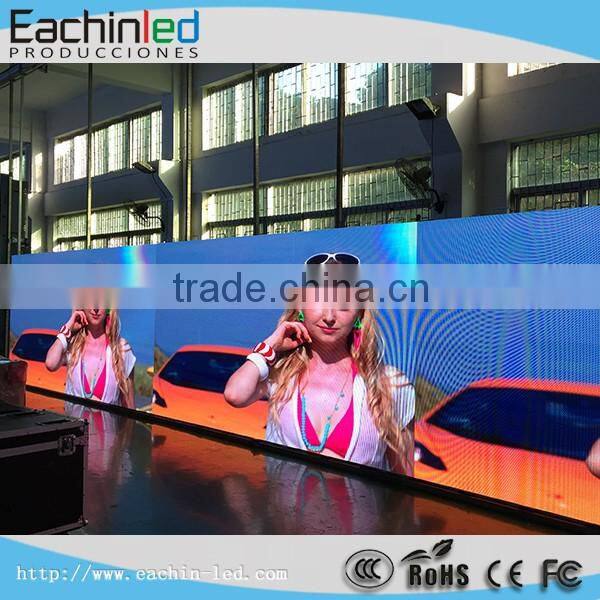

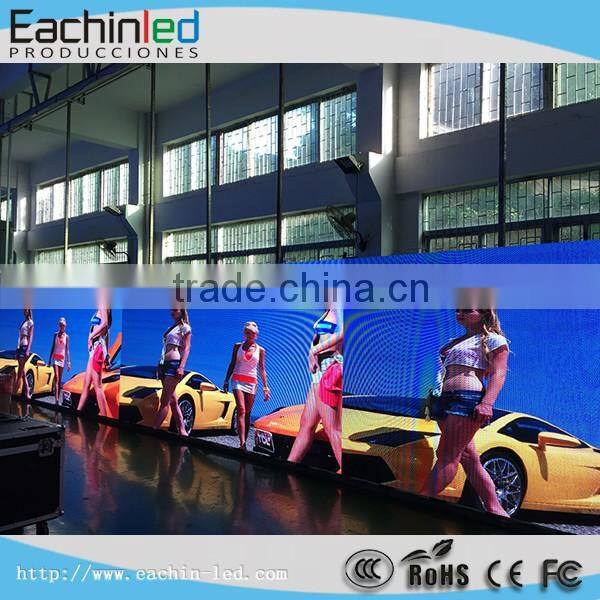

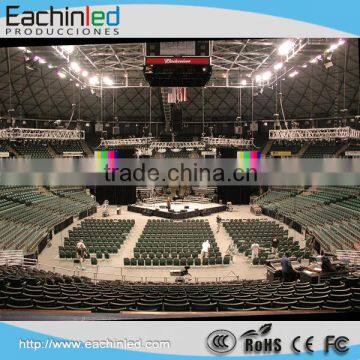

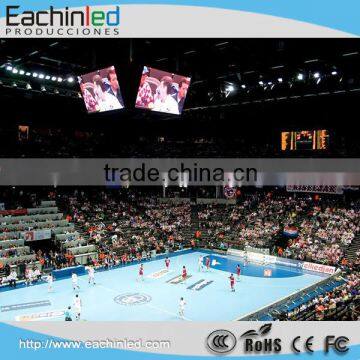

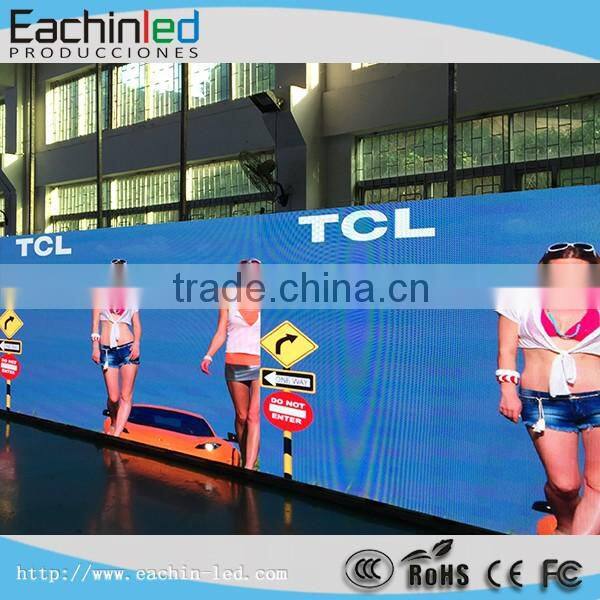

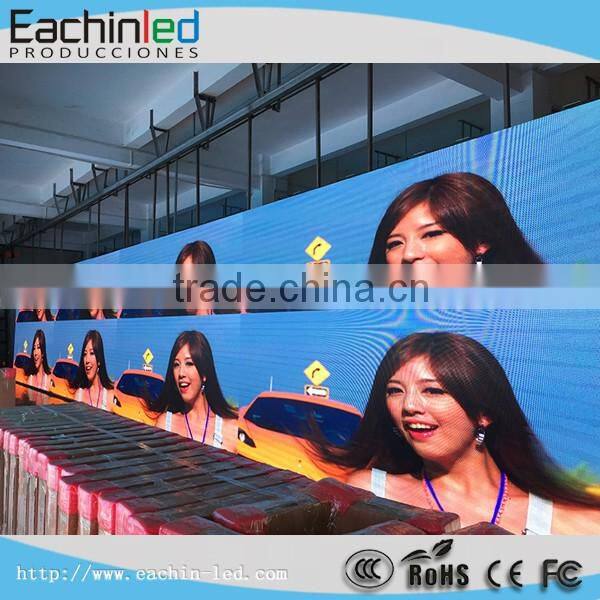

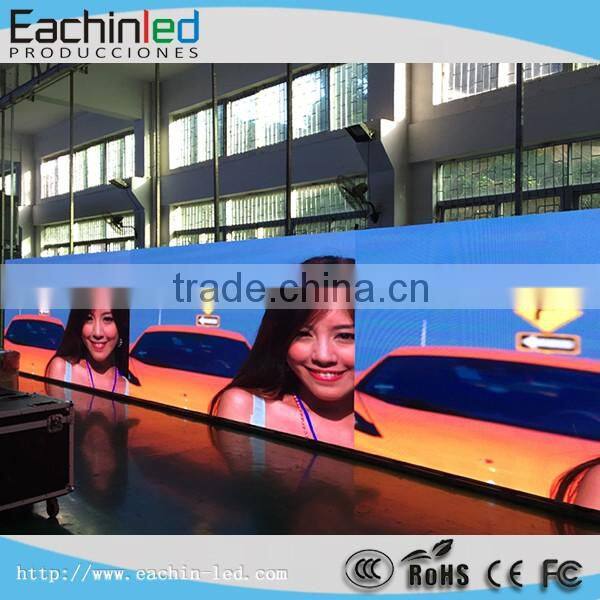

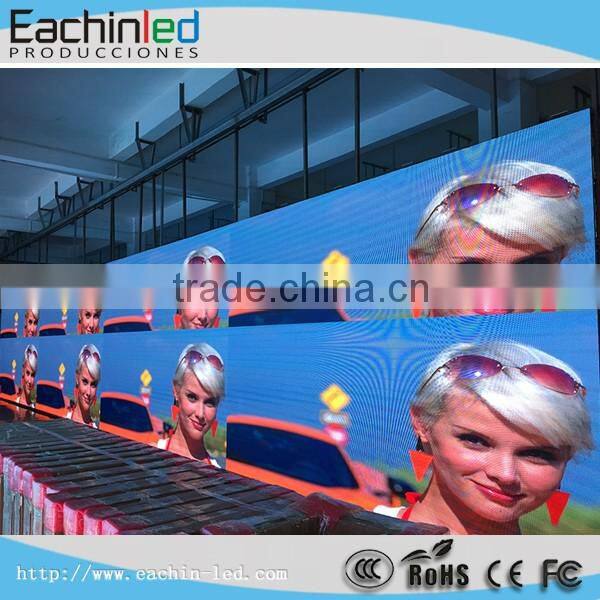

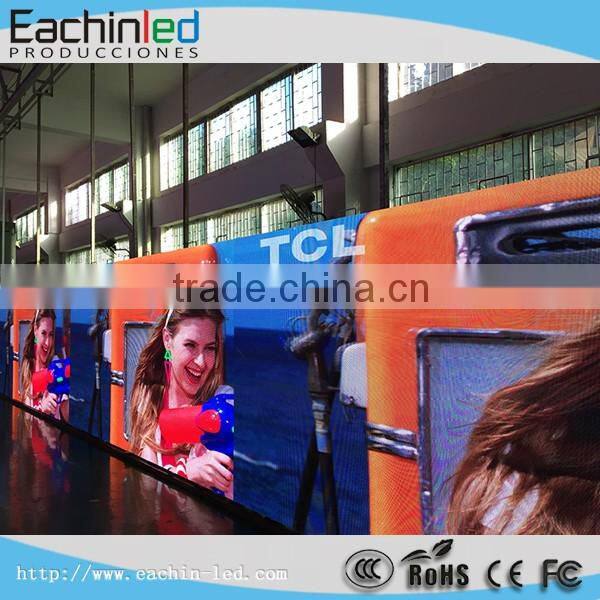

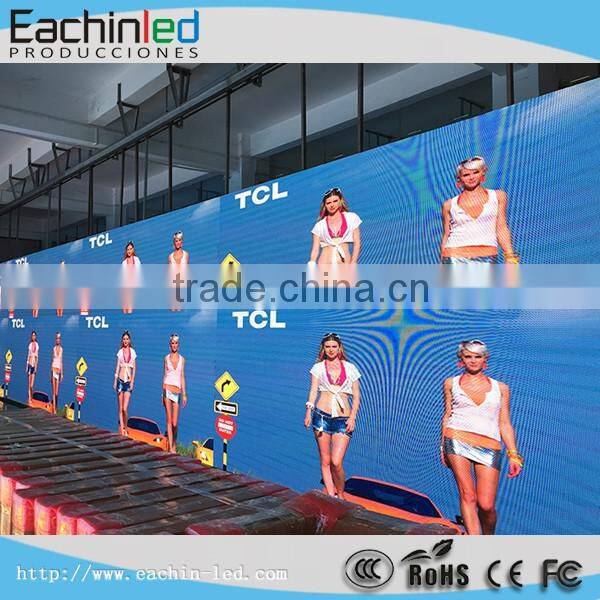

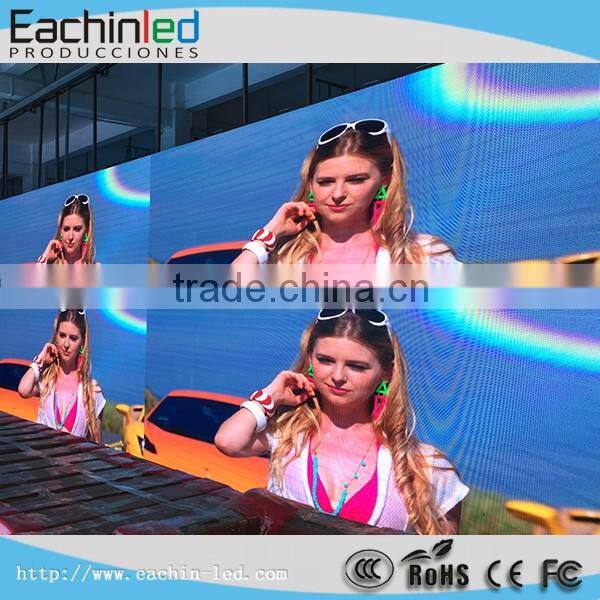

Gallery:

Our Services

EACHINLED, established in 2006, is committed to be the globally leading and respected provider for products and services of audio visual, events large screen and advertising media. EACHINLED is a national-level high-tech company , whose business involves Indoor rental LED display , Outdoor rental LED screens, Indoor fixed LED panels, Outdoor fixed LED advertising billboard and HD pixel LED video walls, etc.

EACHINLED holds the leading position in its main business of LED screen manufacturing, which can provide a wide range of indoor, outdoor, and rental LED screen with pixel ranging from P2.9-P31.25. They are widely applied to the wedding events, cooperation events, gala, festivals, concerts, shows, sport events, conferences, motor show, advertising media and event planning, etc.

EACHINLED will continue to spare no efforts in reinforcing its position as a product, technology and market. EACHINLED always contribute our efforts to help our customers improve visual effect and fulfill its social responsibilities.
