Specifications
hengshui guangxing screens is a professional manufacturer of stainless steel water well screenSS316L aperture1mm wire wrap water well screen pipe ( manufacturer )

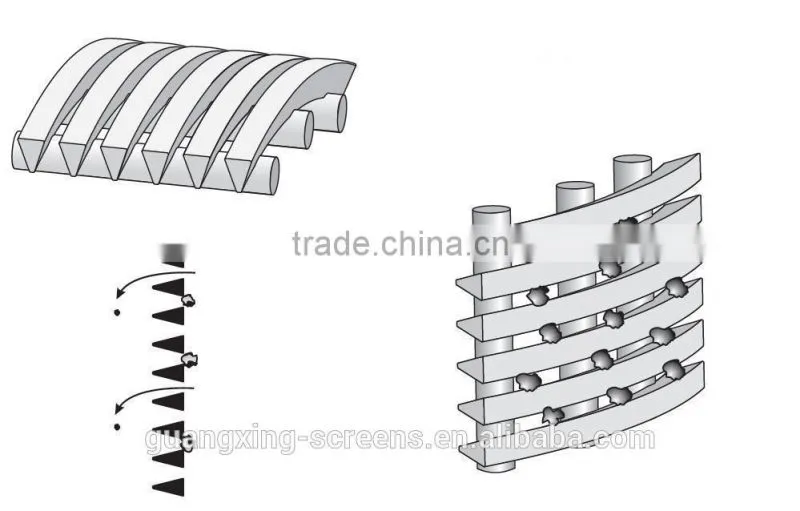

Stainless steel well screen shall be manufactured by spirally winding wedge shaped stainless steel wire over a frame of straight stainless steel wires parallel to the axis of the screen.The wedge wire shall be securely welded on the frame and fusion welded at every intersection.The ends of the frames shall be securely welded on the inner ends of each coupling adapter.
Nominal diameter and standard length of the screen
Open area of the screen (percent) and slot size
Collapse strength of the screen
Tensile strength of the screen
Details of the coupling connection including thread measurement
Number and size of supporting rod and shape and size of wedge wire
Stainless steel accoring to ASTM standard
All materials shall be new and of the specified standard
Submit certified copy of pre-shipment inspection done by the world recognized inspection and factory test report signed by chief inspector of the manufacturer.
Eliminate all possible damage to the materials during transit and handing with special care to screen sections and threaded portion of the materials.Thread protecting cap must be provided for protecting threaded of each screen
Specification (wedge wire ) |
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 |
Specification (support rod): |
Width(mm): 2.30 3.00 3.30 3.70 |
Note: other specifications available as per request | |
Slot size |
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request. |
Material: |
galvanized low carton (LCG), stainless steel (304,316 etc.) |
Length |
up to 6 meters. |
Diameter |
from 25mm to 1200mm. |
End connection |
Plain beveled ends, flanged or threaded couplings |

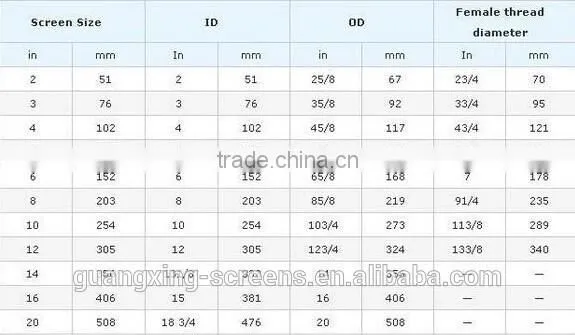

Stainless steel well screen dimension:
Advantages:
Non-clogging capabilities
Self supporting
High abreaction resistance
Large open area
Better sand filtration
Energy saving
Lowest possible cost
Long using life
Maximum flow capacity
1.Single with bubble bags and then in wooden case 2.Customized package is available
Hengshui guangxing screens co.,ltd founded in 2010,is a major manufacturer and supplier of vee wire welded products for professional end-users in the world.It is equipped with modern machines and latest technology for the manufacture of high quality welded wedge wire screens in various shapes and size .We have been recongnized for our excellence in customer solutions creativity flexibility and no nonsense mentality coupled with short delivery time and competitive price.We keep the quality according to the ISO 9001:2008 standard to let the customers satisfy.High quality and competitive price and delivering on time is our aim.We believe that we will contribute to world prosperity by establishing bridges between our country and the global world.If you have interested in our wedge wire prodducts,please contact us.
