stainless steel water well screen johnson type screen
- 500 Meter / Meters per Month
- tianjin
- T/T
Product Details
Place of Origin: | Hebei, China | Brand Name: | HAIXING | Usage: | Liquid Filter |
Type: | Filter Cylinder | Material: | Other, stainless steel | Hole Shape: | Other, V-wire |
Length: | 1000mm--6000mm |
Product Description
Stainless steel well screen shall be manufactured by spirally winding wedge shaped stainless steel wire over a frame of straight stainless steel wires parallel to the axis of the screen.The wedge wire shall be securely welded on the frame and fusion welded at every intersection.The ends of the frames shall be securely welded on the inner ends of each coupling adapter.
Nominal diameter and standard length of the screen
Open area of the screen (percent) and slot size
Collapse strength of the screen
Tensile strength of the screen
Details of the coupling connection including thread measurement
Number and size of supporting rod and shape and size of wedge wire
Stainless steel accoring to ASTM standard
All materials shall be new and of the specified standard
Submit certified copy of pre-shipment inspection done by the world recognized inspection and factory test report signed by chief inspector of the manufacturer.

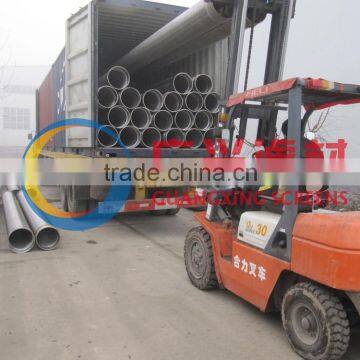

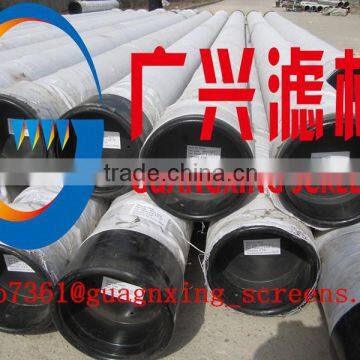

Eliminate all possible damage to the materials during transit and handing with special care to screen sections and threaded portion of the materials.Thread protecting cap must be provided for protecting threaded of each screen
Specification (wedge wire ) | Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 |
Specification (support rod): | Width(mm): 2.30 3.00 3.30 3.70 |
Note: other specifications available as per request | |
Slot size | 0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request. |
Material: | galvanized low carton (LCG), stainless steel (304,316 etc.) |
Length | up to 6 meters. |
Diameter | from 25mm to 1200mm. |
End connection | Plain beveled ends, flanged or threaded couplings |
Stainless steel well screen dimension:
