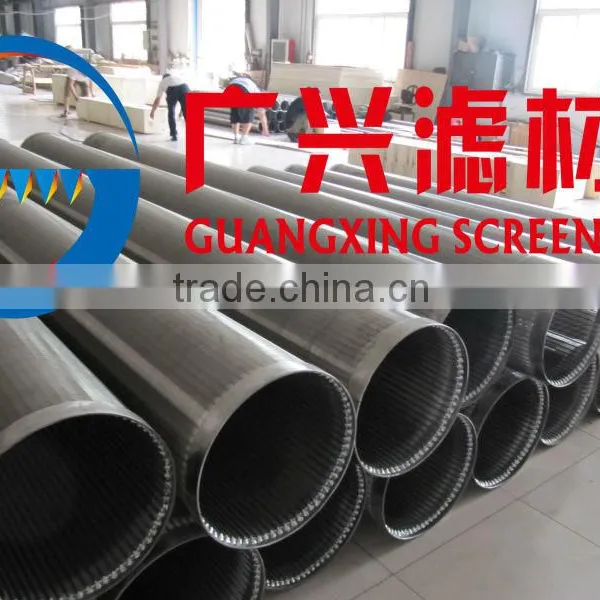

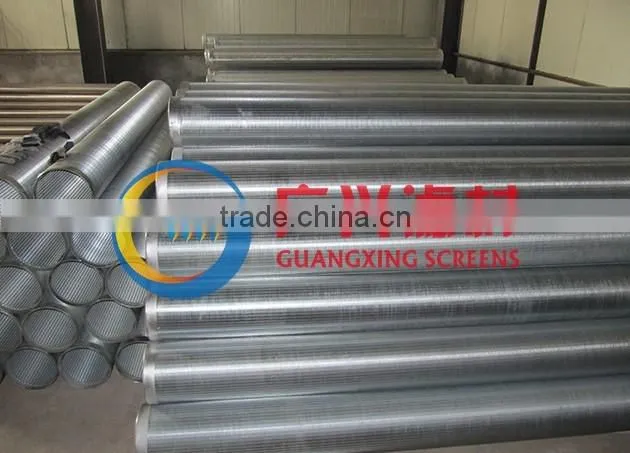

Well screens are manufactured with V-shaped profile wire which is spirally wound around a cage of longitudinal support rods. Each intersecting point of these wire is fusion welded. The pitch of winding gives different spacing between two adjacent turns of wire.This spacing gives passage for water to enter.The entire process is completed on fully computerized machines.
Well Screen | ||
Specification (Profile wire): |
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 |
|
Specification (support rods): |
Width(mm): 2.30 3.00 3.30 3.70 |
|
Note: other wires and rods available upon request | ||
Slot size |
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request. |
|
Material: |
Low carton, low carton galvanized steel (LCG), stainless steel (304,316 etc.) |
|
Length |
2.9 meters,3 meters,5.8 meters,6 meters. |
|
Diameter |
1 1/2",2",2 1/2",3",3 1/2",4",6",7",8",9 5/8",10",12",133/8",14",16" |
|
Screen end |

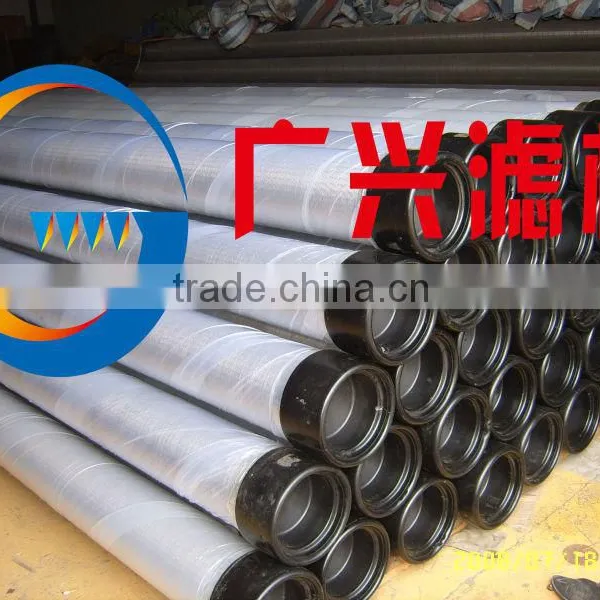

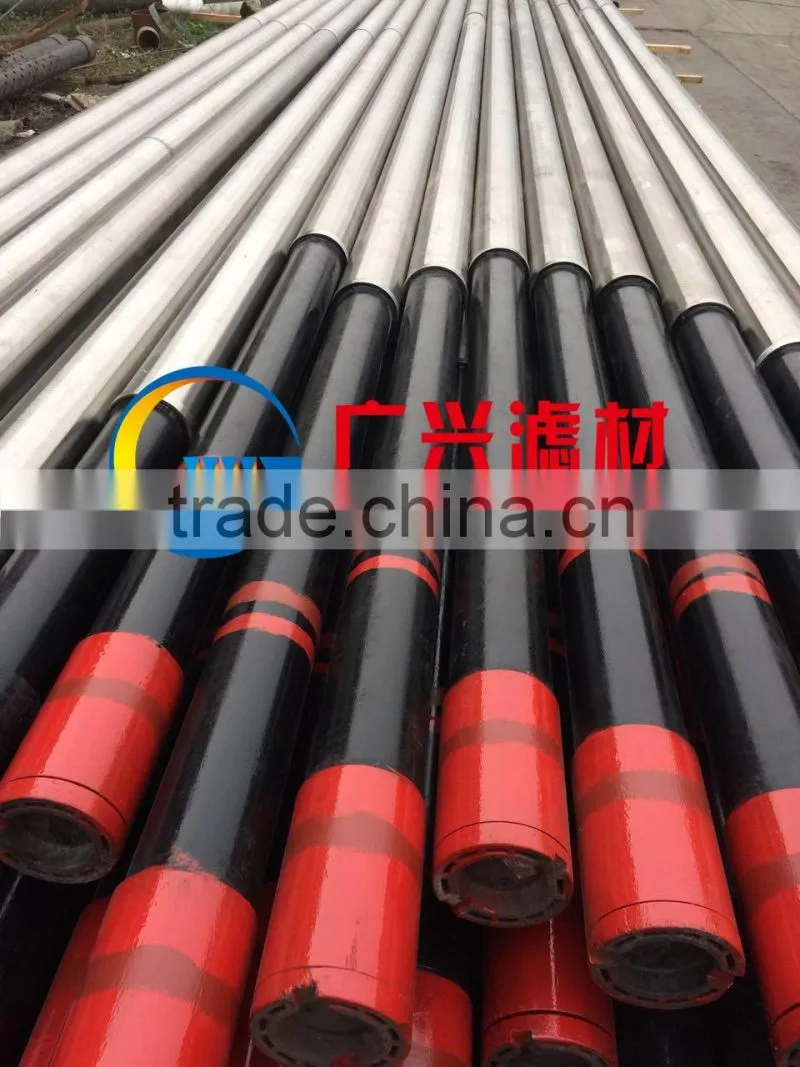

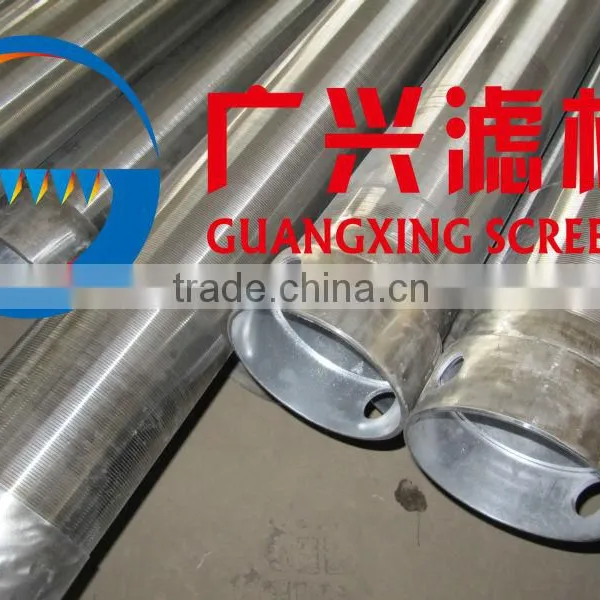

Plain beveled ends for butt welding or threaded |
|
|
Other sizes available on request .Deep well construction specifications available on question. Well depths :100 m, 200 m, 350 m & 600 m. | ||
|
Advantage
|
Reduce energy consumption and increase water flow. Reduce erosion of entry surfaces and increase well life. Allow a uniform and efficient well development. Reduce significantly potential pump damage and subsequent maintenance costs. |
|
