Specifications
* H.264* Support Live View via Smart Phone & 3G Mobile
* NTSC / PAL
* Linux Based OS
* One Year Warranty

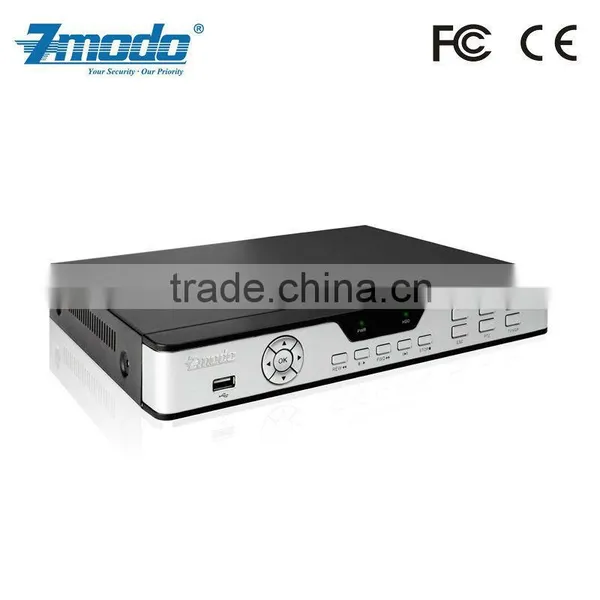

The ZMD-DD-SBN8 is an 8 channel, fully integrated, real time, hardware-based digital video recorder. This standalone DVR is based on an embedded Linux operating system and includes a remote control for easy setup and operation. With Pan/Tilt/Zoom (PTZ) camera control, network access and USB2.0 backup, this DVR is perfect for the home or small business.
The DVR uses the latest in compression technology, H.264, to be able to record amazing quality video without using up a large amount of storage space. The H.264 compression allows crisper, cleaner images to be recorded and iscapable of weeks of recording on motion detection mode. A variety of recording modes are supported by this DVR. These include scheduled recording, motion detected recording, continuous recording, or a combination of any modes. In addition, this DVR supports the Remote View via smartphone and 3G mobile technology!
DVR supports Remote View via smartphone & 3G Mobile with each of those systems :
a)Android™ ;
b)iPhone® & iPad® IOS;
c)Symbian™ ;
d)Windows Mobile® .
| Model | ZMD-DD-SBN8 - 8CH H.264 StandAlone DVR |
| Video Compression | H.264 |
| Video System | NTSC / PAL |
| Operation System | Linux Based |

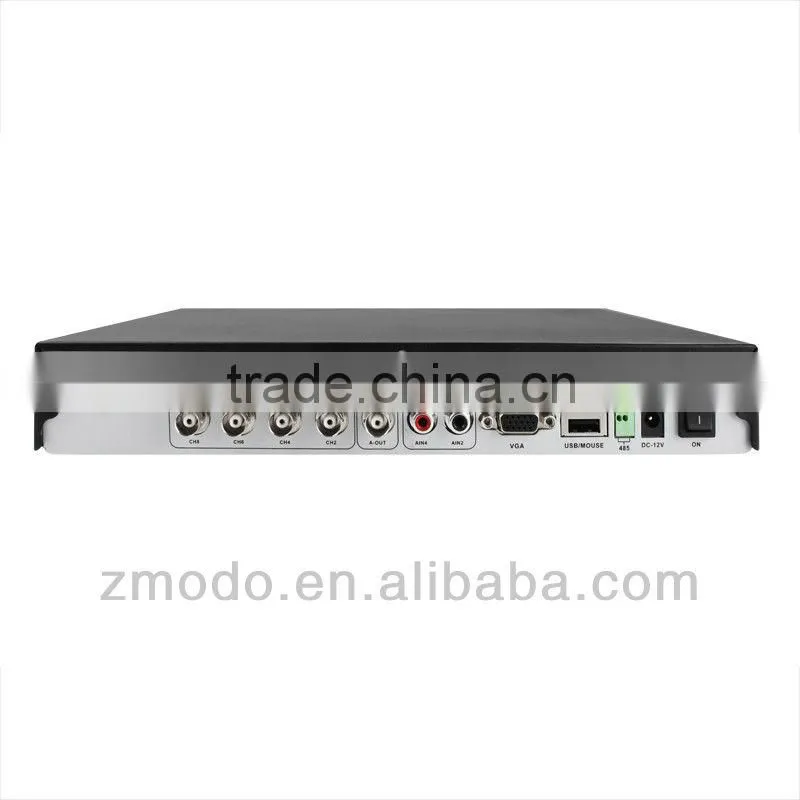

| Video Input / Output | BNC 8-Channel Input / BNC1-Channel Output |
| Other Video Output | VGA |
| Audio Input / Output | RCA 4-Channel Input / BNC 1-Channel Output |
| Display Frame Rate | NTSC: 240 fps @ D1 / PAL: 200 fps @ D1 |
| Display Resolution | NTSC: D1 (704 x 480)/ PAL: D1 (704 x 576) |
| Recording Frame Rate | NTSC: 240 fps @ CIF / PAL: 200 fps @ CIF |
| Record Resolution | Selectable: NTSC: D1(704 x 480); HD1(704 x 240); CIF (352 x 240) / PAL: D1(704 x 576); HD1(704 x 288); CIF (352 x 288) |
| Record Mode | Continuous / Time Schedule / Motion Detection |
| Network Function | Support Live View with IE & Mobile Phone |
| Network | RJ45, 10M/100M |
| Net Protocol | TCP/IP, PPPoE, DHCP and DDNS |
| Remote Access | LAN or Internet Browsing |
| PTZ Control | RS-485 |
| HDD Interface | SATA, Support between 250GB and 2TB |
| USB | USB Backup/USB 2.0 |
| Remote Control | IR Remote Control |
| Power Supply | 12V/3A DC |
| Power Consumption | IR on Max 1200mA |
| Dimension | 12.8 "(W) x 10.4" (D) x 3.9"(H) |
