Specifications
* 8ch DVR* Linux Based OS
* H.264 Compression
* Supports iPhone & Android,Network
* One Year Warranty

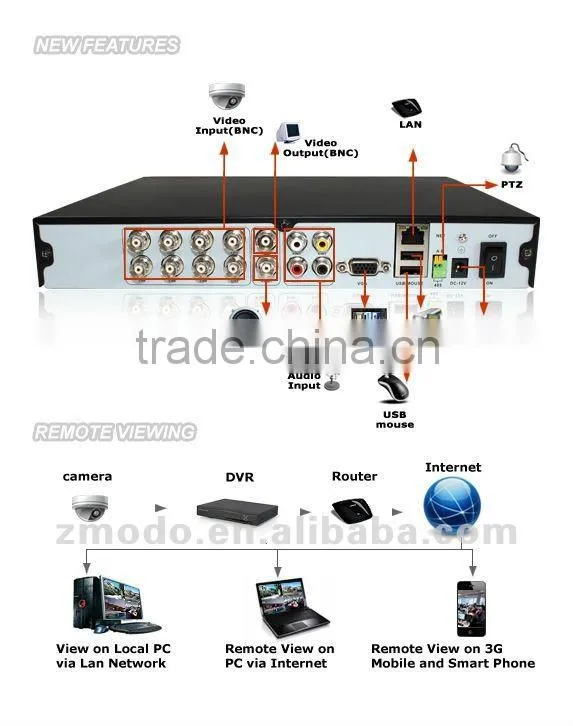

This 8 channel 3G Mobile DVR Recorder is a fully integrated, real time, and hardware based standalone digital video recorder. This standalone 3G mobile DVR is based on an embedded Linux operating system and includes a remote control for easy setup and operation.With Pan/Tilt/Zoom (PTZ) camera control, network access and USB2.0 backup, this 8 channel security DVR is perfect for the home or small business.
With the latest compression technology, H.264, the 3G mobile DVR is able to record amazing quality video without using up a large amount of storage space. The H.264 compression allows crisper, cleaner images to be recorded and still be capable of weeks of recording on motion detection mode. In addition, this 8 channel security 3G mobile DVR supports the remote preview Live!
DVR Features
·Display Mode: Each/All/Auto Switch/Hidden
·Playback Search: Time & Date, Event List
·Network: RJ45 TCP/IP or DDNS
·Remote Access: LAN or IE Browser
·Support Live! Preview via 3G Mobile
·Plug-n-Play
* Support Remote View via Smart Phone & 3G Mobile:
a) iPhone™
b) Google Android™
c) Blackberry™ OS V4.6
d) Windows Mobile™ Pro 5.0 & 6.1
e) Symbian™ S60 3rd & S60 5th
| Model | ZMD-DD-SAN8 -StandAlone 3G mobile DVR Recorder |
| Video Compression | H.264 |
| Video System | NTSC / PAL |
| Operation System | Linux Based |

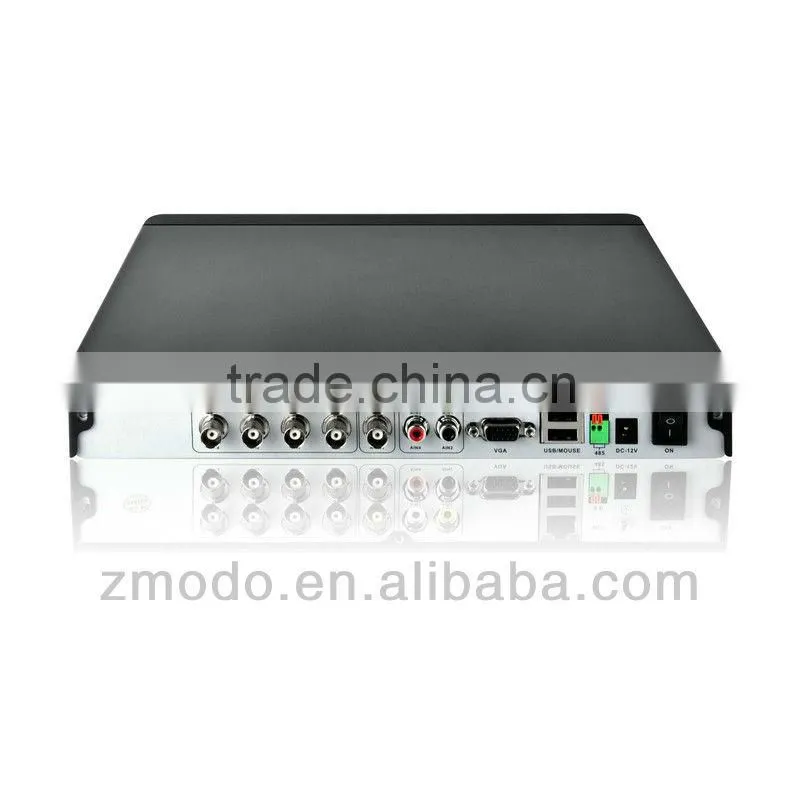

| Video Input / Output | BNC 8-Channel Input / 1-Channel Output |
| Other Video Output | VGA |
| Audio Input / Output | RCA 4-Channel Input / 1-Channel Output |
| Display Frame Rate | NTSC: 240 fps @ D1 / PAL: 200 fps @ D1 |
| Display Resolution | NTSC: D1 (704 x 480)/ PAL: D1 (704 x 576) |
| Recording Frame Rate | NTSC: 240 fps @D1 / PAL: 200 fps @D1 |
| Record Resolution | Selectable: NTSC: D1(704 x 480); HD1(704 x 240); CIF (352 x 240) / PAL: D1(704 x 576); HD1(704 x 288); CIF (352 x 288) |
| Record Mode | Continuous / Time Schedule / Motion Detection |
| Recording Pack Time | 15/30/45/60mins Selectable |
| Network | RJ45, 10M/100M |
| Net Protocol | TCP/IP, PPPoE, DHCP and DDNS |
| Remote Access | LAN or Internet Browsing |
| PTZ Control | RS-485 |
| HDD Interface | SATA, Support up to 2TB |
| USB | USB Backup / USB 2.0 |
| Remote Control | IR Remote Control |
| Power Supply | DC12V, 3A |
| Dimension | 290mm (W) x 230mm (D) x 42mm (H) |
