Home > Products > Security Cameras > Zmodo IR Varifocal Sony CCD Waterproof Camera

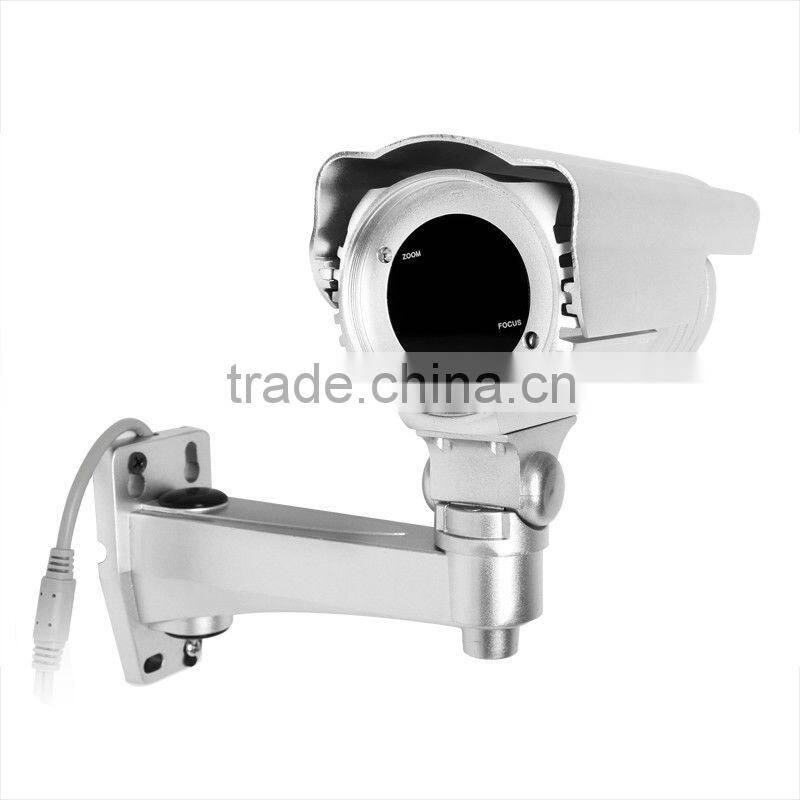

Zmodo IR Varifocal Sony CCD Waterproof Camera
- Shenzhen
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | ZMODO | |
| Model Number | CM-S23349SV | Type | Analog Camera | |
| Style | Bullet Camera | Sensor | Other, CCD, 1/3" Sony Color CCD | |
| Technology | Infrared | Special Features | Other, Weatherproof and Vari-focal |
Product Description
Specifications
* Waterproof,varifocal* Up to 100' (30m) IR
1/3" SONY Color CCD
* 36 LEDs
* One Year Warranty
1/3" SONY Color CCD 420 TVL & 4-9 mm Vari-Focal lens &36 IR LEDs 100ft Night Vision & Weatherproof Housing & Auto Iris Auto Back Light Compensation
Vari-focal lens, weatherproof, long range night vision, all these industry-leading features are built in this one camera, which make it really a cost-efficient choice for video security applications. The camera can zoom from 4mm lens to 9mm lens to provide you high quality picture with a closer view or a wider angle. Weatherproof housing and 36 IR LEDs enable this camera to work day and time, indoor or outdoor, perfect for home and business security.

High quality 1/3" Sony CCD image sensor provides a crisp, clear and consistent image utilizing 420 TV lines of resolution. The camera delivers true color image with no color variation.

36 infrared (IR) LEDs activate automatically in low-light or no-light situations to allow you to see up to 30 meters (100feet) away, and deactivate once lighting conditions are brighter.

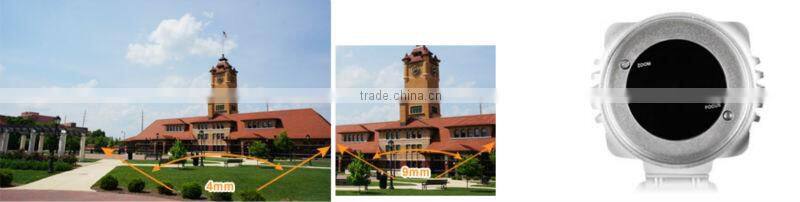

4-9mm Vari-Focal Lens

Each camera is constructed utilizing professional grade materials for the housing and a sunshade to help prevent glare, deterioration, and rusting. The cameras can be mounted in virtually any indoor or outdoor setting.
Auto Iris & Auto White Balance & Auto Back Light Compensation



| Model | CM-S23349SV - Vari-focal Outdoor IR Color Camera |
| Image Sensor | 1/3" SONY Color CCD |
| TV System | NTSC / PAL |
| Effective Pixels | NTSC: 512 (H) x 492 (V) / PAL: 512 (H) x 582 (V) |
| Horizontal Resolution | 420 TV-Lines |
| Scanning System | 2:1 Interlace |
| Number of IR LEDs | 36 |
| Minimum Illumination | IR on 0 Lux |
| Infrared Illumination (Night Vision) | Visible up to 100ft (30m) |
| Synchronization System | Internal Synchronization |
| S/N Ratio | > 48dB |
| Gamma | 0.45 |
| Auto Gain Control | Built-in |
| Lens Mount | Vari-Focal Lens: 4mm ~ 9mm |
| Operating Temperature | 14°F~122°F / -10°C ~50°C |
| Weatherproof | Yes |
| Power | 12V DC |
| Video Out | 1.0V p-p 75O, BNC Connector |
| Auto Iris | Video / DC |
| Back Light Comp | Auto |
| Auto White Balance | Auto |
| Dimensions (W x D x H) | 6.1" x 3.5" x 3.5" |
| Weight | 2.05lbs |
| Material | Aluminum Alloy |
