ZMODO 4CH NVR Outdoor Wifi IP Camera Wireless Set

FOB Price

Negotiable / Set

50 Sets(Min.Order)

Supply Ability 300000 Set / Sets per Month
Port Shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	ZMODO
Model Number	ZP-KB0I04-W

Product Description

Specifications

* USB Flash Disk, Removable HDD
* 1 SATA HD, Support up to 2TB
* Motion Detection
* One Year Warranty

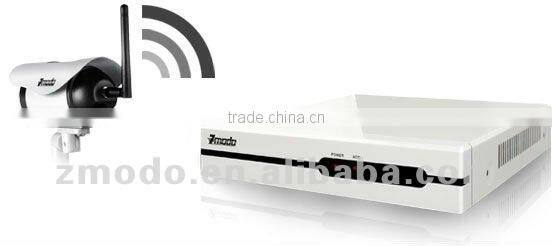

4 CH Network Video Security System with 4 Indoor/Outdoor Wireless IP Cameras with Night Vision

This wireless NVR surveillance system provides everything you need to defend your home or business, safeguard your loved ones and deter intruders. With four indoor/outdoor wireless IP cameras included in the package, simply plug into a power source and start viewing with this no hassle, fast and easy video monitoring and recording system for your home. No more need for video & audio cables, it's really plug-n-play.

Perfect Wireless Solution

No video/audio cables are needed for this wireless NVR enjoy the convenience of wireless. system, free yourself from long video audio wires and enjoy the convenience of wireless.

Quick and Easy Application

As there are not so much accessories such as long cables to check, ZMD-NV-SBN4 can be replaced, repaired and upgraded in a matter of minutes.

Huge Cost Savings

Installation costs of the NVR systems can be significantly lower than comparable analog based cabling installations.

Automatic Connection with IP Cameras

Once start the system, ZMD-NV-SBN4 will automatically begins searching for the IP Cameras. Up to four IP Cameras that first searched out will be added to the NVR automatically.

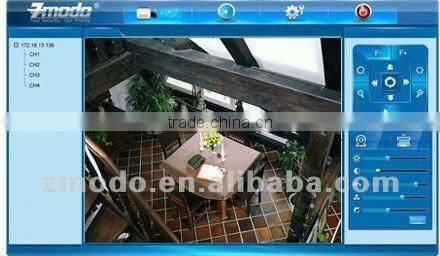

Remote Viewing on PC & 3G Smart Phones

Keep an eye on what goes on in and around your home with our wireless video surveillance system, either from home or away from anywhere in the world. View live video streams directly from your supported PC or 3G Smartphone running iPhone® 4.3 up, Android™ 2.2 up.

Safety Transmission & Monitoring

Under a private network transfer protocol, this network video recorder ensures security during video transmission and network remote monitoring of your cameras.

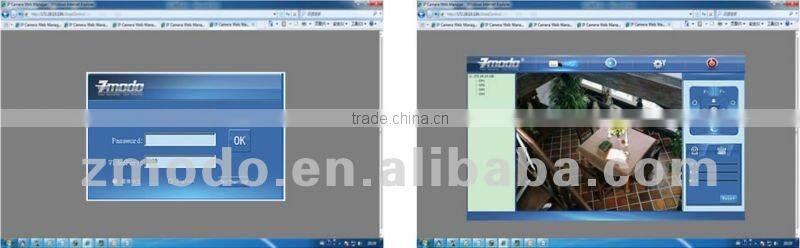

Super Convenient Control via IE Browser

Via IE browser, nearly most of the actions can be implemented including real-time preview, download and playback video footage, configurate NVR parameter, even upgrade the devices.

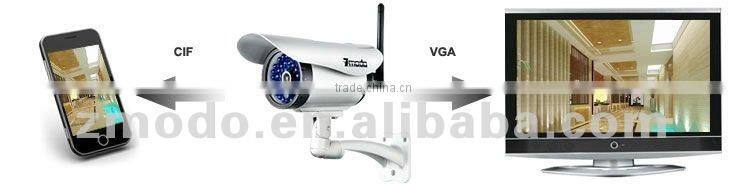

VGA and CIF Dual Stream Video Quality Selectable

Dual Stream Network Transmission allows the IP Camera to transmit steady fluid image and higher resolution video.

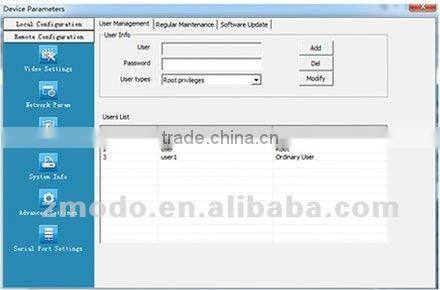

Multi-user Management of IP Cameras

With up to 15 users under admin, User management can manage the authority of each channel. Only admin user has the highest authority to add/delete/manage other users. With no authority, user cannot receive the video image.

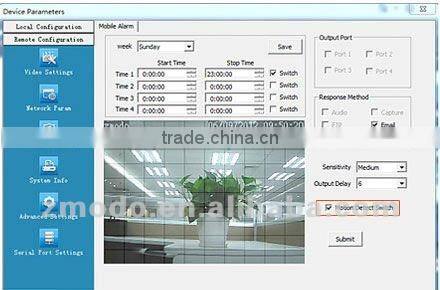

Advanced Motion Detection Setting of IP Cameras

The motion detection switches allow you to set the motion detection "mask" to block areas with constant movement.

Instant Email Alerts if Alarm is triggered

This system is designed to send an email alert, complete with photo of the activity, if alarm is triggered, or if it experiences exception such as hard disk error or no space.

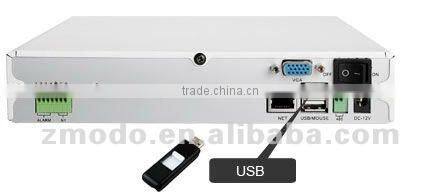

Easy USB Backup

Built-in USB port provides an easy option to transfer your files to a PC, backup, or send to others.

Intuitive User Interface

The intuitive operating system of the ZMD-NV-SBN4 is designed with the end user in mind. The menu is easily navigated with point and click menus utilizing the included mouse or remote.

Pentaplex – Live Preview, Record, Playback, Backup & Remote Preview

The multi-tasking feature allows up to five functions to occur on the system at one time: record video, watch live video, playback video while also monitoring and managing the system remotely, and also backing up files.

4x Weatherproof Wireless IP Cameras

Four wireless IP network cameras are included in the package. Each camera is constructed utilizing professional grade materials for the housing and a sunshade to help prevent glare, deterioration, and rusting. The cameras can be mounted almost anywhere indoors & outdoors.

View at Night up to 80'

35 infrared (IR) LEDs activate automatically in low-light or no-light situations to allow you to see up to 80' away, and deactivate once lighting conditions are brighter.

Model	ZMD-NV-SBN4 -4 CH Standalone NVR
Video System	NTSC
Operation System	Linux Based
Video Output	VGA
Display Frame Rate	NTSC: 120fps @ CIF/ PAL: 100 fps @ CIF NTSC: 30fps @ 720P/ PAL: 25 fps @ 720P
Display Resolution	NTSC: 120fps @ CIF/ PAL: 100 fps @ CIF NTSC: 30fps @ 720P/ PAL: 25 fps @ 720P
Recording Frame Rate	NTSC: 120fps @ 720P/ PAL: 100 fps @ 720P
Record Resolution	NTSC: 120fps @ 720P/ PAL: 100 fps @ 720P
Record Mode	Manual / Time Scheduled / Motion Detection / Alarm Triggered
Playback Mode	Normal Play /Fast Forward /Fast Rewind/Slow Play
Network Function	Real-time Preview, Record, Playback, Download, NVR Setting, Upgrade, PTZ control, Mobile & Email Function etc
Network Interface	RJ45, 10M/100M
Net Protocol	TCP/IP, UDP, SMTP, DHCP, DNNS, PPPoE
3G Mobile	Support mobile phone based on Android 2.1 ~ 2.3, Symbian V3&V5, windows mobile5.5&6.1, ipad ios 5&iphone, BlackBerry 7
Mobile Fuction	1 Channel Viewer / Channel Switch / Control PTZ
PTZ Control	NET
Alarm Mode	Trigger Record, Video Zoom in, FTP & Email Alert, Audio Output, Alarm output
Sensor/Alarm	4 CH Sensor Inputs / 1 CH Alarm Output
HDD Interface	1 SATA HD, Support up to 2TB
USB Interface	USB 2.0, USB Backup, Mouse
Backup	USB Flash Disk, Removable HDD, SATA HD, USB CD/DVD-ROM
Remote Control	IR Remote Control
Remote Access	LAN or Internet Browsing
Dimension	12.8"10.4"3.9"
Connection with IP Camera	Automatically search and connect IP cameras within LAN
Power Supply	DC12V, 3A
Gross Weight	5.65lbs

Model	ZMD-ISV-BFS23NM - Wireless Network IP Camera
Image Sensor	1/4" Color CMOS Sensor
Video Compression	H.264
Resolution	VGA(640480), CIF(320240)
Video/Picture Adjustment	Brightness, Contrast, Chroma, Saturation
Lens	3.6mm
Mini. Illumination	0.1Lux / F 1.2
S/N Ratio	>48DB (AGC Off)
Shutter Speed	Auto
White Balance	Auto
Backlight Balance	Auto
Infrared Light	35 IR LEDs, Night visibility up to 80'
Network Interface	RJ45 10/100M self-adaptive
Network Protocol	PPPOE, IP/TCP/UDP, DNS/DDNS, SMTP etc.
User Management	Multi-lever User Management, Support Up to 15 User
Wireless	WIFI, 802.11 b/g
IP Mode	Dynamic IP address, Static IP Address, PPPOE
Intelligent Motion Detection	Motion Detection Setting
Alarm Action	Support report to alarm / E-mail
Weatherproof	Yes
Power Supply	DC 12V/1A
Operate Temperature	14°F ~ 122°F
Supported OS	Microsoft Win98 SE/ME/2000/XP/Vista/win7, Internet Explorer 6.0/7.0/8.0
Supported Mobile Phone OS	Android™ 2.2 up, Iphone® 4.3 up
Color	Lacte
Material	Aluminum Alloys
Dimensions	7.99"2.55"7.48"
NET WEIGHT	1.37lbs
