Specifications
* 720p HD Videos* Power Over Ethernet(POE) ports
* H.264
* One Year Warranty

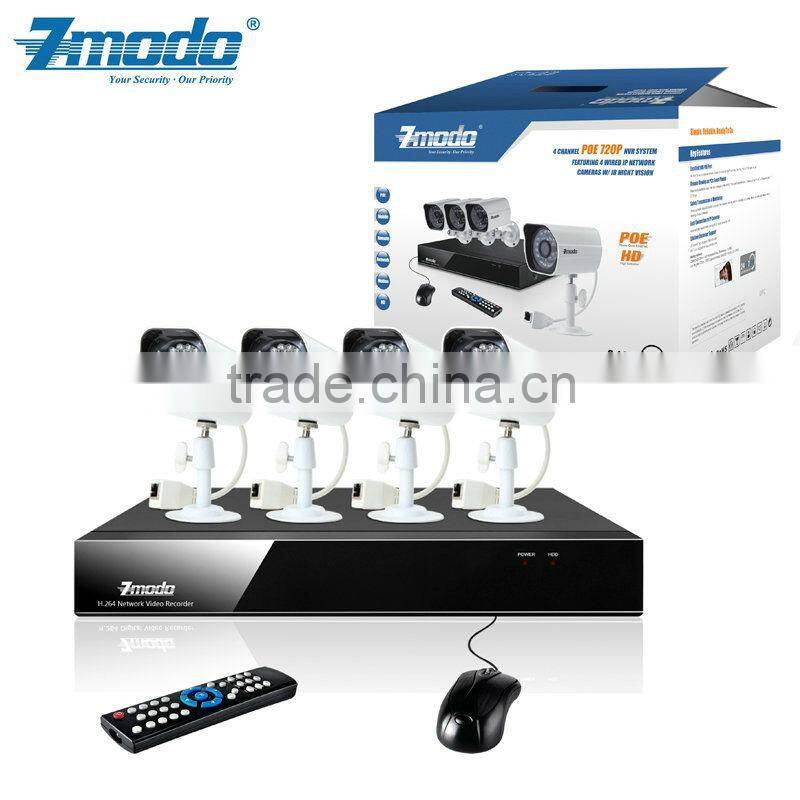

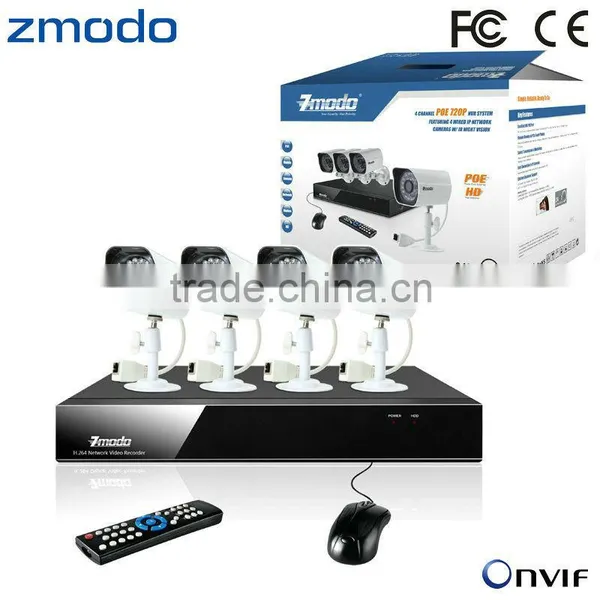

4 Channel 720P Network Video Recorder w/PoE Power Switch &4 Indoor Outdoor HD Network IP Cameras
Now Monitor your home or business with levels of clarity and details never before this 4 channel complete POE NVR system. Just activate the power of the NVR, power of PoE, plug into the four PoE ports, the recorder will start recording right away, and no need other power devices. Power over Ethernet technology makes power to a lot of saving and more stable pure digital video streaming.

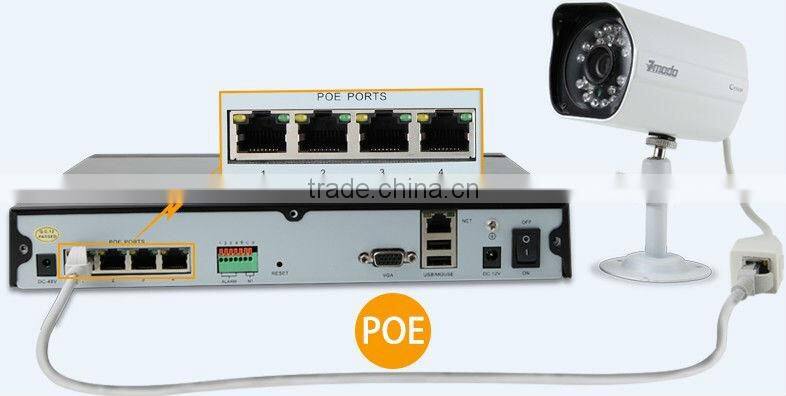

Power and Video via One Cable(POE)
Did you know that you can power your IP cameras through your NVR? It's true! If you have an NVR wired directly to your router, there is no need to run a separate power cord!With four Power Over Ethernet(POE) ports, the same network cable can deliver not only video but also power from each IP camera to the network video recorder. No need to run separate power cable or power equipment.
720p HD Videos
With three times the resolution of standard analog video, the 720p NVR allows you to record more of the scene without losing any detail. The megapixel cameras included in this pure digital recorder kits can see more of the room than standard analog security cameras, which will help you save money by installing fewer cameras and still monitoring the entire scene.
Watch Your Home or Business From Anywhere with Zviewer
This system allows you to view your footage, no matter the time or location. Access your DVR’s footage over the internet, or directly from your Android™, or iPhone® smartphone. or your PC.

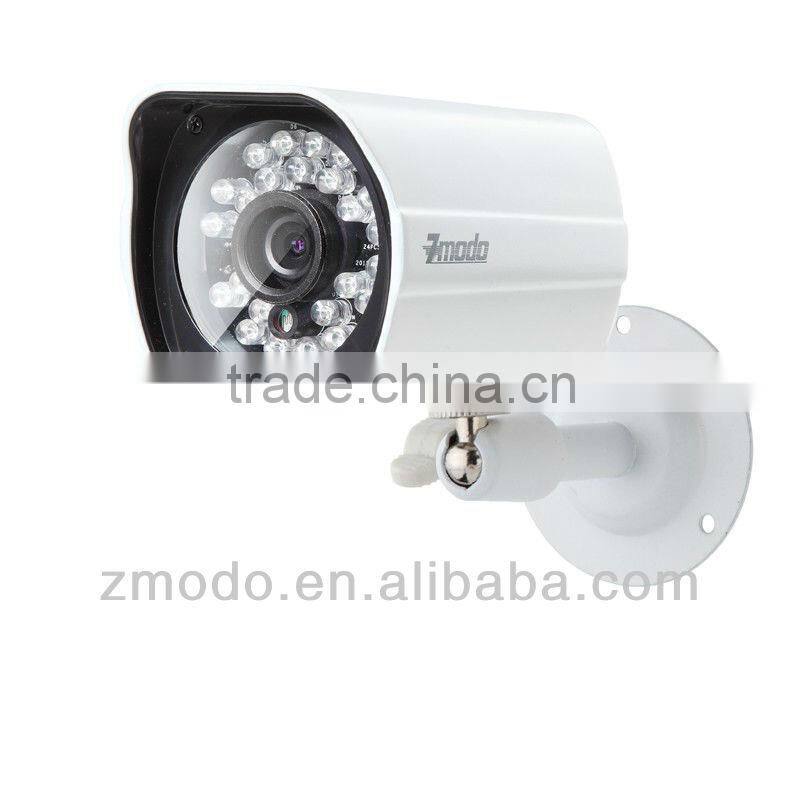

See Clearer No matter Day or Night w/IR Cut Filter
24 infrared (IR) LEDs activate automatically in low-light or no-light situations to allow you to see up to 65' away, and deactivate once lighting conditions are brighter.The IR-cut in this camera gives superb images in daylight, and excellent IR images at night
Weatherproof Housing Cameras
These IP66-rated cameras can withstand extreme wind, dust, and rain. These cameras are suitable for outdoor use, even in rugged climates.
MORE FEATURES
H.264 Compression
Minimizes file size in order to maximize the recording time, efficiently store as well as transfer video smoothly for viewing over the internet.
Wall or Ceiling Mounting
With the bracket attached to the camera, it can be installed virtually anywhere inside the house, ideal for walls, or ceilings where it can discreetly monitor your home and beloved.
Stay Informed with Email Alert when Motion Detected
Motion automatically triggers video recording and can be set up to send notifications to your e-mail or mobile phone, keeping you notified on your phone and email of what goes on while you're away.
720P and QVGA Dual Stream Video Quality Selectable
Dual Stream Network Transmission allows the Cameras to transmit steady fluid image and higher resolution video.
Navigation Menus
Use-friendly interface, along with the accompanying mouse and remote, make moving through the menus a breeze.
ZP-NC14-P | |
|---|---|
| Video Input/Output | |
| IP video input | 4 channel IP camera inputs |
| VGA output | 1 channel |
| CVBS output | Nonsupport |
| HDMI output | Nonsupport |
| Recording resolution | 720P |
| Compression | H.264 |
| Record rate | 120fps |
| Multi screen display | 1024×768@60Hz, 1280×1024@60Hz |
| Record Mode | Manual / Time Scheduled / Alarm Triggered / Motion Detect |
| Playback | Fast forward / Rewind /Slow Play |
| Audio Input/Output | |
|---|---|
| Audio compression | Nonsupport |
| Audio output | Nonsupport |
| Hard Disk Drive | |
|---|---|
| Interface type | 1 SATA (3.5") |
| Capacity | Up to 2TB |
| External Interface | |
|---|---|
| Network interface | 1 RJ45 10M/100M self-adaption & 4 independent 10/100 Mbps ethernet interfaces |
| USB interface | 2 USB 2.0 interfaces |
| Serial interface | 1 RS-485 interface |
| Alarm inputs/output | 4 channel sensor inputs / 1 channel alarm output |
| General | |
|---|---|
| Application support | Remote configuration, video browse, local recording, local and remote playback |
| Motion detection | Yes |
| Protocol support | TCP/IP,UDP,UPNP,DHCP,DNS/DDNS,SMTP,HTTP,FTP,etc. |
| Alarm | Support remote notification |
| Operating system | Linux based |
| Smart phone | iOS 4.3 up,Android 2.2 up |
| Power supply | DC12V, 3A |
| POE ports | 4 |
| POE input voltage | DC48V,1A |
| Power consumption | <12W(Without hard disks) |
| Operating temperature | −10 °C to 50 °C |
| Dimensions | 290 × 230 × 42mm (11.4" × 9.1" × 1.7") |
| Weight | 2.29lbs |
| Language | 11 languages |
ZH-IBH13-P | |
|---|---|
| Camera | |
| Image sensor | 1/3" color CMOS sensor |
| Min. illumination | 0.1Lux(IR LED On) / F 1.2 |
| Shutter speed | Auto |
| Lens | 3.6mm |
| Angle of view | 77 degree |
| Day & night | Electronic(IR-CUT filter with auto switch) |
| Compression Standard | |
|---|---|
| Video compression | H.264 |
| Bit rate | 16Kbps~2Mbps |
| Dual stream | Yes |
| Image | |
|---|---|
| Image resolution | 720P(1280*720),VGA(640*480),QVGA(320*240) |
| Frame rate | 30fps |
| White balance | Auto |
| Backlight balance | Auto |
| Image setting | Brightness, contrast, chroma, saturation |
| Network | |
|---|---|
| Alarm trigger | Intelligent motion detection |
| Alarm action | E-mail notification,video record,snapshot,upload to NVR |
| Network protocols | TCP/IP, UDP, DNS/DDNS, SMTP, UPNP,DHCP, HTTP, FTP, etc. |
| ONVIF | ONVIF Ver.2.0 |
| Wireless | Nonsupport |
| Supported OS | Microsoft Win98 SE/ME/2000/XP/Vista/win7,Internet Explorer 6.0/7.0/8.0/9.0 |
| Supported mobile phone OS | Android 2.2 up, iOS 4.3 up |
| Security | User authentication, software encryption |
| Interface | |
|---|---|
| Communication interface | RJ45 10/100M self-adaptive |
| On-board storage | Built-in TF slot,up to 64GB |
| General | |
|---|---|
| User management | Multi-lever user management,support up to 16 users |
| Weather proof | IP65 |
| WDR | Nonsupport |
| Operating temperature | −10 °C to 50 °C |
| Color / Material | White / Aluminum |
| Power supply | PoE |
| Power consumption | 3W~5W |
| IR distance | Night visibility up to 25m |
| Dimensions | 66 × 60 × 99mm (2.6" × 2.4" × 3.9") |
| Weight | 1.14lbs |
