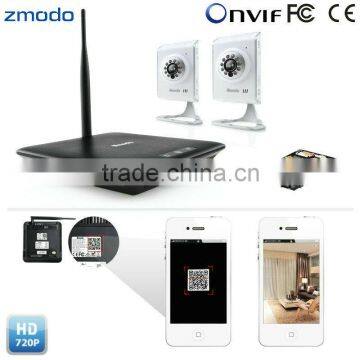

Zmodo Mini NVR 720P Wifi IP Camera Home Security Systems Wifi
- 300000 Set / Sets per Month
- Shenzhen
- T/T Credit Card
You May Like
-
Zmodo 720P NVR POE IP Long Range Wireless CCTV Camera System
-
Zmodo IP Camera Mini NVR Wifi Embedded Wireless System
-
Zmodo 4CH POE NVR Outdoor 720P IP Camera Kit
-
Zmodo IP Camera Wifi Embedded Mini NVR Recorder
-
Zmodo 720P IP Camera Waterproof POE 4CH NVR Kit
-
Zmodo Waterproof 720P IP Camera POE 4CH NVR
Product Details
Place of Origin | Guangdong, China | Brand Name | ZMODO | |
Model Number | ZH-KA1A02-WA |
Product Description
Specifications
* QR Code setup* 720P
* Audio Built-in
* H.264
* One Year Warranty
We Make Home Monitoring Simple
With super advanced features and a new designed housing, this mini elite NVR system really makes home monitoring simple! Just out of the box no need configuration such as IP match, the NVR has been automatically connected with the two IP cameras via the included wireless module embedded. Simply plug into a power source and a wireless router , and scan the QR code on the NVR, you will be able to start viewing with this no hassle, fast and easy video monitoring and recording system for your home. No more need for video cables, it's really plug-n-play.

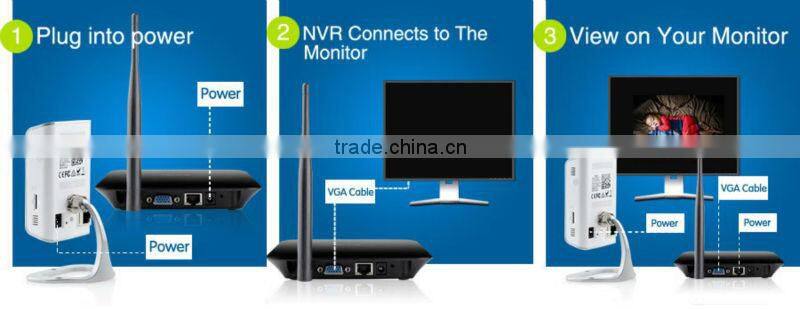

Plug N Play
1. Plug Power into NVR and into the two IP Cameras.

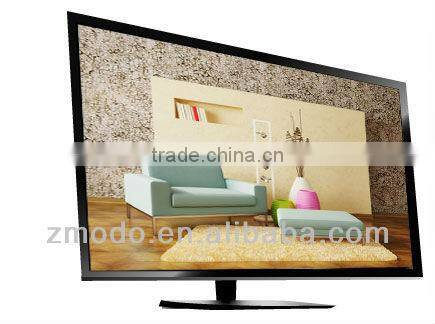

2. Plug VGA cable into the PC monitor.
3.View video on the monitor at home.

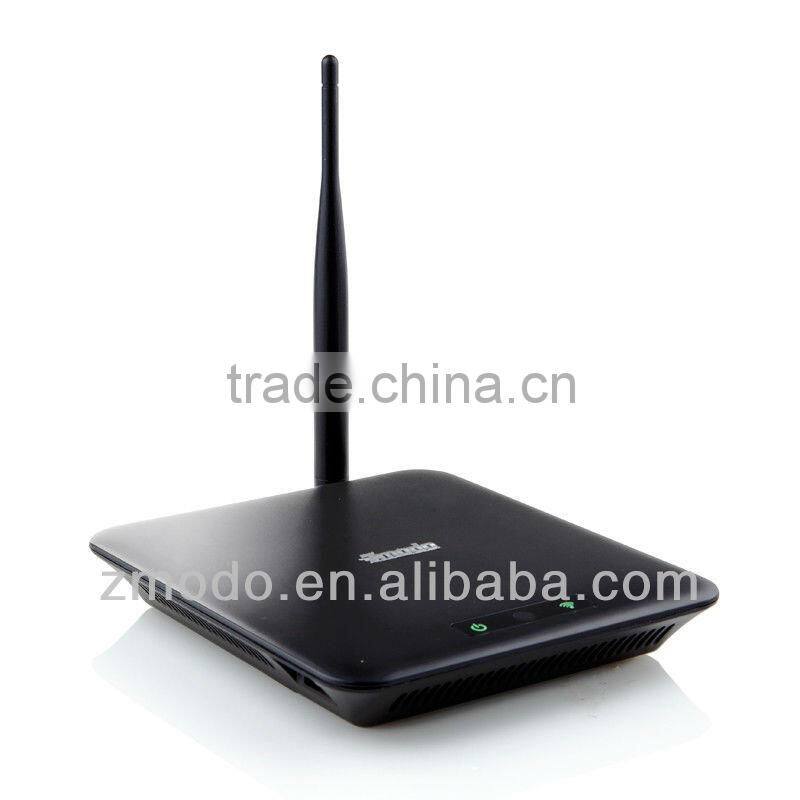

Mini NVR Built-in Wi-Fi Module
Within Built-in WiFi module, this mini NVR communicates wirelessly with the included two IP cameras. When in a vacant area, it can transmit wi-fi signal to a distance up to 160ft.

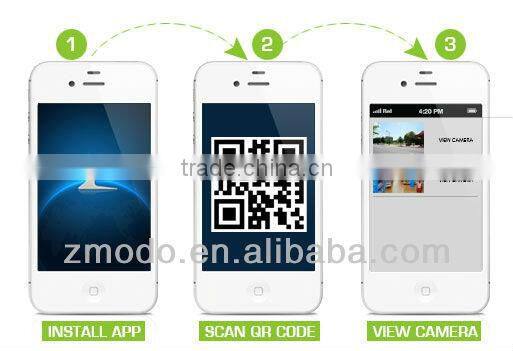

3-Step Setup- Just On-the-go
Thanks to the advanced built-in wifi module inside this mini NVR, the two mini IP cameras have been automatically connected to the NVR. Now for home use, just plug into power, connect NVR to wireless router, then simply scan the QR code on the back of the NVR with your smartphone using the free downloadable Stream App. Never before has it been such a breeze to set-up a wireless NVR system. The QR code acts as the NVR's ID, and once you scan it, you're instantly viewing live video right from your mobile device without the need of a PC!
Compact, Slim Design with Low Profile

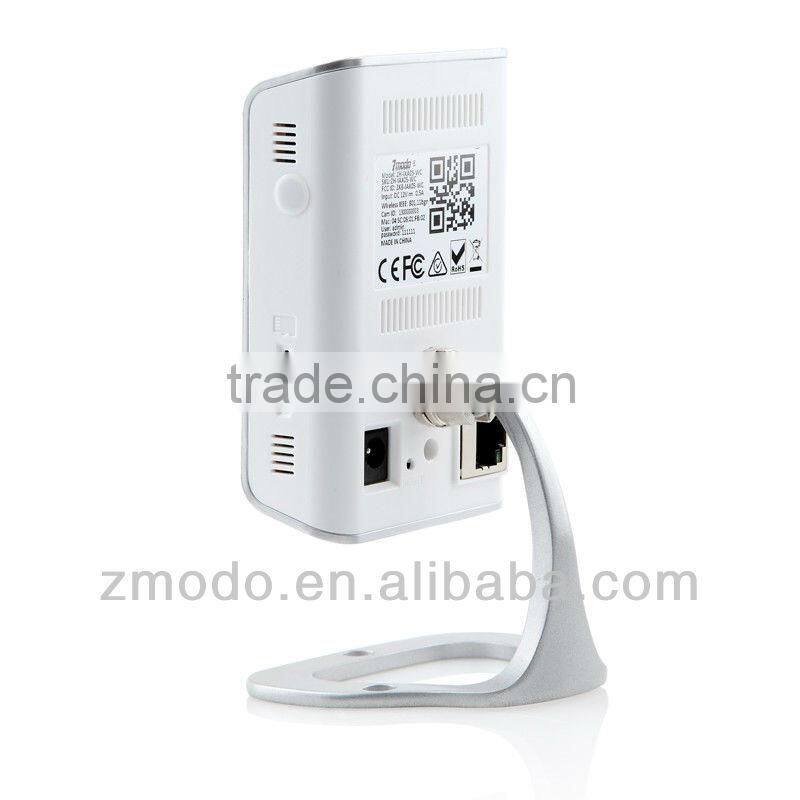

Under the specially designed elite housing, This mini NVR with the 2 mini IP cameras are Easy to fit in interior spaces. With the bracket attached to the camera, it can be installed virtually anywhere inside the house, ideal for walls, tables or ceilings where it can discreetly monitor your home and beloved.
Easy Live View with Free Zmodo Client Software
Run Upgraded Zviewer for PC software, Easy installation and operation to access any time, any where for preview, playback, download & NVR setting.
See More with the 2.8mm Wide Angle Lens
See more area with the wide 90 degree viewing angle on the 2.8mm lens Cameras. Protect larger areas such as driveways, entrances, front and backyards.
24-Hour Surveillance - True Night Vision Technology
Never lose sight of the area you're watching! 10 high quality LEDs allow each camera to see up to 32.8 FT in low light conditions. So you can see in incredibly low lighting levels down to 0.1 lux (almost complete darkness).

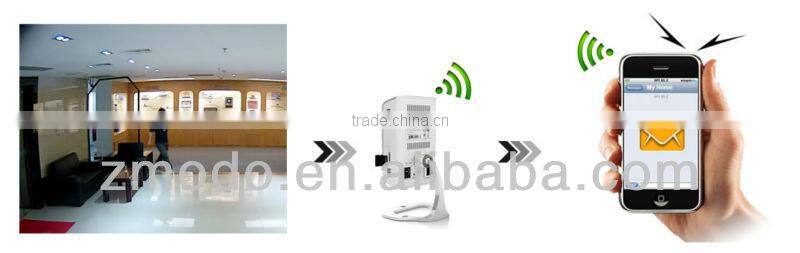

Motion Activated Recording & Instant Email Alert
Camera can send out e-mail alerts with attached still images when motion is detected. You may also setup recording options with NVR or via network configurations in your computer. You can even ensure that false alarms are avoided by setting the motion detection “mask” to block areas with constant movement.
MORE FEATURES
H.264 Compression
Minimizes file size in order to maximize the recording time, efficiently store as well as transfer video smoothly for viewing over the internet.
Auto White Balance
Back Light Compensation
Navigation Menus
Use-friendly interface, along with the accompanying mouse and remote, make moving through the menus a breeze.
Easy USB Backup
Built-in USB port provides an easy option to transfer your files to a PC, backup, or send to others.
Embedded Mini 2.5 Inch Seagate HDD
Unlike other 3.5 inch HDD for normal size NVR or DVR, we apply Professional mini Sata Hard drive for CCTV in this mini NVR.
16 Users Simultaneously Online
With up to 15 users under admin, User management can manage the authority of each channel. Only admin user has the highest authority to add/delete/manage other users. With no authority, user cannot receive the video image.
ZH-NA14-W | |
---|---|
Video Input/Output | |
IP video input | 4 channel IP camera inputs |
VGA output | 1 channel |
CVBS output | Nonsupport |
HDMI output | Nonsupport |
Recording resolution | 720P |
Compression | H.264 |
Record rate | 120fps |
Multi screen display | 1024×768@60Hz, 1280×1024@60Hz |
Record Mode | Manual / Time Scheduled / Motion Detect |
Playback | Fast forward / Rewind /Slow Play |
Hard Disk Drive | |
---|---|
Interface type | 1 SATA (2.5") |
Capacity | Up to 2TB |
External Interface | |
---|---|
Network interface | 1 RJ45 10M/100M self-adaption & 4 independent 10/100 Mbps ethernet interfaces |
USB interface | 2 USB 2.0 interfaces |
Alarm inputs/output | Nonsupport |
General | |
---|---|
Application support | Remote configuration, video browse, local recording, local and remote playback |
Motion detection | Yes |
Protocol support | TCP/IP,UDP,UPNP,DHCP,DNS/DDNS,SMTP,HTTP,FTP,etc. |
Wireless | WIFI, 802.11 b/g/n |
Operating system | Linux based |
Smart phone | iOS 4.3 up,Android 2.2 up |
Power supply | DC12V, 3A |
Power consumption | <12W(Without hard disks) |
Operating temperature | −10 °C to 50 °C |
Dimensions | 160 x 150 x 24mm (6.3" x 5.9" x 0.9") |
Weight | 0.55lbs |
Language | 11 languages |
ZH-IXA15-WAC | |
---|---|
Camera | |
Image sensor | 1/3" color CMOS sensor |
Min. illumination | 0.1Lux(IR LED On) / F 1.2 |
Shutter speed | Auto |
Lens | 2.8mm |
Angle of view | 90 degree |
Day & night | Electronic(IR-CUT filter with auto switch) |
Compression Standard | |
---|---|
Video compression | H.264 |
Audio compression | Nonsupport |
Bit rate | 16Kbps~2Mbps |
Dual stream | Yes |
Image | |
---|---|
Image resolution | 720P(1280*720),VGA(640*480),QVGA(320*240) |
Frame rate | 30fps |
White balance | Auto |
Backlight balance | Auto |
Image setting | Brightness, contrast, chroma, saturation |
Network | |
---|---|
Alarm trigger | Intelligent motion detection |
Alarm action | E-mail notification,video record,snapshot,upload to NVR |
Network protocols | TCP/IP, UDP, DNS/DDNS, SMTP, UPNP,DHCP, HTTP, FTP, etc. |
ONVIF | ONVIF Ver.2.0 |
Wireless | WIFI, 802.11 b/g/n |
Supported OS | Microsoft Win98 SE/ME/2000/XP/Vista/win7,Internet Explorer 6.0/7.0/8.0/9.0 |
Supported mobile phone OS | Android 2.2 up, iOS 4.3 up |
Security | User authentication,software encryption |
Interface | |
---|---|
Audio input | Nonsupport |
Audio output | Nonsupport |
Communication interface | RJ45 10/100M self-adaptive |
On-board storage | Built-in TF slot,up to 64GB |
General | |
---|---|
User management | Multi-lever user management,support up to 16 users |
Operating temperature | −10 °C to 50 °C |
Audio | Built-in |
Color / Material | Ivory / Plastic |
Power supply | DC 12V/1A |
Power consumption | 3W~5W |
IR distance | Night visibility up to 10m |
Dimensions | 65 x 100 x 34mm (2.6" x 4.0" x 1.3") |
Weight | 0.245lbs |
