Zmodo P2P 720P Camera 4CH PoE IP Camera NVR Kit
Negotiable
MOQ: 50 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ZMODO
Model Number:
ZM-SS714
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Zmodo Onvif Smart Home Outdoor P2p IP Camera SPOE NVR Kit PackageNegotiableMOQ: 50 Sets -
Zmodo 4 ch NVR SPOE Kits Cctv Kits & Smart Home Camera 720PUS$ 260 - 300MOQ: 1 Set
-
Wireless NVR System HD720P Security Cctv Camera SystemUS$ 1 - 10,000MOQ: 50 Pieces
-
POE NVR Kit H264 Wifi NVR Kits Security Camera KitUS$ 1 - 10,000MOQ: 10 Pieces
-
Zmodo P2P 720P Camera 4CH PoE NVR KitNegotiableMOQ: 50 Sets
Place of Origin
Guangdong, China
Brand Name
ZMODO
Model Number
ZM-SS714
Product Description

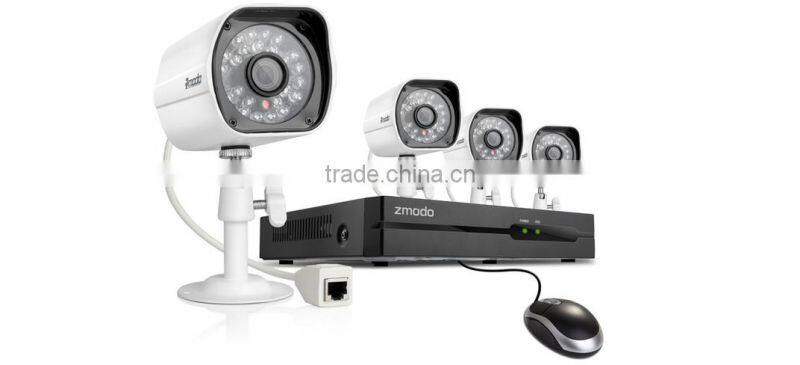

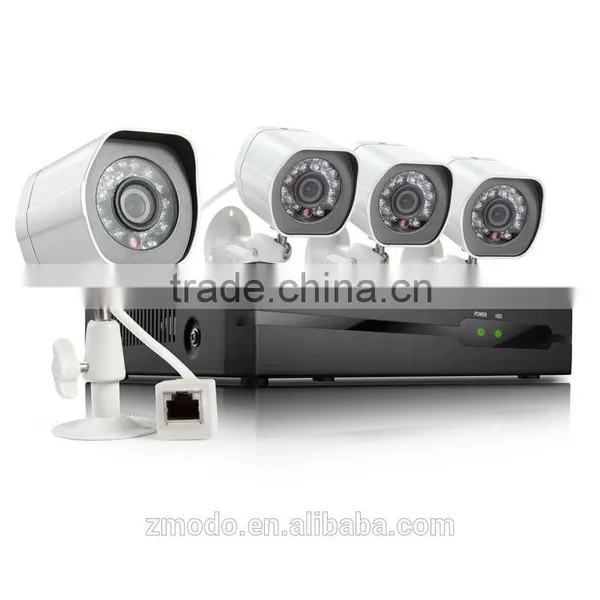

This All-in-one four channel NVR kit allows 4 outdoor 720P cameras to connect and set up in just minutes. You don't need to know deeply about computer or network, this time we've made the setup even more simpler. Four out of five people know how to live view on the Smartphone in minutes. No extra power cables or adapters are needed for the included IP cameras.Just plug one cable for one camera, scan the QR code, you will instantly view on your iOS or Android device.
All-in-One sPoE NVR Kit
One cable. One scan. Zero worries.
Get the big picture

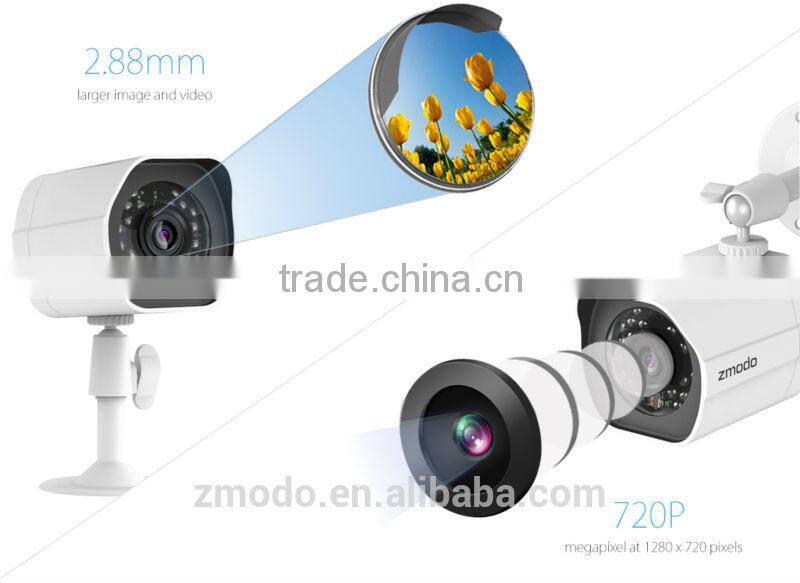

Each IP camera delivers 720p megapixel at 1280 x 720 pixels, with sharper and larger image and video than standard analog security cameras. It covers more space with more details, with the 2.8mm wider angle lens.

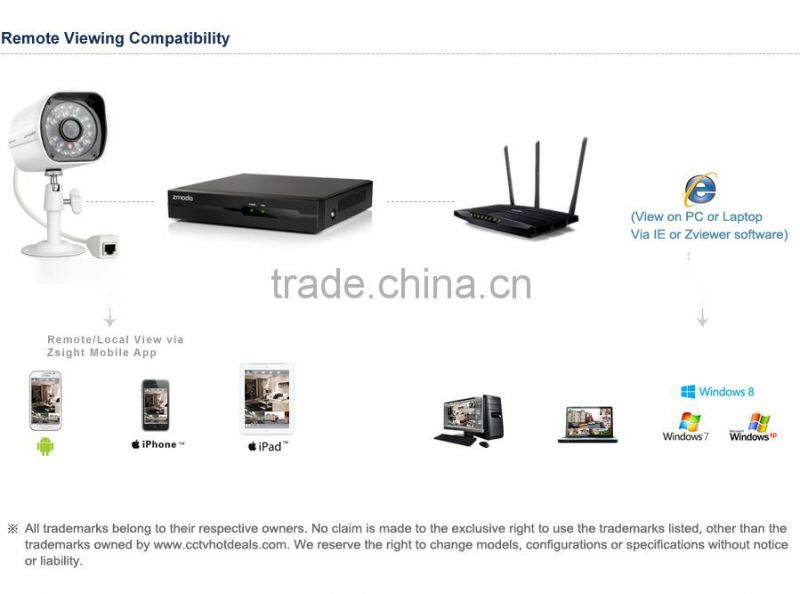

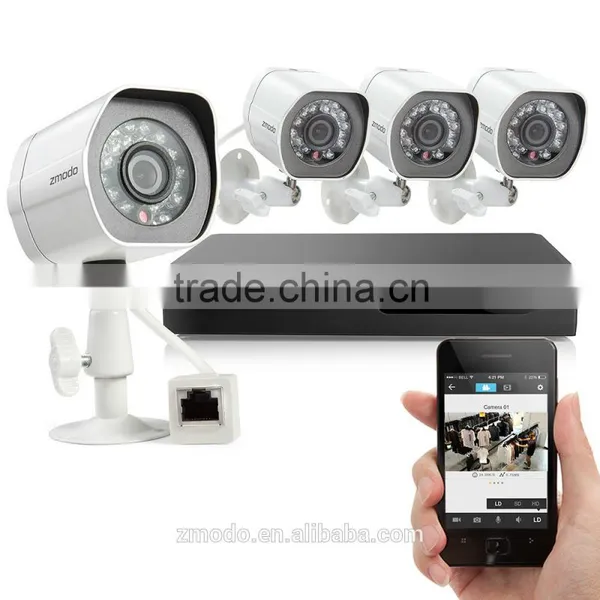

Remote access never be so easy

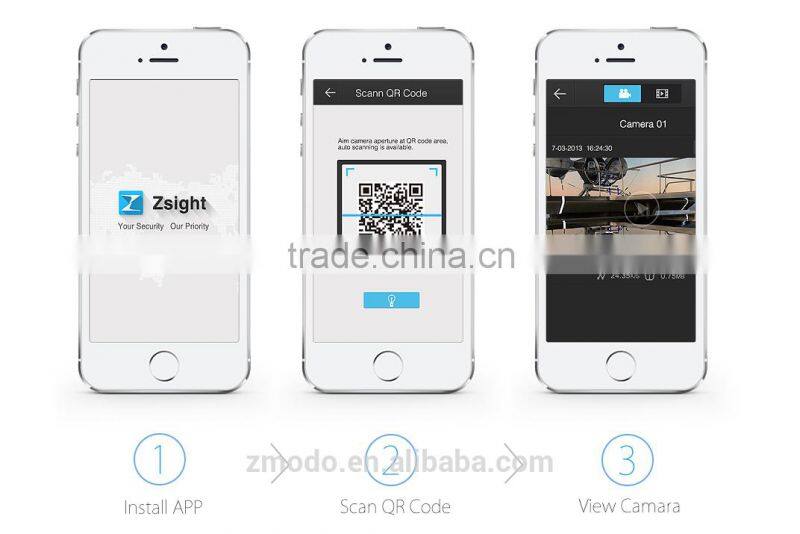

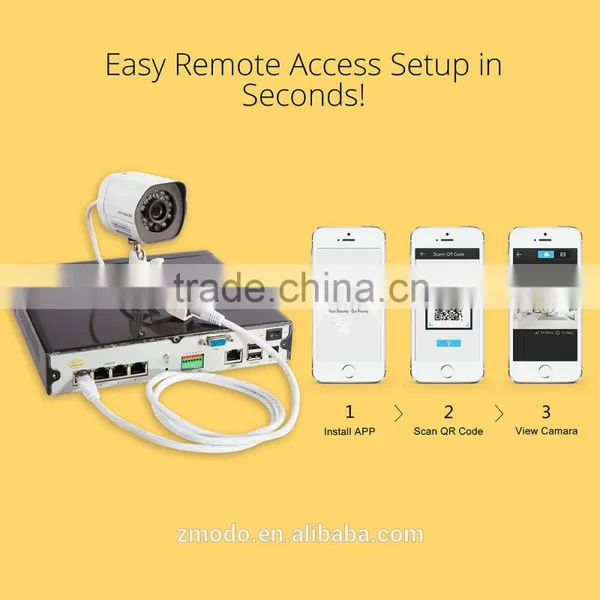

If you are comfortable scanning the QR-code with Smartphone, you can remote access the sPoE IP camera yourself. Four out of five people view live video on their Smartphone in minutes or less.
Power over Ethernet

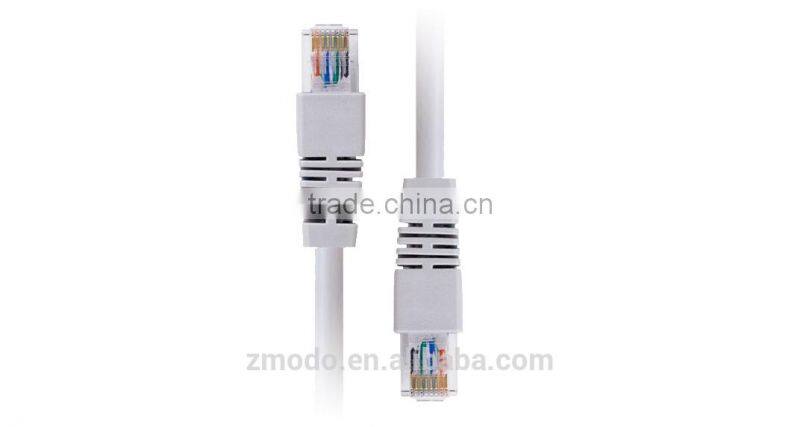

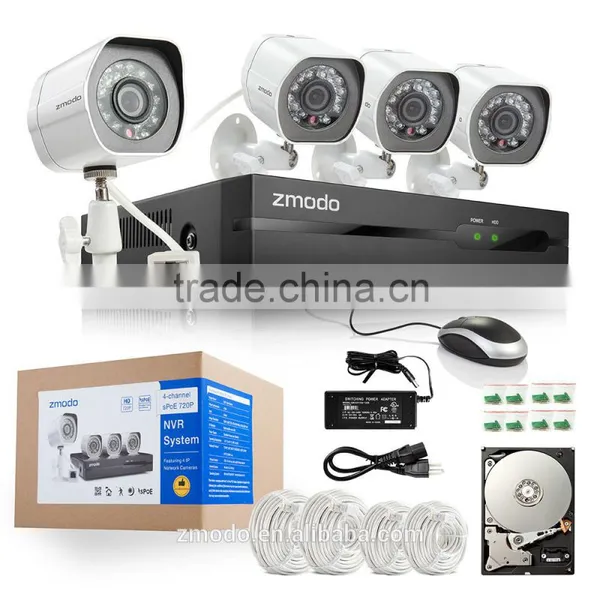

sPoE is named from simplified power over Ethernet. This time, no extra power cable needed, just plug one cable for one camera, and it's on the go. It includes 4 cables in which 2 of 50ft and 2 of 80ft, and supports network cable length up to 165ft (not included).
ZP-NE14-S | |
|---|---|
| Video Input/ Output | |
| IP video input | 4 channel IP camera inputs |
| VGA output | 1 channel |
| Recording resolution | 720P |
| Compression | H.264 |
| Record rate | 100fps Real-time |
| Multi screen display | 1024×768@60Hz, 1280×1024@60Hz |
| Record Mode | Manual / Time Scheduled / Alarm Triggered / Motion Detect |
| Playback | Fast forward / Rewind / Slow Play |
| Hard Disk Drive | |
|---|---|
| Interface type | 1 SATA (3.5") |
| Capacity | Up to 2TB |

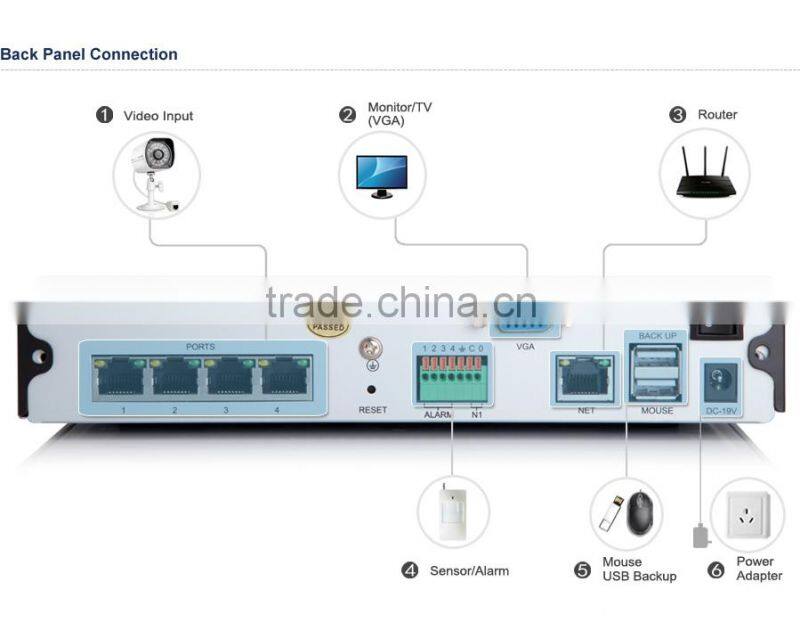

| External Interface | |
|---|---|

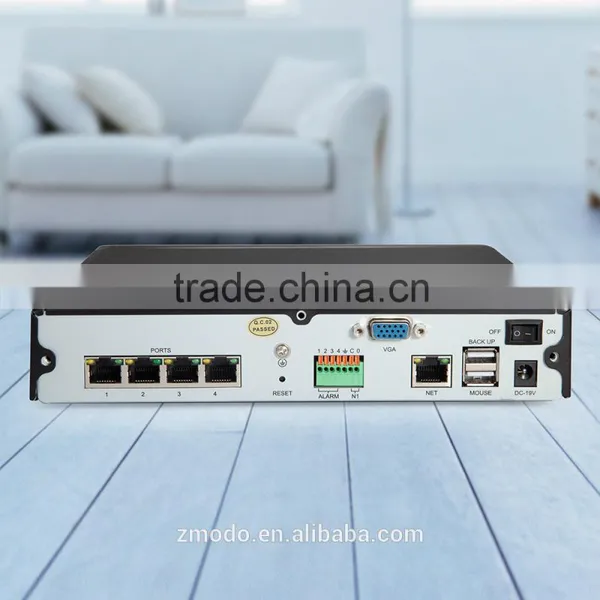

| Network interface | 1 RJ45 10M/ 100M self-adaption & 4 independent 10/ 100 Mbps ethernet interfaces |
| USB interface | 2 USB 2.0 interfaces |
| Alarm inputs/ output | 4 channel sensor inputs / 1 channel alarm output |
| General | |
|---|---|
| Application support | Remote configuration, video browse, local recording, local and remote playback |
| Motion detection | Yes |
| Protocol support | TCP/IP, UDP, DNS/ DDNS, SMTP, UPNP, DHCP, HTTP, P2P |
| Alarm | Support remote notification |
| Smart phone | iOS 5 up, Android 2.3 up |
| Power supply | DC19V, 3A |
| sPoE ports | 4 |
| Power consumption | <12W (Without hard disks) |
| Operating temperature | −10 °C to 50 °C |
| Dimensions | 220 × 205 × 40mm (8.6" × 8.1" × 1.65") |
| Weight | 1.49lbs (Without hard disks) |
| Language | 2 languages (Chinese and English) |
ZP-IBH15-S | |
|---|---|
| Camera | |
| Image sensor | 1/4'' color CMOS sensor |
| Min. illumination | 0.1Lux (IR LED On) / F 1.2 |
| Shutter speed | Auto |
| Lens | 2.8mm |
| Angle of view | 90 degree |

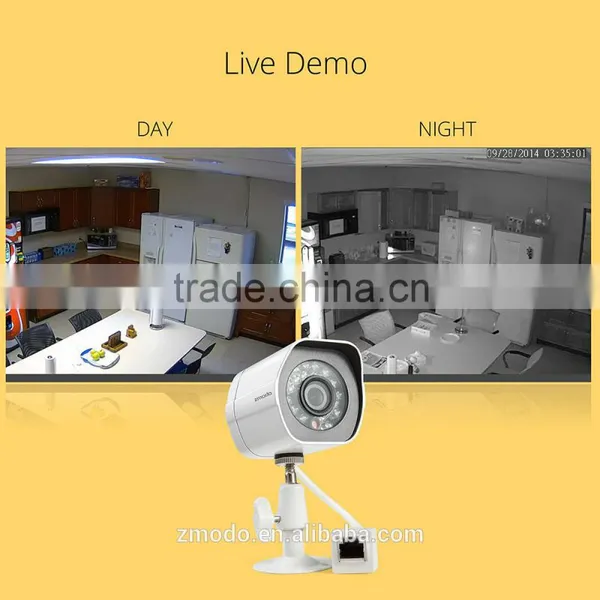

| IR distance | Night visibility up to 20m |
| Day & night | Electronic (IR-CUT filter with auto switch) |
| Compression Standard | |
|---|---|
| Video compression | H.264 |
| Bit rate | 16Kbps~2Mbps |
| Dual stream | Yes |
| Image | |
|---|---|
| Image resolution | 720P (1280*720) , VGA (640*480) , QVGA (320*240) |
| Frame rate | 25fps Real-time |
| White balance | Auto |
| Backlight balance | Auto |
| Image setting | Brightness, contrast, saturation |
| Network | |
|---|---|
| Alarm trigger | Intelligent motion detection |
| Alarm action | E-mail alarm, video record |
| Network protocols | TCP/IP, UDP, DNS/ DDNS, SMTP, UPNP, DHCP, HTTP, and P2P |
| ONVIF | ONVIF Ver.2.0 |
| Security | User authentication, software encryption |
| Interface | |
|---|---|
| Communication interface | RJ45 10 / 100M self-adaptive |
| General | |
|---|---|
| User management | Multi-lever user management, support up to 16 users |
| Weather proof | IP65 |
| Operating temperature | −10 °C to 50 °C |
| Color / Material | White /Aluminum |
| Powered by | Power over Cable |
| Power consumption | 2W~5W |
| Dimensions | 66 × 60 × 99mm (2.6" × 2.4" × 3.9") |
| Weight | 0.794lb |
| PC Monitor | |
|---|---|
| Windows | XP / Vista / Win7 |
| IE | 7.0 / 8.0 / 9.0 / 10.0 / 11.0, Please use IE 7.0 / 8.0 /9.0 for Win |
| Mobile Monitor | |
|---|---|
| APP | Zsight |
| Android support | 2.3 up |
| iOS support | 5 up |
