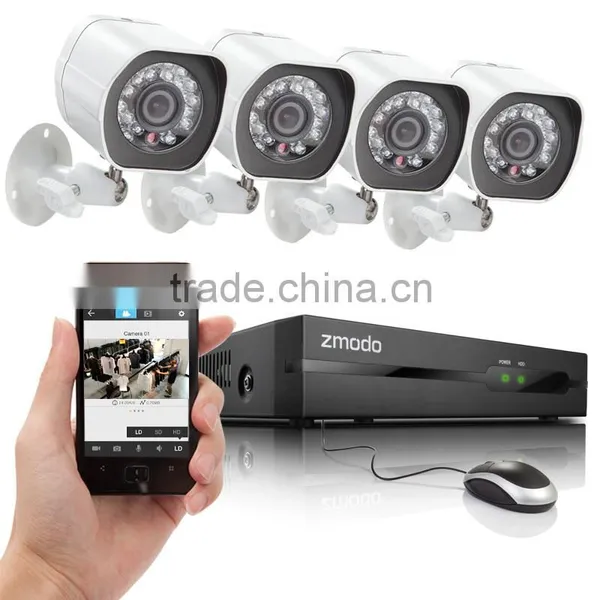

All-in-One sPoE NVR Kit( One cable. One scan. Zero worries )

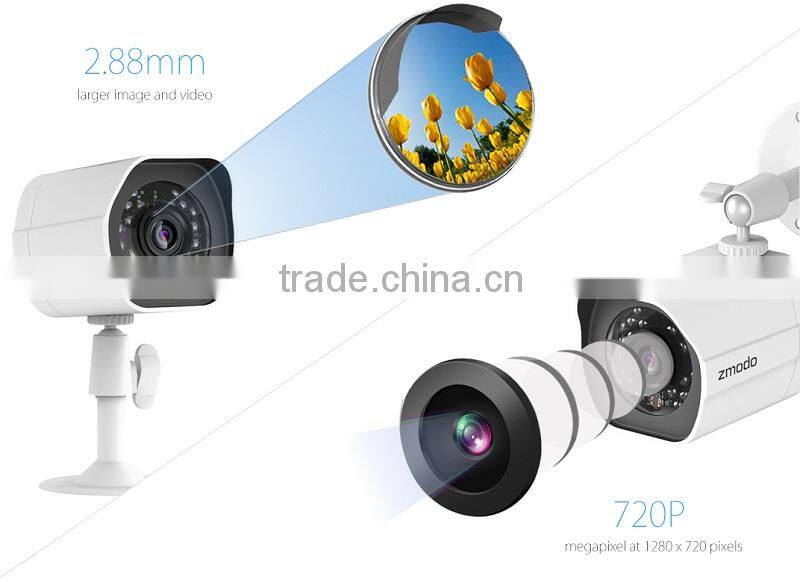

Get the big picture
Each IP camera delivers 720p megapixel at 1280 x 720 pixels, with sharper and larger image and video than standard analog security cameras.
It covers more space with more details, with the 2.8mm wider angle lens

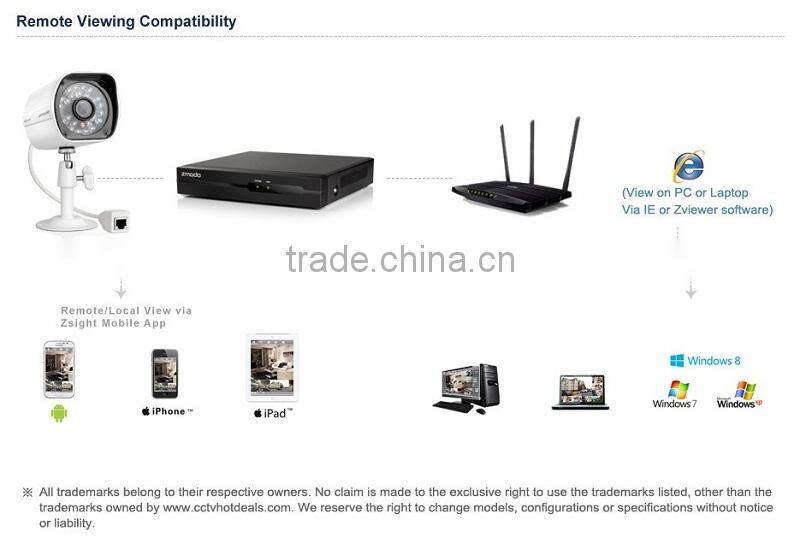

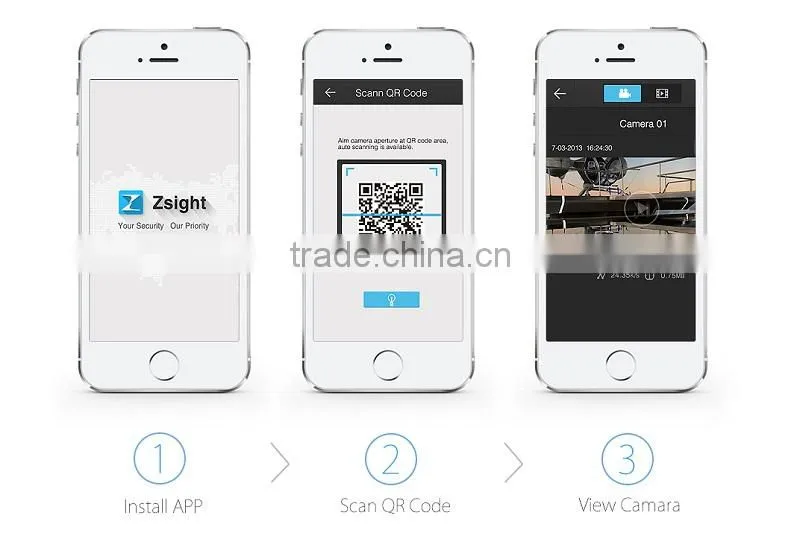

Remote access never be so easy
If you are comfortable scanning the QR-code with Smartphone,
you can remote access the sPoE IP camera yourself.
Four out of five people view live video on their Smartphone in minutes or less.
Power over Ethernet
sPoE is named from simplified power over Ethernet.
This time, no extra power cable needed, just plug one cable for one camera,

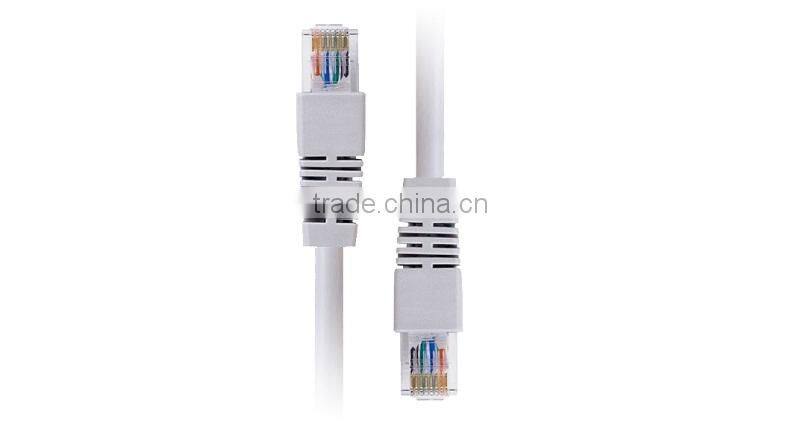

and it's on the go. It includes 4 cables in which 2 of 50ft and 2 of 80ft,
and supports network cable length up to 165ft (not included).
Versatility
Video Input/ Output
IP video input 4 channel IP camera inputs
VGA output 1 channel
Recording resolution 720P
Compression H.264
Record rate 100fps Real-time
Multi screen display 1024×768@60Hz, 1280×1024@60Hz
Record Mode Manual / Time Scheduled / Alarm Triggered / Motion Detect
Playback Fast forward / Rewind / Slow Play
Hard Disk Drive
Interface type 1 SATA (3.5")
Capacity Up to 2TB

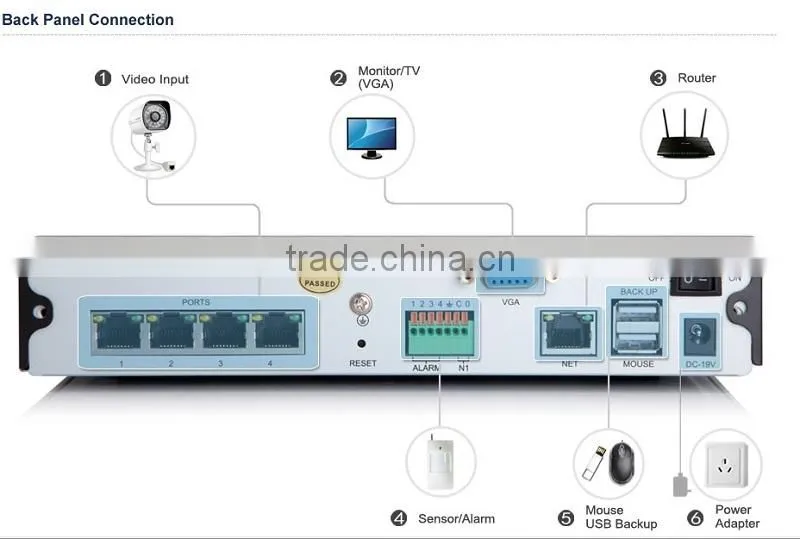

External Interface
Network interface 1 RJ45 10M/ 100M self-adaption & 4 independent 10/ 100 Mbps ethernet interfaces
USB interface 2 USB 2.0 interfaces
Alarm inputs/ output 4 channel sensor inputs / 1 channel alarm output
General
Application support Remote configuration, video browse, local recording, local and remote playback
Motion detection Yes
Protocol support TCP/IP, UDP, DNS/ DDNS, SMTP, UPNP, DHCP, HTTP, P2P
Alarm Support remote notification
Smart phone iOS 5 up, Android 2.3 up
Power supply DC19V, 3A
sPoE ports 4
Power consumption <12W (Without hard disks)
Operating temperature −10 °C to 50 °C
Dimensions 220 × 205 × 40mm (8.6" × 8.1" × 1.65")
Weight 1.49lbs (Without hard disks)
Language 2 languages (Chinese and English)
ZP-IBH15-S
Camera
Image sensor 1/4'' color CMOS sensor
Min. illumination 0.1Lux (IR LED On) / F 1.2
Shutter speed Auto
Lens 2.8mm
Angle of view 90 degree
IR distance Night visibility up to 20m
Day & night Electronic (IR-CUT filter with auto switch)
Compression Standard
Video compression H.264
Bit rate 16Kbps~2Mbps
Dual stream Yes
Image resolution 720P (1280*720) , VGA (640*480) , QVGA (320*240)
Frame rate 25fps Real-time
White balance Auto
Backlight balance Auto
Image setting Brightness, contrast, saturation
Network
Alarm trigger Intelligent motion detection
Alarm action E-mail alarm, video record
Network protocols TCP/IP, UDP, DNS/ DDNS, SMTP, UPNP, DHCP, HTTP, and P2P
ONVIF ONVIF Ver.2.0
Security User authentication, software encryption
Interface
Communication interface RJ45 10 / 100M self-adaptive
General
User management Multi-lever user management, support up to 16 users
Weather proof IP65
Operating temperature −10 °C to 50 °C
Color / Material White /Aluminum
Powered by Power over Cable
Power consumption 2W~5W
Weight 0.794lb
PC Monitor
Windows XP / Vista / Win7
IE 7.0 / 8.0 / 9.0 / 10.0 / 11.0, Please use IE 7.0 / 8.0 /9.0 for Win
Mobile Monitor
APP Zsight
Android support 2.3 up
iOS support 5 up
Product Requirements
1.A Monitor
2.A VGA cable
3.A Router for the Cameras to stream video onto the NVR
4.A CAT-5 cable connecting the NVR to your router.
5.A physical internet connection such as Cable, DSL, or Fiber. Not Supported: satellite internet, 3G/4G hotspots, or city-wide wireless (for remote viewing)
6.A minimum upload speed of at least 256kbps at the location of the DVR (for remote viewing)
7.A Windows based computer. Windows XP, Vista, or 7. *
*Depending on the hardware within the machine

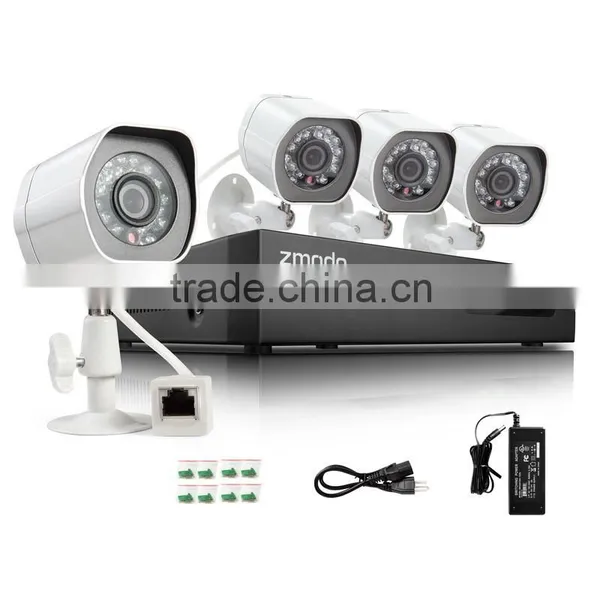

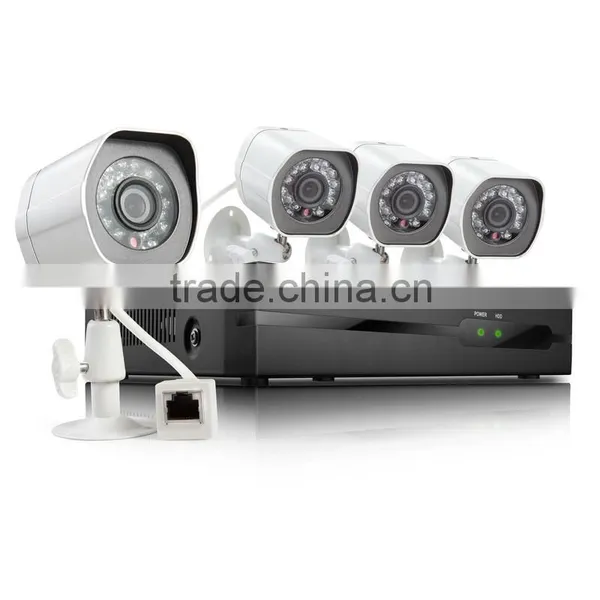

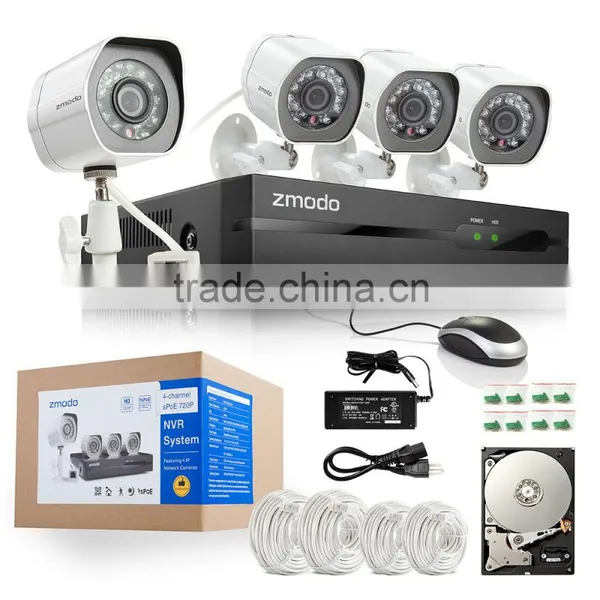

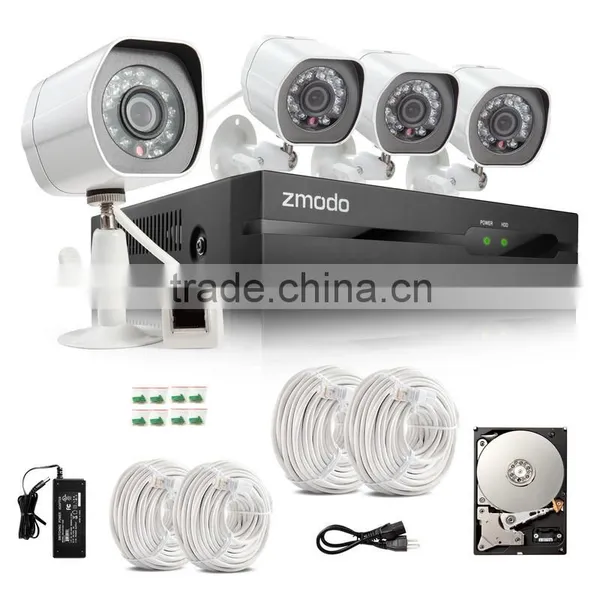

What is Included

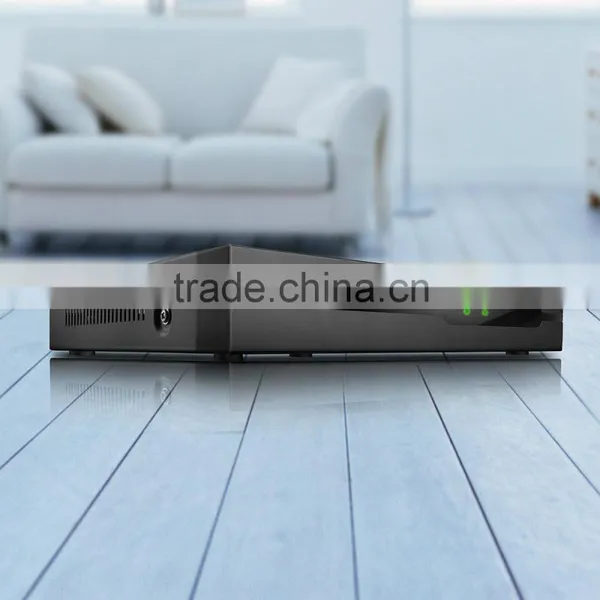

1) 4 Channel Security NVR(ZP-NE14-S), 1TB HDD Pre-Installed
4) 720P Bullet IP Network Camera (ZP-IBH15-S)
1) 19V 3A Power Adapter
1) 1M(3ft) CAT5e Network Cable
2) 15M(50ft) Camera Cables
2) 25M(80ft) Camera Cables
1) USB Mouse
1) Quick User Guide
