China Exported 55000L Lpg Gas Tank Trailers for Sale Q345R LPG Transport Tanker ISO 56CM3 LPG Tanker Pressure Vessel AFRICAN

China exported  55000L lpg trailers for sale Q345R LPG Transport Tanker ISO 56CM3 LPG Tanker Pressure Vessel AFRICAN

Tare Weight

11500KGS

Pay Load

25000KGS

Overall Length

11400mm

Overall Width

2480mm

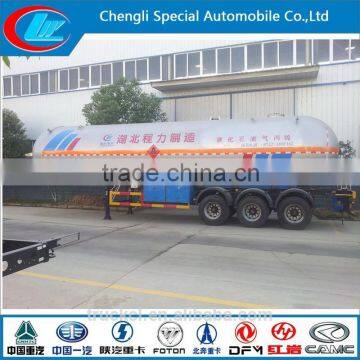

Photo for reference, finial product can be made according to exact requirements

Tank

Transporting Media

Dimethylmethane, Liquid Ammonia, Liquid SO2, LPG,Butane

Shape

Round Shape

Total Volume(m³)

56CBM

Tanker Body Steel Sheet

Q235A/14mm

End plate

Q235A14mm, by punching

Parts for Tank

Manhole cover

3 sets of 500mm/Q235 manhole fixed on top of Tank, with breather valve

Unloading valve

2-3 sets of DN80 fixed at button of Tank

Pipeline at button of tank

4”seamless steel tube/Q235

Labeling system

Oil Type Indication

Anti-static electricity system

pulling, wire carrier, sheet copper (6 sheet-standard layout)

Other Parts

Ladder

1 unit at front of Tank

Guard on top of Tank

Zinc galvanized –guard-net

Oil hose box

Circular single hole tube, 1 unit on each side

Oil hose

2 unit, 3” x 6m size in black rubber

Side guard

cross bar-structure

Rear button guard

Fixed type

Work tank deck

Box type

Fire extinguisher box

2 unit at the back of each side

Mud guard

Steel structure in trapezoid form

Lights and wire

24V, 7 coils with lights for parking, reverse, instruction, head lamp and end lamp

Chassis

Main Beams

Heavy duty and extra durability designed; Opting for high tensile steel Q345B,welded by automatic Submerged-Arc processes

Axle

3 axle

BPW brand FUWA brand

Landing Gear

JOST Two-speed, manual operating, heavy duty landing gear

King Pin

JOST 2”standard bolt-in king pin

Suspension

German design mechanical suspension

Pneumatic Braking System

WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks.

Wheel rim

8.25R22.5 wheel rim

Tire

11R22.5 tubeless tire with one spare tire

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
