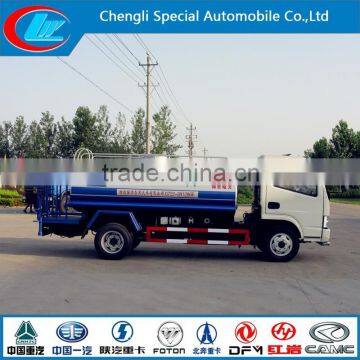

2000 liter mini water tank truck with spray equipment

Main specification

Product model and name

mini water truck

Gross weight(Kg)

4400

Drive type

4*2

Payload(Kg)

2000

Overall dimension(mm)

5100*1840*2300

Curb weight(Kg)

2270

Cab seats

2

Approach/departure angle(°)

23/19

Front/rear hang(mm)

1120/1480

Axle No.

2

Wheelbase(mm)

2600

Axle load(Kg)

1760/2640

Max speed(Km/h)

85

Chassis specification

Chassis model

DFA1041SJ30D2

Manufacturer

Dongfeng Motor Co.,Ltd

Brand name

Dongfeng

tank dimension(mm)

2500/1300/850

Tyre specification

6.00-15

Tyre No.

6

Steel spring number

8/13,8/12

Front track base(mm)

1412

Fuel type

Diesel

Rear track base(mm)

1366

Emission standard

Euro 3

Transmission

Cab

for 2 passengers

Engine model

Engine manufacturer

Displacement(ml)

Power(Kw)

SD4AW504U

SiDa engine

2270

50

Performance

Tank volume(m³)

2

Tank material

Carbon steel Q235

Water pump model

80QZF-60/90N

Water pump flow(m³/h)

60

Watering width(M)

≥14

Water cannon range (M)

≥28

Feature and Application

1).Equipped with high power self-suction water pump that characterized by high-pressure and fast speed suction.

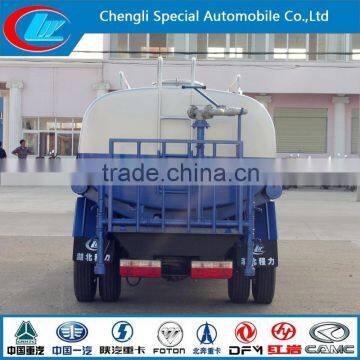

2).Equipped with front, rear and side sprinklers and high position sprinkler, and rear working platform.

3).The water cannon which is installed on the working platform can rotate by 360 degree and the water flow can be adjusted into various rain shape. There are straight shape, heavy rain, moderate rain and drizzle etc. The max range can reach 30M.

4).Equipped with fire coupling, flow valves, filter screen and water level gauge.

5).According to customers’ request, the crane, high working platform and spraying machine also can be equipped.

6).Mainly used for washing on urban roads, watering and greening on trees, green belts and lawn and dust full of construction sites. And also used for drinking water delivery and fire fighting function etc.
