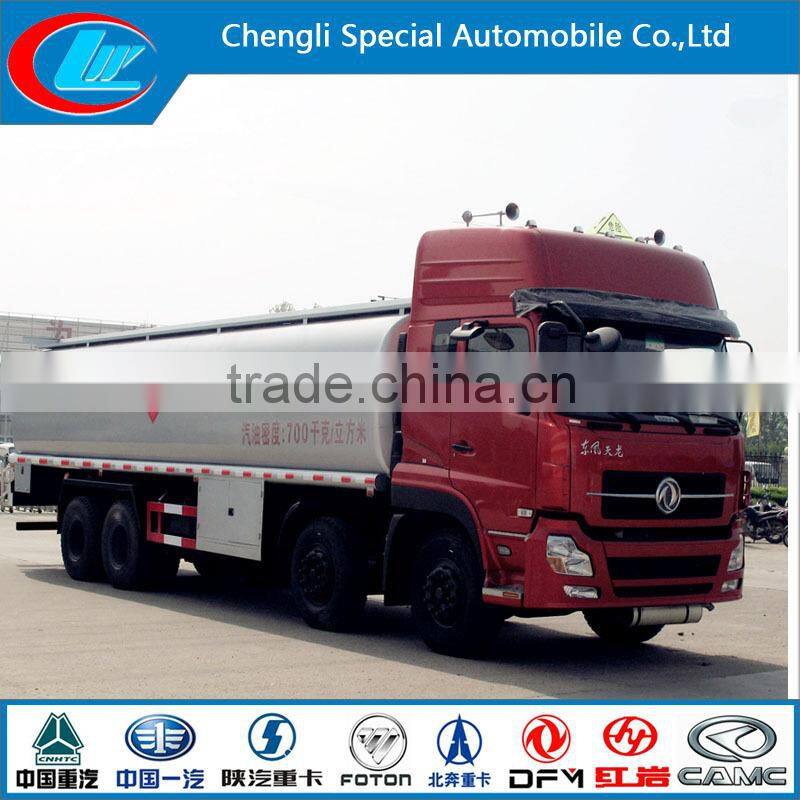

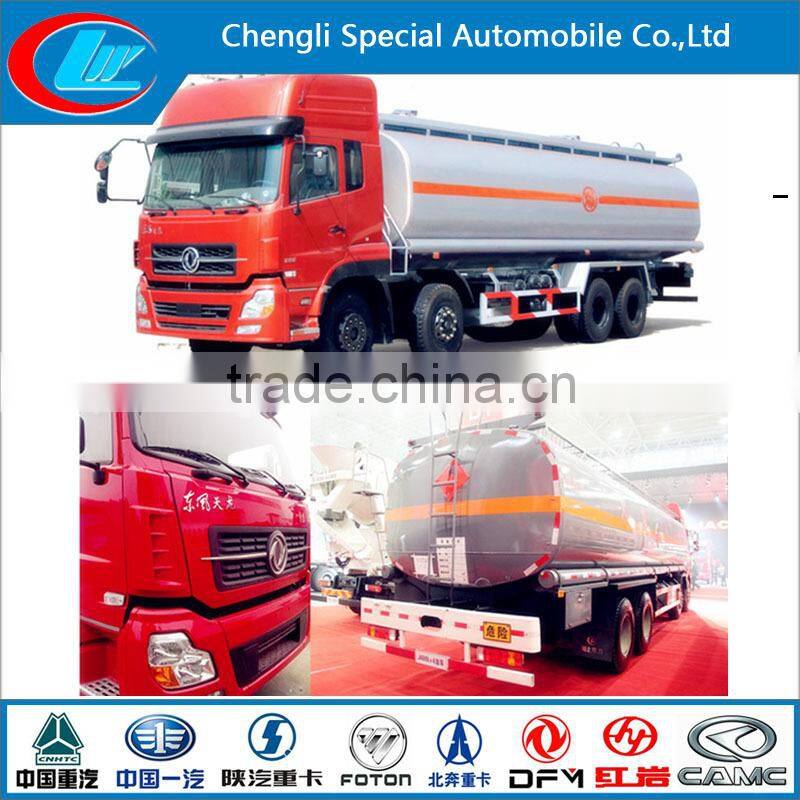

15 Meter Tones Dongfeng Fuel Tank Truck for Export

US$ 35,000 - 40,000 MOQ: 1 Set

Key Specifications

Condition:

New

Storage:

Oil

Drive Wheel:

6x4

Chengli Special Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Storage Oil

Drive Wheel 6x4

Horsepower 150 - 250hp

Transmission Type Manual

Fuel Type Diesel

Tank Volume 10001 - 15000L

Engine Capacity 6700

Dimensions (L x W x H) (mm) 8100*2480*3000

Brand Name CLW

Place of Origin Hubei, China

Model Number CLW

Gross Vehicle Weight 14490

15T Dongfeng Fuel Tank Truck for export, 15 meter tones Dongfeng Fuel Tank Truck for export

quick detail:

volume:15ton

Brand : dongfeng

storage: oil, fuel, petrol

engine: dongfeng cummins

load weight:8ton

emission standard: EuroIII

delivery time: 30 days after recieving the payment for the dongfeng fuel tank truck

Cabin	15T Dongfeng Fuel Tank Truck for export
Drive Model	4X2
Vehicle Main Dimensions	(L x W x H)mm	8100×2480×3000
	Wheel base (mm)	4500
	Wheel track (front/rear) (mm)	1940
	Approach/Departure angle(°)	22/16
Weight in KGS	Tare Weight	14490kg
Weight in KGS	Loading Capacity	7500kg
Max. driving speed(km/h)		80
Engine	Brand	Dongfeng Cummins
	Model	ISDe185 30
	Type	4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)	350
	Emission standard	Euro Ⅲ
Gearbox	10forwards& 2 reverse
Clutch	Reinforced diaphragm clutch, diameter 430mm
Tire	7 10.00R20 All steel radial tire, 1pc including 1 spare tire
Brakes	Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake
Steering Gear	ZF 8098,power steering, hydraulic steering with power assistance
Fuel tank (L)	350
Tank body

Loading media	Fuel and Chemical Liquid Tank Truck
Length	5.2-6.4m
Material	Q235/Q345/610L/Q700 carbon steel, stainless steel, alloy steeel
Thickness	16mm
Volume	12CBM

Parameter sheet of 50 CBM LPG Storage tank

Name	50 CBM LPG storage tank
Filling Medium		LPG
Tanker size	mm	918227283318
Effect volume	m3	50
Tare weight	kg	10640
Loading capacity	kg	19950
Design pressure	Mpa	1.77
Working pressure	Mpa	≤1.61
Working temperature	°C	≤50
Water pressure test	Mpa	2.22
Diameter	mm	DN2700
Material	Q345R ( Tanker: 14mm thickness and End plate: 16mm thickness)
Work standard	LPG GB150 Steel pressure vessel, pressure vessel technology to monitor the safety regulations
Accessory	safety valve, magnetic flap liquid level gauge, pressure gauge, thermometer, cut-off valves, etc. valve, etc.

VEHICLE MODEL	CLW5290GYY	FACT VOLUME	30000-40000 L

CHASSIS		SYSTEM
Chassis Model	EQ1290WJ	Enigne	DongFeng Cummins
Appro/Depart Angle	32/15	Enigne Type	C260-20
Max Speed	90km/h	Exhaust/HP	8300ml/191kw
Max gradability	30%	Traction System	8*4
F/R Overhang	1250/2080 mm	Springs	9/9/10
Mini Radius	20 m	Electric System	24v
Clearance	260 mm	Control System	Electrically hydraulic system
Cab Passengers	3	Tire Specification	11.00R20,11.00-20,12.00R20,12.00-20
DIMENSIONS(mm)		WEIGHT(kg)
Overall	1190024953750	G.V.W	29490
Internal	900023001550	Rated Loading	14800
Wheel Base	1950+4250+1300	Mass In Working	14495
F/R Track Base	1940/1860	Fact Loading	16000
EQUIPMENT		SERVICE
		Production Cycle	10-15 days
		Warranty	12 months, from the date of supply
		Factory Price	$
		FOB/DAF/CNF/CIF	$
