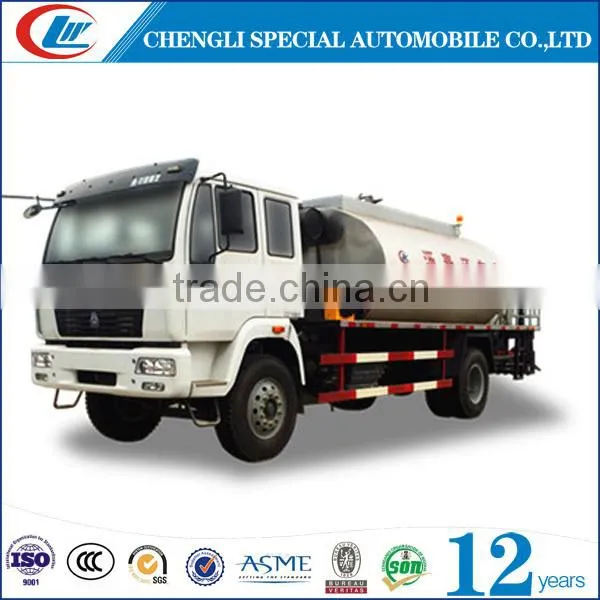

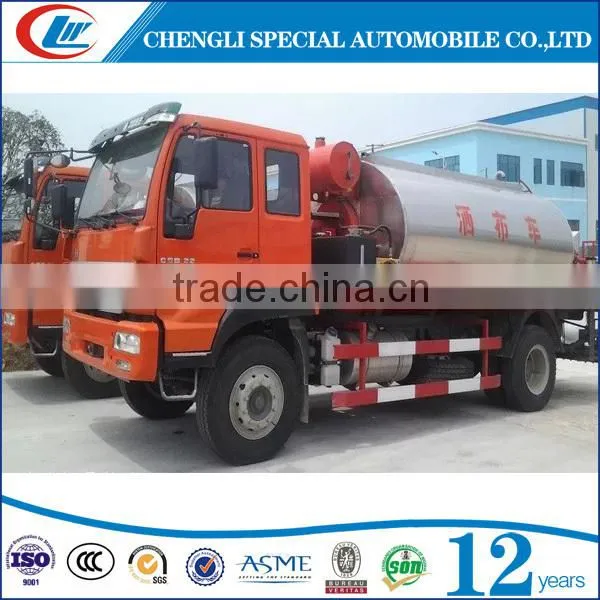

Sinotruk 2 Axles Asphalt Distributor Truck 220hp Bitumen Truck,Asphalt Spray Truck

Sinotruk 2 Axles Asphalt Distributor Truck 220hp Bitumen Truck,Asphalt Spray Truck thumbnail-1
Sinotruk 2 Axles Asphalt Distributor Truck 220hp Bitumen Truck,Asphalt Spray Truck thumbnail-2
Sinotruk 2 Axles Asphalt Distributor Truck 220hp Bitumen Truck,Asphalt Spray Truck thumbnail-3
Sinotruk 2 Axles Asphalt Distributor Truck 220hp Bitumen Truck,Asphalt Spray Truck thumbnail-4
Sinotruk 2 Axles Asphalt Distributor Truck 220hp Bitumen Truck,Asphalt Spray Truck thumbnail-5
Sinotruk 2 Axles Asphalt Distributor Truck 220hp Bitumen Truck,Asphalt Spray Truck thumbnail-6
Sinotruk 2 Axles Asphalt Distributor Truck 220hp Bitumen Truck,Asphalt Spray Truck photo-1
Sinotruk 2 Axles Asphalt Distributor Truck 220hp Bitumen Truck,Asphalt Spray Truck photo-2
Sinotruk 2 Axles Asphalt Distributor Truck 220hp Bitumen Truck,Asphalt Spray Truck photo-3
Sinotruk 2 Axles Asphalt Distributor Truck 220hp Bitumen Truck,Asphalt Spray Truck photo-4
Sinotruk 2 Axles Asphalt Distributor Truck 220hp Bitumen Truck,Asphalt Spray Truck photo-5
Sinotruk 2 Axles Asphalt Distributor Truck 220hp Bitumen Truck,Asphalt Spray Truck photo-6
US$ 34,000 - 36,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Production Capacity:
0.2~3.5L/min
Power(W):
161 kw
Contact Supplier Request Quote Chat Now
Chengli Special Automobile Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port in China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Production Capacity 0.2~3.5L/min
Power(W) 161 kw
Max. Paving Thickness 220-300mm
Paving Width 4000 mm
Place of Origin Hubei, China
Brand Name Sinotruck
Model Number CLW
Dimension(L*W*H) 10493mm*2500mm*3296mm
Weight 10305
Certification ISO, CCC
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Sinotruk 2 axles Asphalt Distributor truck 220hp Bitumen truck,Asphalt spray truck

SINOTRUK 220HP 4X2 Asphalt Spraying Truck
Item No.
Parameters
Chassis
Gross Vehicle Weight
16000 kg
Curb Weight
10305 kg
Loading Weight
5565 Kg
Wheel Base
4700 mm
Front/rear Tread
2020/1860 mm
Approach/Departure Angle
24.5/9 degree
Engine
YC6J220-33 Diesel Engine
Engine horsepower
220HP EURO III
Displacement
6494L/162KW (Diesel)
Max Driving Speed
90km/h
90km/h
11.00-20 (6 pieces+1piece spare tire)
Asphalt Tank
Asphalt Tank
Size
3800*2350*1650 mm
Outside Material
Stainless Steel plate
Insulation layer
≤20℃/8h
Hydraulic System
Hydraulic pump
CQB550-L
Driving Motor
 05-110-BD31
Proportional Valve
EFBG-03-160-HF/Taiwan brand
Shuttle Valve
hanxi Yuci brand
Overflow Valve
Shanxi Yuci brand
Control System
Control System
CLW-48-01/Germany Siemens
Control Method
Computer control
Smart asphalt nozzle
48 pcs
Heating System
Heating method
Automatic heating by oil
Burner
G20/Italy brand
Radiator
Risheng brand
Heat transfer oil pump
40-25-160
Gasoline Engine
5.5kw
Spreading Width
4m
Spreading Speed
0.2~3.5L/min
Spreading Precision
±2%

Specifications

1.Supply to Africa, South America, Assia, Middle east.
2.Volume: 5cbm, 6cbm, 8cbm, 10cbm, 15cbm, 20cbm, 25cbm or other volume as your demand.
3. Sinotruk, Dongfeng, Shancman, Faw, Foton or other chassis as your deamnd.
4. Drawing cuold be offered to your for confirmation before production.

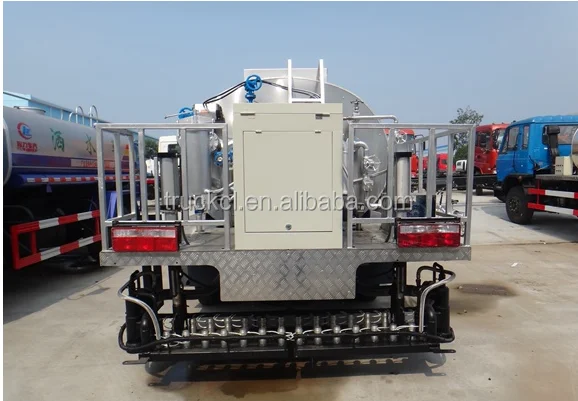

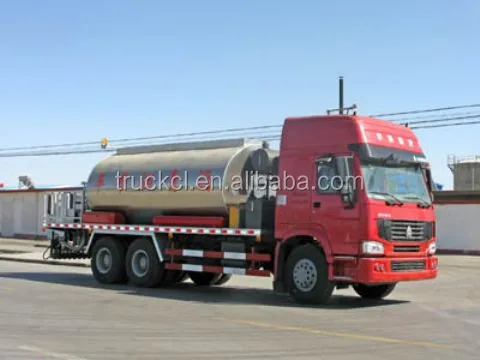

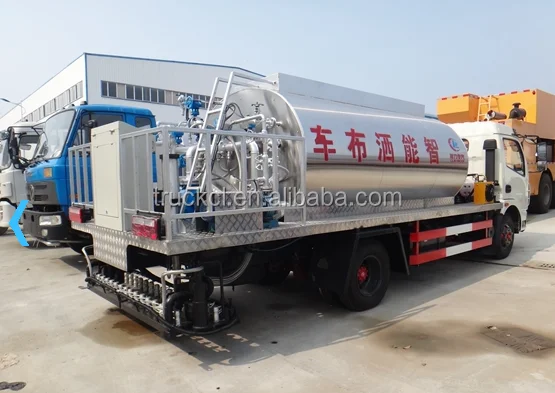

Detailed Images
Other Products

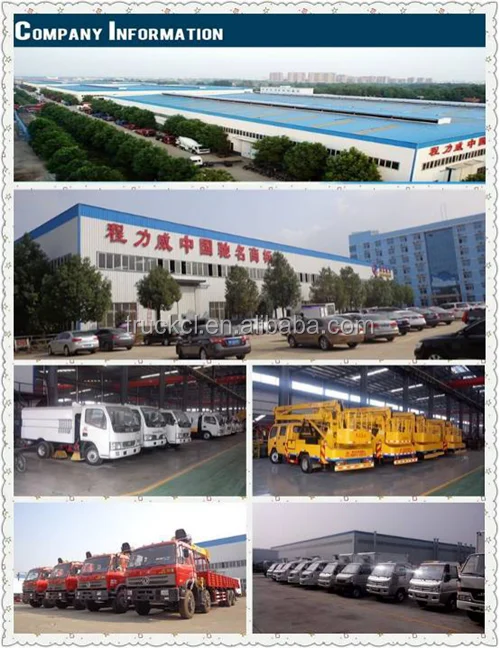

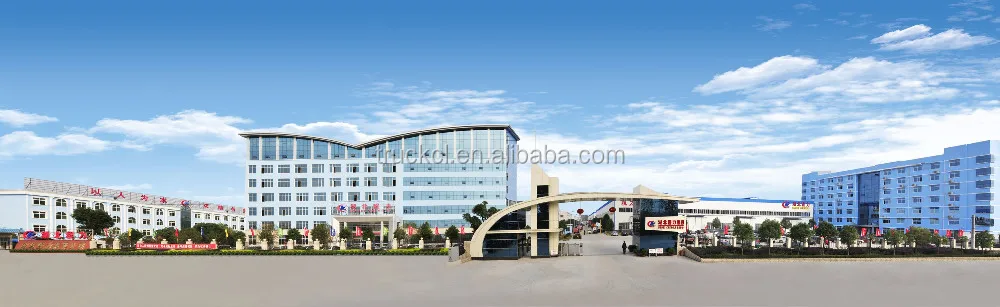

Our Company

ChengLi Special Automobile Co.,LTD

As the "Alibaba Group" in the special vehicle circle, has developed into the biggest professional special vehicle manufacturer of central China starting from scratch since 2004. There are totally 8,000 workers in factory and can supply 800 types of trucks. In 2014, our total sales revenue reach $300 million.
Over the past 11 years, our group made a great achievements in the special vehicle circle, our products have been sold to many country around the world, such as Nigeria, Vietnam, Garner, Uganda, Singapore, Malaysia, Congo, Cameroon etc.
There're many type trucks in our company, because we built up a long cooperate relationship with many famous brand chassis manufacturer, such as Sinotruk, Dongfeng, Foton, Shacman, JAC, JMC, FAW etc.
Look forward to the future, we are confident, we belive that we can do better! We will pay more attention to the quality of the products, that's what we always do!.

Packing & Delivery
Certifications
Customers visiting
FAQ

Q1. What is your terms of packing?
A: Waxed before shipping

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance. or L/C or CASH or paypal.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.

Q8. What's your after-sale service?
A: Oversea engineers are available. 1 year waranty.
