Home > Products > steel processing machine > GQ40 rebar threading cutting machine screw hread steel cutter
GQ40 rebar threading cutting machine screw hread steel cutter
- 50 Set / Sets per Month
- Qingdao Shanghai Ningbo Tianjin
- T/T L/C D/P D/A Credit Card
- REBOUND CNC plasma cutting machinery with bevel head 30mm
- REBOUND cnc detachable gantry plasma and flame cutting machinery sheet
- Best price cnc detachable plasma cutting machinery for gas-plasma cutting
- helical rack and pinion cnc detachable plasma cutting machinery automatic high safety level
- pump inside air detachable plasma cutting machinery sliding work bench
- solenoid valve for detachable plasma cutting machinery lokermann high safety level
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | LANDAO |
Model Number: | GQ40 | Voltage: | 380V | Rated Power: | 7.5kw |
Dimension(L*W*H): | 1190*450*680 | Weight: | 430 kg | Certification: | ISO9001 |
Warranty: | 12 Months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Product description
GQ40 rebar threading cutting machine screw hread steel cutter is one kind of steel bar

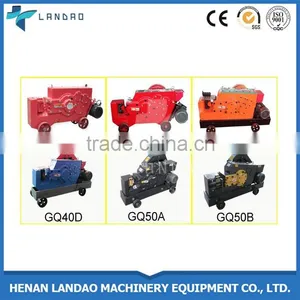

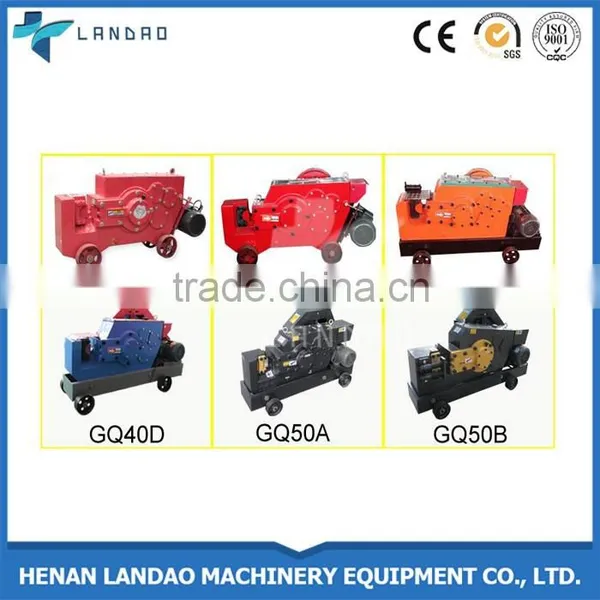

processing machine, mainly used for cutting carbon steel, cold and hot round steel,screw hread steel, deformed steel, flat steel , angle steel and square steel in construction project. It can be classfiedGQ40,GQ50,GQ60,GQ70 model bar cutting machine according to max working capacity 40mm, 50mm, 60mm and 70mm.
Specifications:
Model | GQ40 | GQ50 | GQ60 | GQ70 | |
Cutting range | Carbon steel | ≤Φ40mm | ≤Φ50mm | ≤Φ55mm | ≤Φ65mm |
II-grade deformed steel | ≤Φ32mm | ≤Φ42mm | ≤Φ42mm | ≤Φ50mm | |
Cutting Specification | Flat Steel | 70x15mm | 80×18mm | 80×18mm | 80×18mm |
Square Steel | 32x32mm | 40×40mm | 40×40mm | 40×40mm | |
Angle Steel | 50x50mm | 63×63mm | 63×63mm | 63×63mm | |
Cutting Frequency | 32times/min | 28times/min | 28times/min | 25times/min | |
Power of Motor(KW) | 2.2/3 | 4/3.0 | 5.5KW-2P | 11 | |
Motor Speed(r/min) | 2890 | 2890 | 2890 | 1440 | |
Rated Voltage(V) | 220V~440V | 220V~440V | 220V~440V | 220V~440V | |
Dimension(mm) | 1250×500×730 | 1420*530*850 | 1800x500x970 | 1550×750×1000 | |
Whole Weight(Kg) | 450 | 580 | 800 | 1300 |
Features
Feature of GQ40 rebar threading cutting machine screw hread steel cutter
1. Move easily. small size,compact structure, solid fuselage. With scrollable casters it can be moved easily and flexibility.
2. Good lubricating properties.It adopts full close structure and lubricates by using gears splash.
It can operate more than three months continually if it is added oil(8-10kg) at a time.
3. Little power loss. For lubrication conditions improving,gear-side uses rolling bearing, the resistance is small,
compared with the similar cutting machine with load power can reduce by one third.
4. Work longer. It adopts the high steel knife block,connecting rod, high-speed international standard motor, its quality is more stable and it will last longer.
5.Thread cutting machine with arc blade, makes the material head rules neat and is more suitable for further processing
Packaging & Shipping
Factory Photo & Product Details
we have about 20 years’ manufacture experience
Our Services
Pre-sale service:
1.Before service, we are willing to act as consultant and assistant.
2.We will give our professional suggestion about equipment model.
3.We will design and produce machines according to customers’ demands.
4.Before we begin to produce, we will send customers confirmation order in which the specifications and quantity is shown in detail.
5.We will send our experts to investigate buyer’s working site then design the best flow chart and scheme.
Selling service:
1.We will respect customers’ choice and aim to create largest benefit for customers.
2.We will do the quality test after finishing producing.
3.WE have QC department which is responsible to control quality from the producing materials to final machines.
4.We will help customers to design capital?construction.
After- service:
1.We will send our technicians to install machines and debug machines.
2.We will train workers for customers.
3.We will follow customers’ usage and telephone follow-up.
4.our guarantee period is 24 months except wearing parts. We provide spare parts at low price.
Why Choose Us
FAQ
Q:Are you direct manufacture?
A:Yes, we are professional in the field of construction machines for about 20 years. Our factory covers an area of 10000 square meters. Now there are 4 workshops to produce. We have advanced processing equipment like boring mill, laser cutting machine, turning lathe, milling machine and so on.
Q:Did you export before?
A:Yes, of course. our machines have great reputation in abroad.We exported to Cuba, Uzbekistan, Malawi,Outer Mongolia and other 13 countries. We provide complete service from consultation, product introduction, visiting the running site, sending machines, help clients to do custom clearance and install machines and follow usage feedback.
