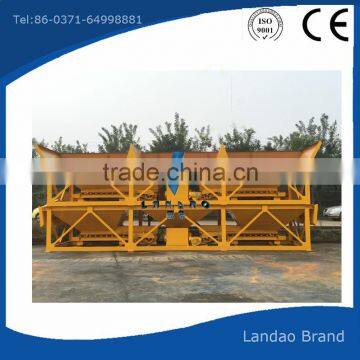

High Accuracy Sand Batching Machine With Weighting System

Name: High Accuracy Sand Batching Machine With Weighting System
Brand: Landao Brand
SKU: 125301059
Availability: InStock

US$ 2,400 - 6,000 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Henan, China

Brand Name:

Landao Brand

Henan Landao Machinery Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Tianjin Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Henan, China

Brand Name Landao Brand

Model Number PLD800 with 3 bins

Motor Power 3*3kw

Working Cycle Period 30-40s

Discharge Way Automatic

Outline Dimension 5400*1800*3010mm

After-sales Service Provided Overseas service center available

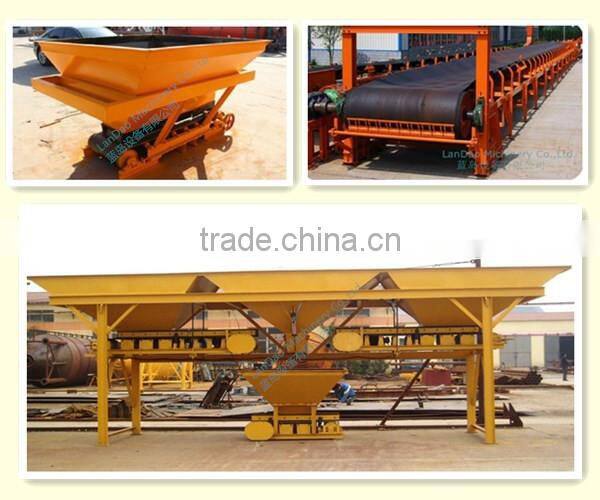

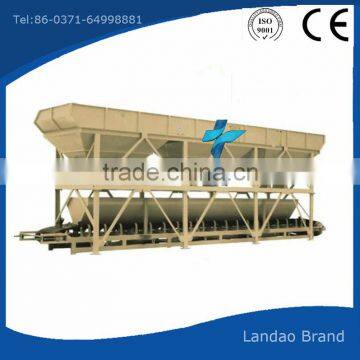

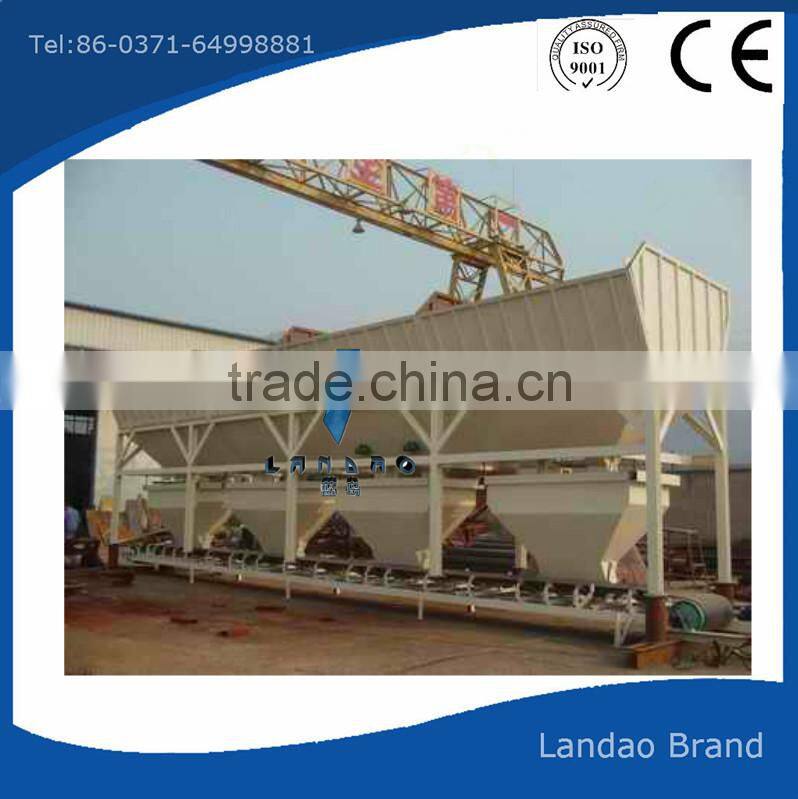

sand batching machine with weighting system

Brief introduction of sand batching machine

Sand batching machine is mainly used to batch aggregates, widely used together

with concrete mixer, brick machine, block machine etc.

Catagory of sand batching machine with weighting system according to measuring ways:We use two methods to measure the aggregates and powder.

One concrete batcher is separate measuring, the other is accumulative measurement.

(1)sand batching machine with weighting system In small concrete batching plant, because there is not many volume aggregates

for weighing, we usually equip accumulative weighing batcher

(2)accumulative weighing machine On the contrary, in bigger concrete batching plant, we usually equip weighing one independent

scale in every hopper, scaling every aggregate separately at the same time, high efficiency.

Specifications of sand batching machine with weighting system

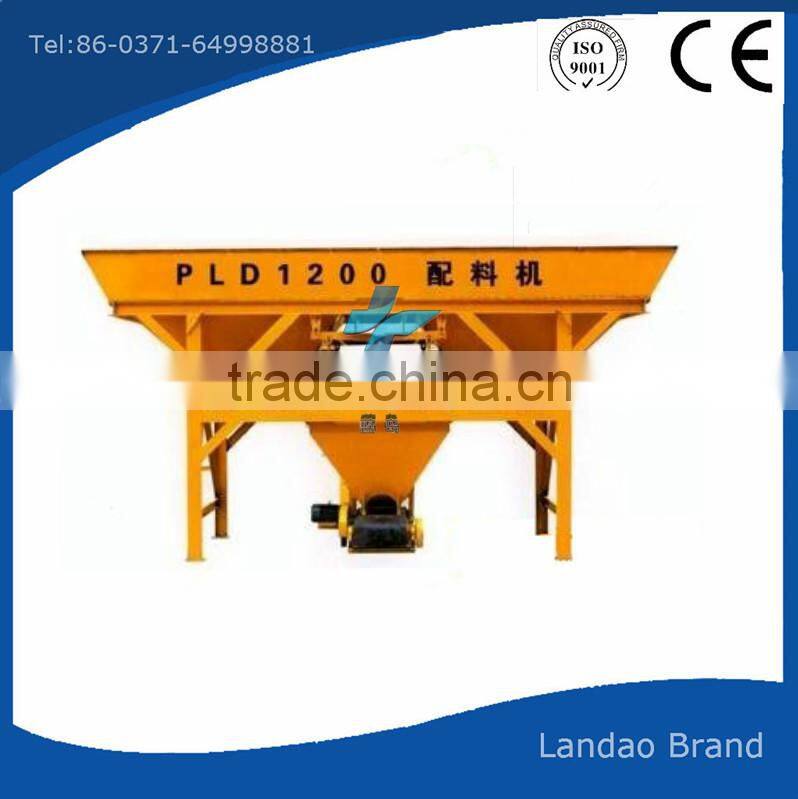

Model	PLD600	PLD8000	PLD1200A	PLD1200B	PLD1600	PLD2400	PLD3200	PLD4800
weighing hopper volume (L)	600	800	1200	1200	1600	2400	3200	4800
storage hopper volume (m3)	2*1.2m3	2*2m3	2*3m3	3*3m3	4*5m3	4*10m3	4*18m3	4*25m3
productivity(m3/h)	30	48	60	60	75	120	160	280
accuracy	±2%	±2%	±2%	±2%	±2%	±2%	±2%	±2%
Max weighting capacity(kg)	2000	2000	3000	3000	3000	4000	5000	8000
Quantity of materials	2—3	2—3	2—4	2—4	2—5	2—5	2—5	2—5
Charging height(mm)	1850	2430	2600	2600	2900	2900	2300	2300
Speed of feeding blet conveyor(m/s)	1.25	1.25	1.25	1.25	1.25	1.25	1.25	1.25
motor(kw)	3*2.2	3*3	3*3	4*3	5*4	11	15	18.5
weight	1360	2300	2800	410	560	8500	10500	14000
Dimensions(mm)	3800 1400 2200	5400 1800 3010	6000 1800 3090	8400 1800 3100	12000 2200 3260	10000 2200 4000	14500 3000 4600	15520 3900 5090
