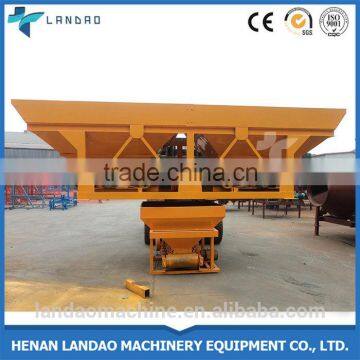

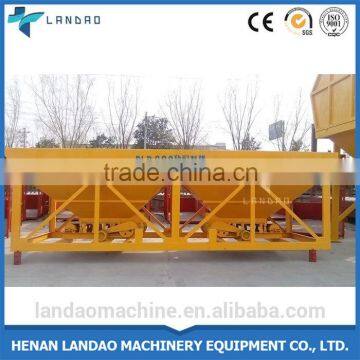

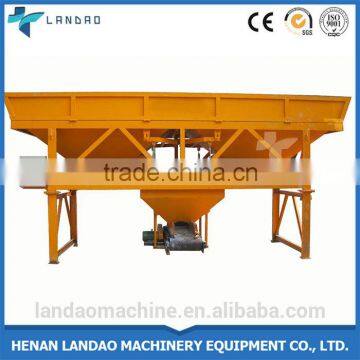

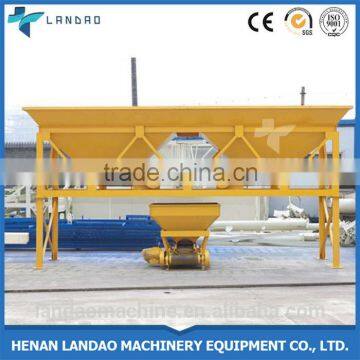

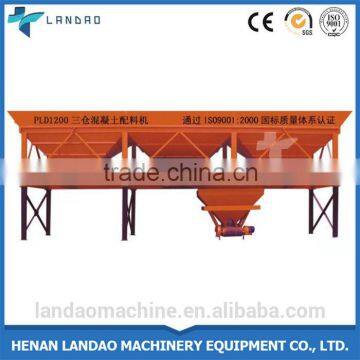

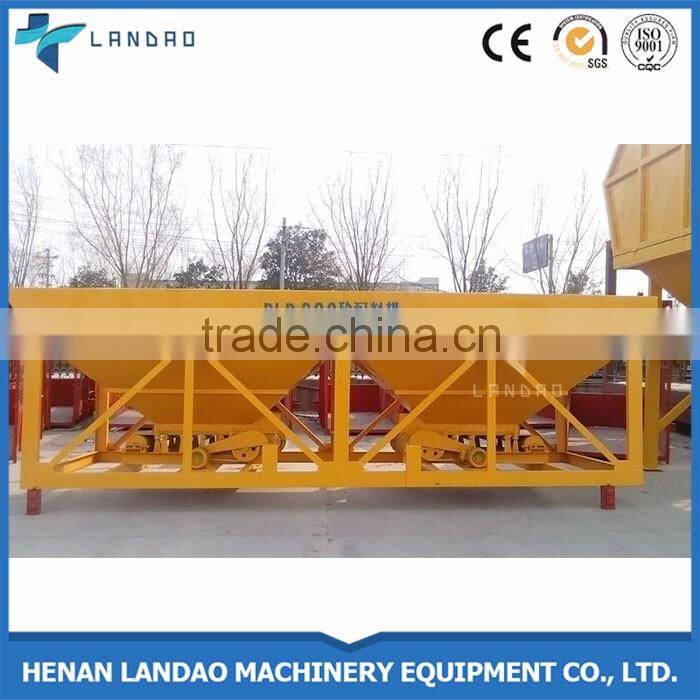

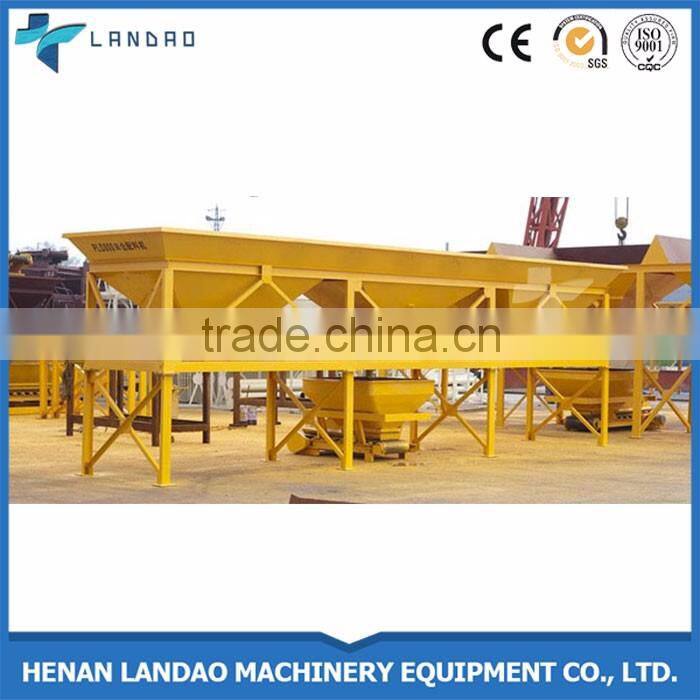

Accurate weighing PLD aggregate storage bin for batching plant
PLD series concrete batching machine has adopted electric weighing, automatically be
applied for correction and measure.The batching aggregates can be 2-4 types.
2 m³ Basic Storage Bins Volume, 1200L Weighing Bins Volume,3kw Motor. Batching
machine can be supplied as your requirements
Type |
PLD800 |
PLD1200 |
PLD1600 |
PLD2400 |
PLD3200 |
PLD4800 |
Weighing Hopper Capacity(L) |
800 |
1200 |
1600 |
2400 |
3200 |
4800 |
Storing Hopper Capacity(m3) |
2*3 m3 |
3*4m3 |
4*5m3 |
4*10m3 |
4*18m3 |
4*25m3 |
Productivity(m3/h) |
48 |
60 |
75 |
120 |
160 |
280 |
Batching Accuracy |
±2% |
±2% |
±2% |
±2% |
±2% |
±2% |
Max measuring(kg) |
3000 |
3000 |
3000 |
4000 |
5000 |
8000 |
Aggregate |
2—3 |
2—4 |
2—5 |
2—5 |
2—5 |
2—5 |
Feeding Height(mm) |
2430 |
2600 |
2900 |
2900 |
3200 |
3200 |
Speed of feeding(m/s) |
1.25 |
1.25 |
1.25 |
1.25 |
1.25 |
1.25 |
Power(KW) |
3*3 |
3*3 |
5*4 |
11 |
15 |
18.5 |
Total weight |
2300 |
2800 |
5600 |
8500 |
10500 |
14000 |
Outline dimension |
5400 |
6000 |
12000 |
10000 |
14500 |
15520 |
Why choose PLD aggregate bins?
1.By the computer control system batching sand macadam and other materials automatic.
2. It can work together with different concrete mixer models to make up different specification concrete mixing plant.
Henan Landao Machinery And Equipment Co., Ltd. is a manufacturer and trader specializing in the research, development and production of construction machinery for nearly 20 years.and mained manufacture concrete mixer,concrete batching plant,batch plant parts,dry mortar production line,steel bender machine,winch and so on.
We have gained a global sales network reaching in Colombia, Bolivia,Brazil,Venezuela, Ecuador, Russia, Philippines, Vietnam, Libya, Ghana, India and so on. The quality,the price,the delivery time will be the best.
Our purpose is to build up win-win principle with you.
3.The machine is composed of feeding system, weighing system and electrical system etc.
4.Main parts: conveyor and hopper. Conveyor is a belt feeder, with a precise weighing system(control lever & single sensor)
1.MOQ: 1 Set
2.Warranty: 12 months.
3.What's the lead time: 10 days
4.Can we change moulds? Yes
5.Area required: 1000M2
6.How much manpower needed:2-3
7.Raw material: fly ash, coal residue, coal wastes, chemical residue, sand, stone, cement,construction wastes, etc.
