Help CenterCheap Price Optocoupler TLP620 P620
Related Products
Specifications
cheap price Optocoupler TLP620 P6201.Brand: Toshiba
2.In Stock
3.ROHS Compliant

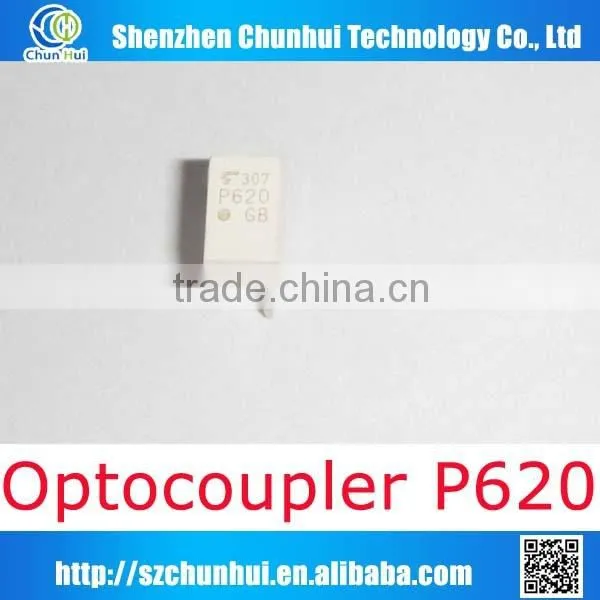

cheap price Optocoupler TLP620 P620
SPECIFICATIONS
| Datasheets | TLP620(-2,-4) Photocouplers/Relays Catalog |
|---|---|
| Product Photos | 4-DIP |
| Catalog Drawings | TLP62 Series Parallel Circuit |
| Standard Package | 100 |
| Category | Isolators |
| Family | Optoisolators - Transistor, Photovoltaic Output |
| Series | - |
| Packaging | Tube |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Current Transfer Ratio (Min) | 50% @ 5mA |
| Current Transfer Ratio (Max) | 600% @ 5mA |
| Turn On / Turn Off Time (Typ) | 3µs, 3µs |
| Rise / Fall Time (Typ) | 2µs, 3µs |
| Input Type | AC, DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 55V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.15V |
| Current - DC Forward (If) (Max) | 60mA |
| Vce Saturation (Max) | 400mV |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | 4-DIP (0.300", 7.62mm) |
Shenzhen Chunhui technology Co., LTD
=====================================
[Company Tenet]
"With the most affordable price, most efficient service making high quality Electronic Components suppliers.”
[Our Features]
(1)Fastest Lead Times
(2)Low Minimum Order
(3) Regular purchase with competitive prices and reliable supply
(4)Warranty is A Least 8 Months
(5)New Original & PB Free
[Payment Information]
1. T/T (Wire Transfer)
2. WESTERN UNION
3. PAYPAL
4. ESCROW
[Shipping]
1. We will ship the items within 3 working days after the payment confirmed.
2. We can ship to you by UPS/DHL/TNT/EMS/FedEx. Please contact us directly and we will use your preferred ways. For the Countries & Regions where EMS cannot deliver, please choose other shipping ways.
3. We are not responsible for any accidents, delays or other issues caused by the forwarder.
4. Any import fees or charges are on the buyer's account
[Refund & Replacement]
1. We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items).
2. If the items you purchase from our store are not of perfected quality, that is they don't work electronically to manufacturers specifications, simply return them to us for replacement or refund.
3. If the items are defective, please notify us within 3 days of delivery.
4. Any items must be returned in their original condition to qualify for a refund or replacement.
5. The buyer is responsible for all the shipping cost incurred.
If you have any other questions please feel free to contact us in any time !
=====================================
Our Components used in the PCB board (Real Photo):
