Hot Sale HSG Fiber Metal Sheet Laser Cutter China HS-M3015C
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Laser Type:
Fiber Laser
Applicable Material:
Metal
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen Guzngzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HS-G3015C 3000x1500mm 500W Raycus IPG Fiber Laser Cutting Machine PriceUS$ 45,000 - 45,000MOQ: 1 Set -
1mm/2mm/3mm Stainless Steel and 3mm/4mm/6mm Mild Steel 500W Fiber Laser Cutting Machine PriceUS$ 45,000 - 45,000MOQ: 1 Set
-
500w Fiber Laser Cutting Machine Price for 3mm ss 6mm ms Sheet MetalUS$ 55,600 - 55,600MOQ: 47600 Sets
-
High Quality Metal Cutting 500W Fiber Laser Cutting MachineUS$ 45,000 - 45,000MOQ: 1 Set
-
HSG Cnc Fiber Pipe Plate Laser Cutting Machine Price for 3 Meters PipeUS$ 10,000 - 100,001MOQ: 1 Set
Condition
New
Laser Type
Fiber Laser
Applicable Material
Metal
Cutting Area
3000*1500mm
CNC or Not
Yes
Cooling Mode
Water Cooling
Graphic Format Supported
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Place of Origin
Guangdong, China
Brand Name
Beyond Laser
Model Number
HS-M3015C
Certification
CE, ISO, Other, CE, ISO, FDA
After-sales Service Provided
Overseas service center available

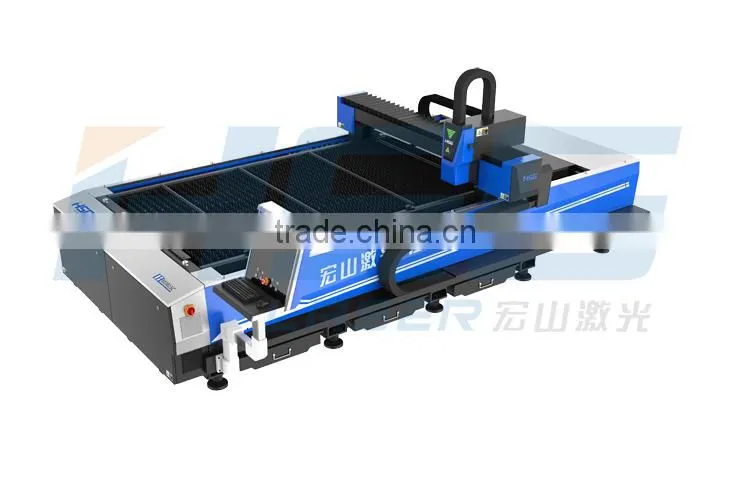

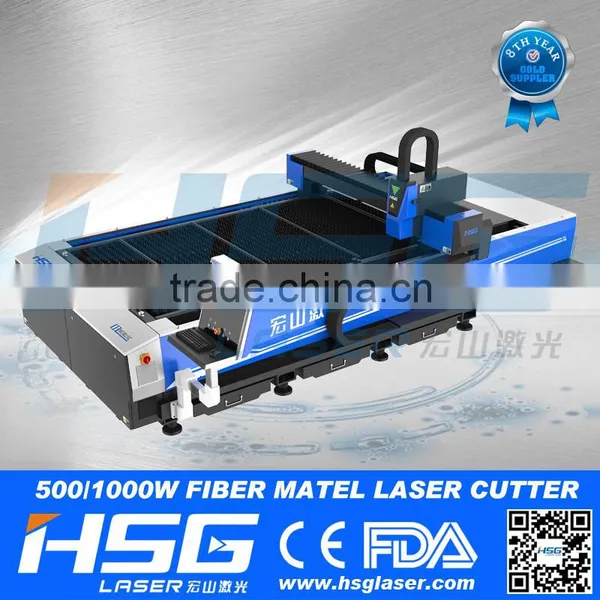

Hot Sale HSG Fiber Metal Sheet Laser Cutter China HS-M3015C
Product Description
Features of metal laser cutting machines
- The medium-power laser cutting machine with the highest precision in China, it can cut small metal bike design with size of half a coin and perfectly cut 6mm mild steel,120 holes can be cut within one minute.
- 600℃ heat treatment, 24 hours cooling in the oven, 8 meters gantry milling, accurate CO2 protection welding, to make sure 20 years usage without deformation.
- Using laser electrical cabinet integration design, cover small area , save space, minimalist design.
- Scrap car symmetrical design, both sides can clean up the waste; Put machine to the romm has no left and right requirements; Pneumatic lifter device to prevent the material from scratching.
- Specially used for cutting 0.5-6mm carbon steel, 0.5-5mm stainless steel, galvanized steel, electrolytic zinc-coated steel sheet, silicon steel and other kinds of thin metal sheets.1000W can cut 3mm aluminum and 2mm copper.
The fiber laser cutting machine technical parameters
80% of the parts are imported, mainly from USA, Germany and Japan.
| Product name | Hot Sale HSG Fiber Metal Sheet Laser Cutter China HS-M3015C |
| Working table(mm) | 1500*3000 |
| Laser power(W) | 500 |
| Weight(kg) | 4500 |
| Talbe load(kg) | 500 |
| Machine body size(mm) | 4600*2450*1700 |
| Max.Acceleration Speed | 0.3G |
| Transmitting System | Imported ball screw |
| Max running speed | 40m/min |
| Positioning Accuracy | 0.05mm |
| Working Power Supply | AC220V±10% 50HZ |
| X/Y PositionaI Accuracy | ±0.05mm |
| Running Temperature | 0°C-40°C |
| Max Acceleration | 0.3G |
| Formats | BMP,DXF,PLT,DST,CDR,GPEG |
| Applied Materials | Thin mild steel, stainless steel and other kinds of metallic sheets(non-ferrous metal not suggested) |
Production processing:
- Our raw materials are under strict quality control.
- After the worker finished the production, our QC will check the overall quality. If not pass our standard will rework.
- Passed the quality standard we will installing the machine and check the quality against then make sure each part is perfect.
- Then we will cleaning the machines and packaging it with anti-collision package edge, splint wooden box packaging (with steel wire reinforcement), packing.
Advantage:

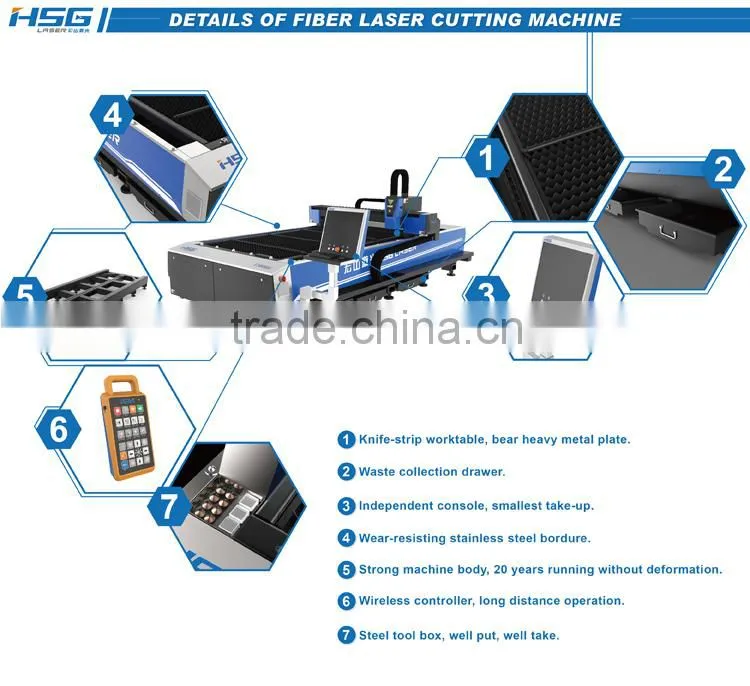

- Integration design without too much spare parts outside, smaller space, less costs.
- Taiwan imported ball screw and linear rail with world-famous brand electronics like Germany Schneider, Japan Omron & SMC on machine; Cabinet is well protected: Dust-proof, water-proof; Taiwan imported computer is special for industrial usage with long time working.
- 600℃ heat treatment, 24 hours cooling in the oven, 8 meters gantry milling, accurate CO2 precision welding, make sure 20 years usage without deformation.
- Waste collection device could be moved both sides which have no special request for machine location.
- Air cylinder helps to feed sheet metal easily and prevent scratching.
Gas Path
- Separated gas supply with independent pressure valve assures good cutting.
- Auto-change for gas when cutting different sheet metal.
- Pressure Alarm. When there is no enough gas with low pressure, alarm will be drawn your attention.
- Low pressure hole punching is special function.

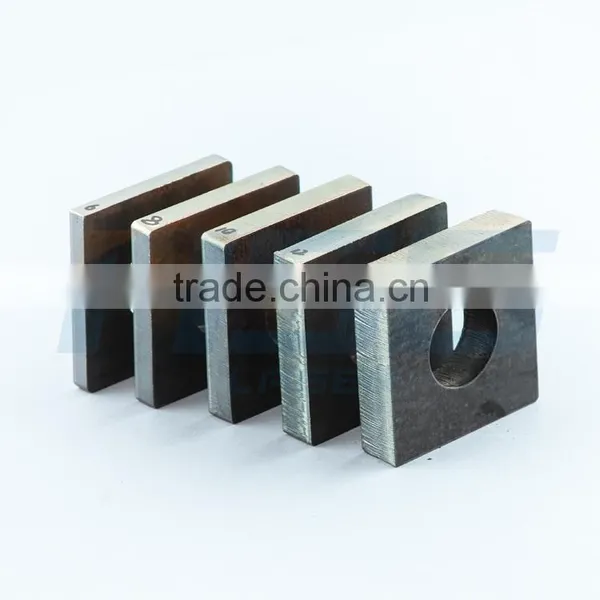

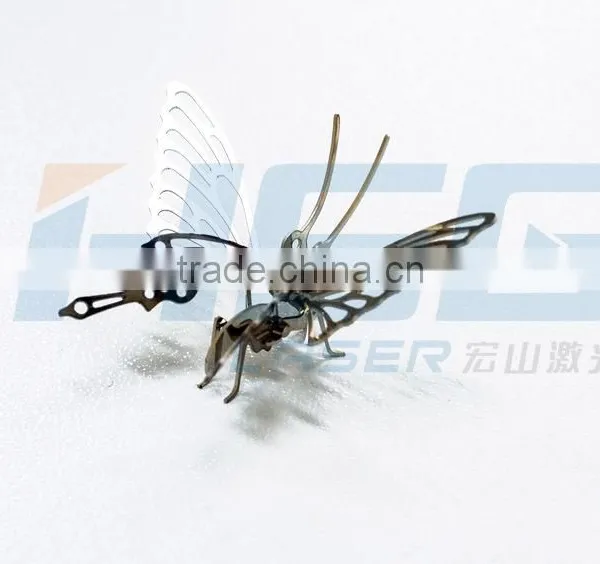

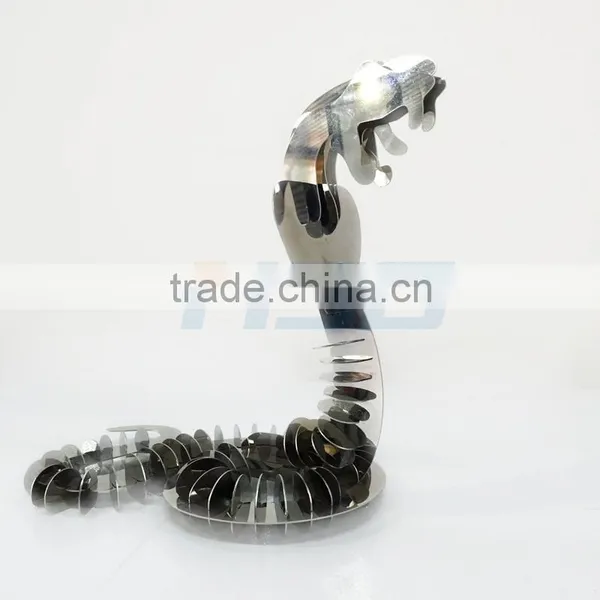

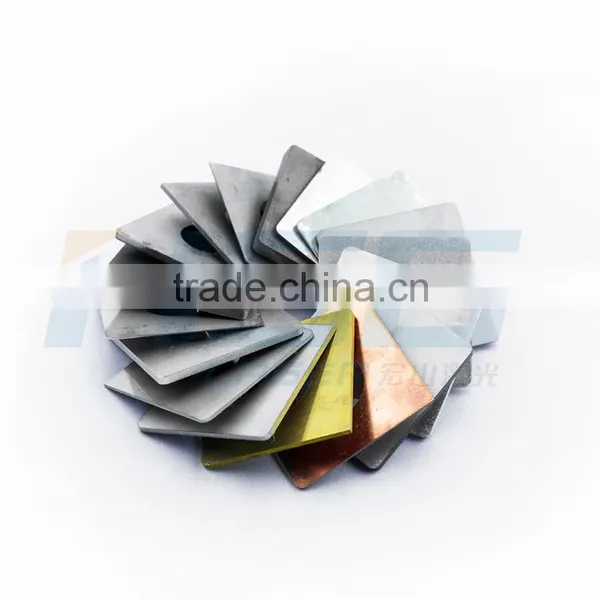

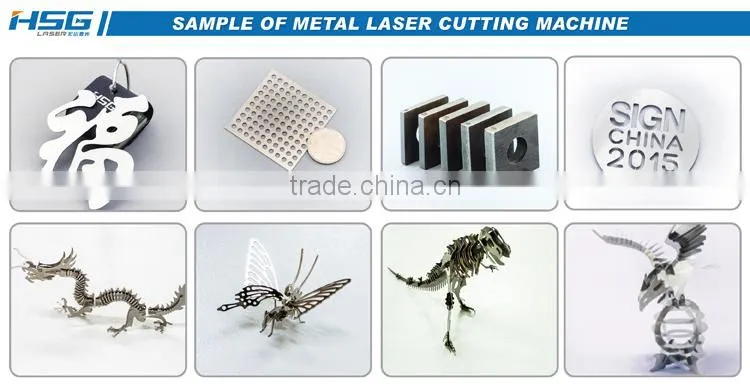

Metal Cutting Sample
Cutting Video
- /channel/UC7in9fXDf3TIkqEVIYSHAOQ
Quality Control
Quality control:
- Before the order can be confirmed finally, we would strictly check the material, dimension of the sample step by step.
- Our salesman, also as a order follower,would trace every phase of production from the beginning.
- We have a QC team, every product would be checked by them before packed.
- We would try our best to help clients solve problems.
FAQ
Packaging & Shipping
1.Strong waiter resit bottom in plywood---2.machine and sparts parts on the laser rnor protect by foam and fixed by protective film---4.All coverd by storng and hard protective film---5.Vacuum packing---6. inside steel frame proctor---7.plywood packing and steel strip outside fixed the box---8.finishing packing (a flat rack container can load 1 fiber laser).
