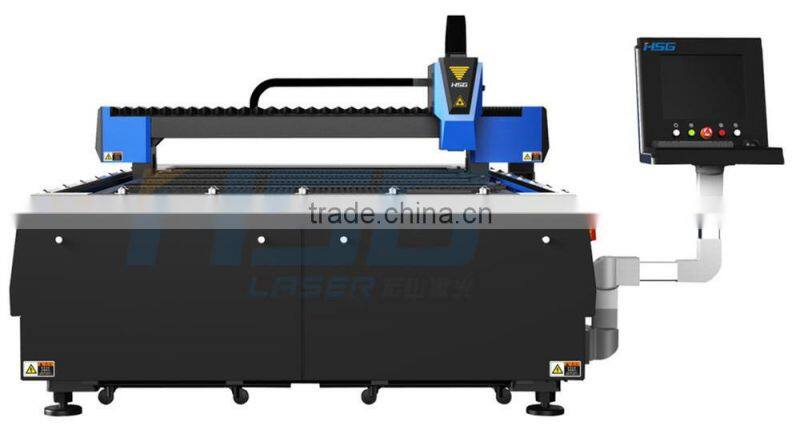

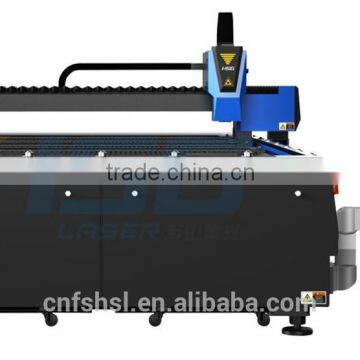

Cabinet Manufacture Fiber Laser Stainless Steel Laser Cutting Machine For 3mm Stainless Steel Cutting
HSG Laser
Just focus on laser cutting machine, for fiber laser cutting machine, there are 300watt, 500watt, 750watt, 1000watt, 2000watt, 3000watt.
Every part involved technical design
Vibration Stress Release Machine Body
Aluminum Cast Light Movable Gantry

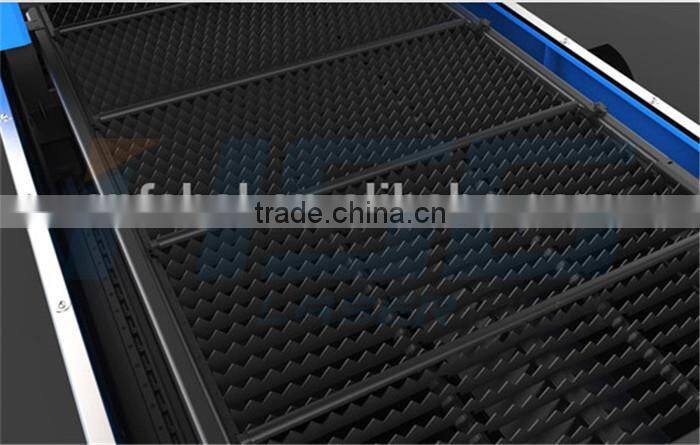

Strong and Well-organized Blade Strip

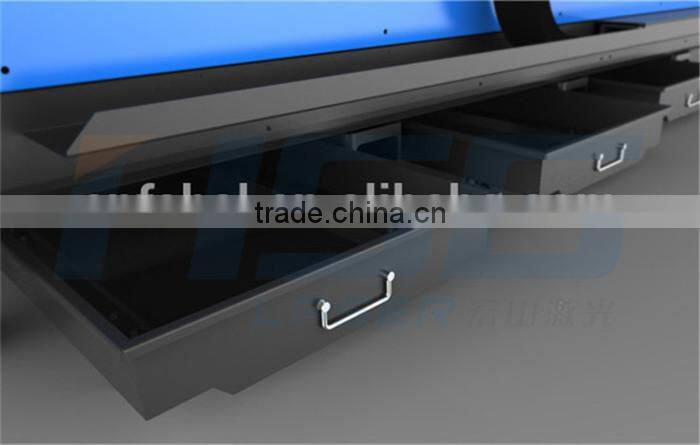

Three Dual-way Cutting Material Collectors
Applicable Metal Cutting (300W/500W/1000W/2000W)
Stainless Steel, Carbon Steel /Mild Steel, Aluminum Alloy, Brass, Red Copper, Galvanized Steel, Chrome, Canadium, Silver etc.
Smooth cutting finish and high precision cutting.
We are the only one in China who can cut such small size mini bicycle!

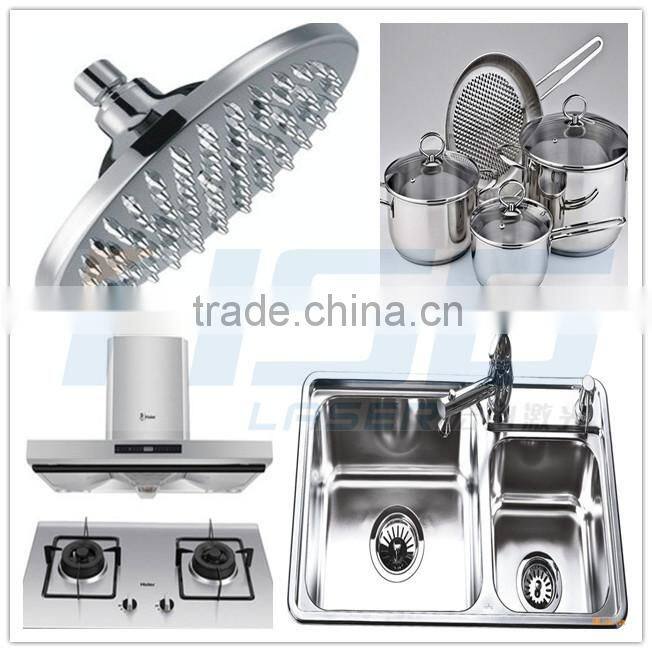

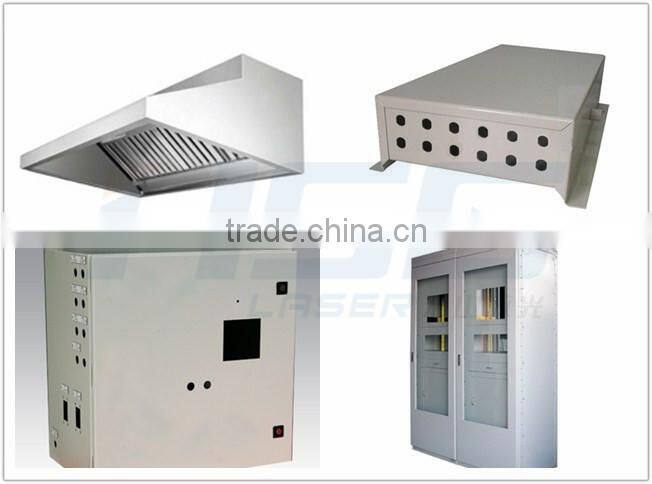

Application of Metal Laser Cutting Machine
Kitchen Ware/Sheet metal processiong/Aviation/Spaceflight/Electronics/Electrical appliances/Subway parts/Auto spare parts/Precision components/Ships/Metallurgical equipment/Elevator/Household appliances/Gifts and crafts/Tool processing/Adornment/Advertising/Metal processing etc.
Configuration of HSG Fiber Laser Machine Cutter
| 1. Germany ROFIN /Germany IPG/RAYCUS Laser Source |
| 2. Taiwan Hiwin Linear Guide Rail + Ball Screw |
| 3. Japan SANYO motor |
| 4. Germany Technology Laser Head |
| 5. SCU CNC Fiber Laser Control System |
| 6. 15 Years Manufaturing Experience for Machine Body |
| 7. Optional Germany Alpha Gears and Rack/Doubel Driving |
Technical Parameter
| Application | Stainless Steel Laser Cutting Machine |
| Laser Power | 500W |
| Maximum cut | 3mm stainless steel and 6mm carbon steel/mild steel |
| Working table | 3000*1500mm |
| Weight | 4500kg |
| CBM | 20 m³ |
| Machine body size | 4600*2450*1700mm |
| Transmitting System | Ball Screw / Rack & Pinion Double Drive |
| Computer Software | Cypcut from SCU |
| Max running speed | 50m/min |
| Positioning Accuracy | ±0.03mm |
| Working Power Supply | AC220V±10% 50HZ |
| X/Y PositionaI Accuracy | 0.05mm |
| Power Consumption | ≤8KVA |
| Running Temperature | 10°C-40°C |
| Max Acceleration | 0.3G |
| Formats | CDR,BMP,PL,GPEG,DXF,DST, AI etc. |
| Other Laser Power | 300W/750W/1000W/2000W/3000W for different thickness metal sheet cutting |
Machine Packing
standard wood case+iron plate+waterproof vacuum packing
Since year 2015
Experienced, Professional and Responsible
Aftersales Service
I. Satisfying after sales service for fiber laser cutting machine
24 hours call or email for customer service
vedio talk with our technician for technical assistance
II. Installation Service of fiber laser cutting machine
We dispatch technician to customer's factory for installation and preoperation of machines. Technician will do the sample cutting test after machine assembly with customers.
III. Training Service of fiber laser cutting machine
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.
IV. Quality Guarantee of fiber laser cutting machine
One year warranty for the whole machine. For our current customers, less aftersales
problems happened.
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making).
Offer a full solution for both metal sheet and metal pipe cutting
Customers's satisfaction supports us for continous growing.
Thanks for all the old customers and welcome new customers!
CE, FDA, ISO certificate approved
For Cabinet Manufacture Fiber Laser Stainless Steel Laser Cutting Machine For 3mm Stainless Steel Cutting, welcome to contact:
Ella Yip
Skype: hsglaser-ella
whatspp: +86 15217543214
QQ: 2190248883
Tel: +86 757 66833917
