High Precision Cut Acrylic 25mm With Smooth Edge Laser Cutting Machine in Large Size

Name: High Precision Cut Acrylic 25mm With Smooth Edge Laser Cutting Machine in Large Size
Brand: Beyond Laser
Availability: InStock

FOB Price

US$ 8,100 - 9,800 / Set

1 Set(Min. Order)

Port Shenzhen China
Payment TermsT/T L/C D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Laser Type	CO2
Engraving Area	1300*2500mm	Engraving Speed	64000mm/min
CNC or Not	Yes	Cooling Mode	Water Cooling
Applicable Material	Acrylic, Crytal, Glass, Leather, MDF, Metal, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood	Graphic Format Supported	AI, PLT, DXF, BMP, DST, DWG, LAS, DXP
Place of Origin	Guangdong, China	Brand Name	Beyond Laser
Model Number	HS-B1325	Dimension(LWH)	346020901270mm
Certification	CE, ISO, GS, SGS, UL, Other, CE, ISO, GS, SGS, UL, FDA	After-sales Service Provided	Overseas service center available

Packaging Details

standard seaworthy wooden case

Product Description

Specifications

20 years use without deformation
150w reci laser tube
60m/min runs
25mm acrylic,18mm wood,plywood
CE,FDA

high precision cut acrylic 25mm with smooth edge laser cutting machine in large size

HS-B1325 LASER MACHINES TECHICAL PARAMETER

Model	HS-B1325
Laser Tube Power	150W Co2 laser
Gross Weight	1200kg
Net Working Place	1300 x 2500 mm
Packing Size	3670×2070×1380mm.
Media Dimensions	1730 x 1180 x 1060 mm
Cutting thickness	25mm acrylic and 18mm wood cutting
Interface	USB
Standart Lens	2 inch
Highest running speed	48m/min
Controlling Motor	Step Motor
Graphic formats supported	PLT,DST,DSB,AI,DXF,BMP,JPG
Power	220V, 6A, 50/60Hz
Working Plate	Honeycomb
Compresor	Avoid to flameable and obtain to cooling
Gross Power	≤ 1500W
Repeated Position Precision	±0.01mm
Cutting precision	±0.1mm.Cutting D: 2mm cirles at speed of 15mm/s.
Focus Lens	100mm
water chiller	CW5000 water chiller
Min.Media Thickness	2mm circle fast speed cutting
Running belt	60mm Italian

HS-B1325, this model with step motor,high precision as high as ball screw,but the price is three times cheaper. This model had help us explore most agencies,most of them even once work in famous laser machine factory.70% of our agency told me they had rise their profit by this model.It can cut 15mm acrylic,18mm plywood and 12mm MDF,special for advertising industry.

HS-B1325 weight is 1200kg.most heavy than other factory laser bed.The is more heavy,machine run in a more stable.it can cut acrylic/wood/plywood pefectly with smooth edge.

Feature:

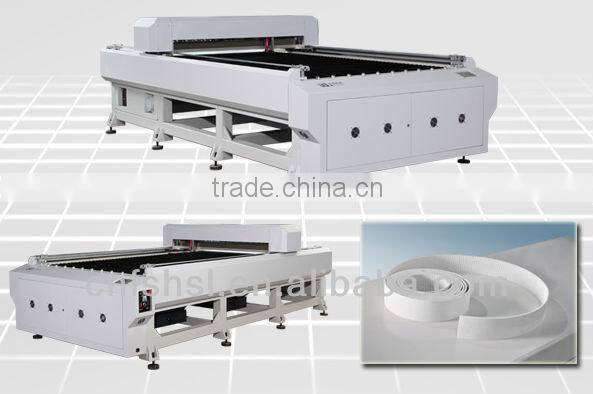

1)Italy imported steel-strip belt; precise gear wheels transmitting technology.

(The gear wheels move instead of the belt, to prevent sawtooth caused by vibration from the long belts.)

2) Patent upper blowing system together with normal lower blowing systems; almost 100% dust

can be extracted.

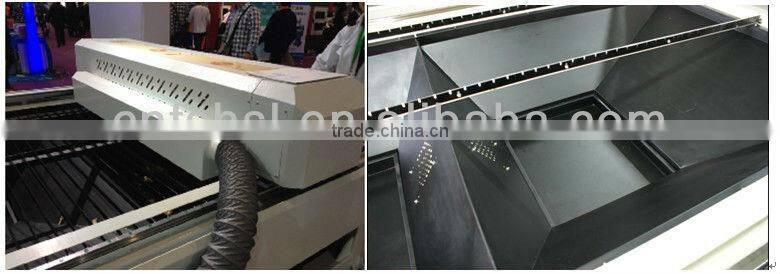

Upper blowing system Two-section lower blowing system:

3) Firm machine body heat treatment, high temperature annealing to eliminate its machine stress, quadrate pipes jointing and gantry milling.

Cutting precision: ±0.1mm

4) Precision as high as ball screw guide laser bed, ensures 20-year life without deformation.

by going through precise processing as bellows: A: machine body heat treatment; B:high temperature annealing to eliminate its machine stress; C: quadrate pipes jointing and gantry milling.

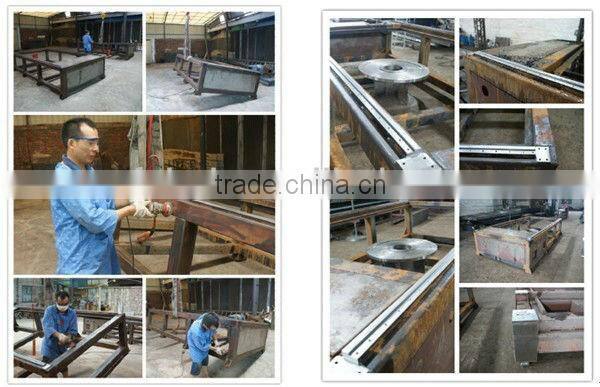

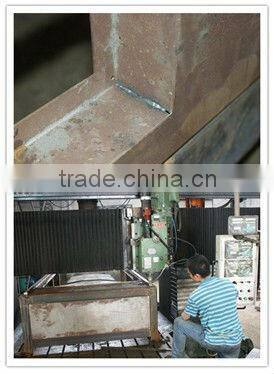

A: 600°C heat treatment, 24 hours cooling in the oven, 8 meters gantry milling, accurate argon shielded arc welding, to make sure 20 years usage without deformation.

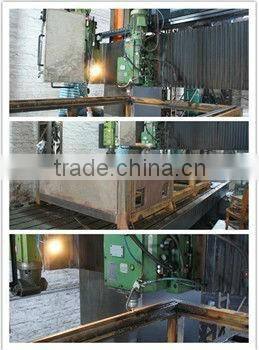

8 meters gantry milling: Accurate argon shielded arc welding:

Polishing and painting Profiling

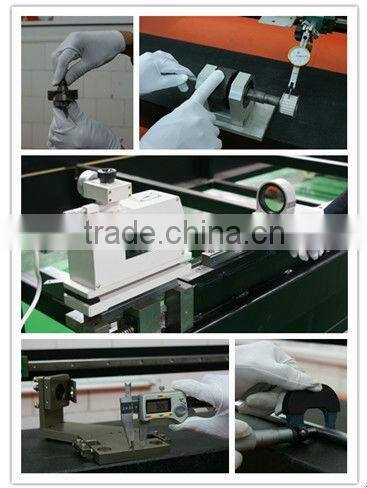

B: Use the collimator to install and adjust guide rail, precision: 0.01mm. Synchronizing wheels bouncing testing to avoid saw tooth when cutting and precision reaches 0.02mm.

C: The only one small power laser machine manufacturer to use 5 steps of laser tube testing technology.

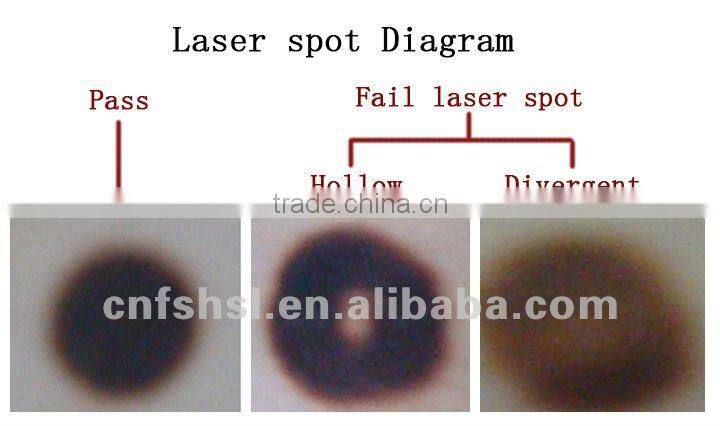

a. Laser spot testing

b. Power testing
c. Lifespan testing
d. Air pressure testing
e. On and off testing

D: Aging testing: 3 whole days and nights, running at speed of 400mm/s.

Precision of HS-B1325:

Remarkable high precision and applications:

1. Unique transmitting system, one-side belt driven by 3 bearing wheels, reducing strength consumption.

2. Cutting precision: ±0.1mm.

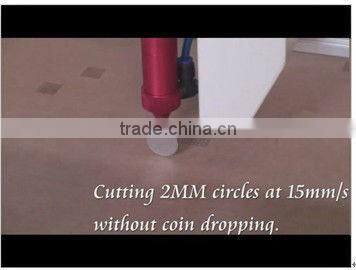

Cutting D: 2mm cirles at speed of 15mm/s.

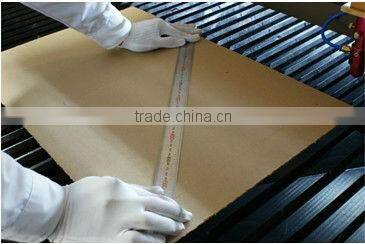

Cutting 1.1 *1.1m rectangle with same length of diagonals

3.Applications and specifications:

Precisely cutting 25mm thick acrylic and 12mm thick wood.

1) High-value-added LGP industry, profit margin is enhanced.

2) Signs acrylic letters up to 25mm.

3) 12mm thick plywood, speed.

How can we keep its stable quality?

With our Customers Relations Management (CRM) system, your machine has an ID and with presentation of our warranty card by our stamp, we will give you relative 3-year warranty by replacing new parts.

Why can we promise you the best warranty?

Aging testing: 3 whole days and nights, running at speed of 400mm/s.

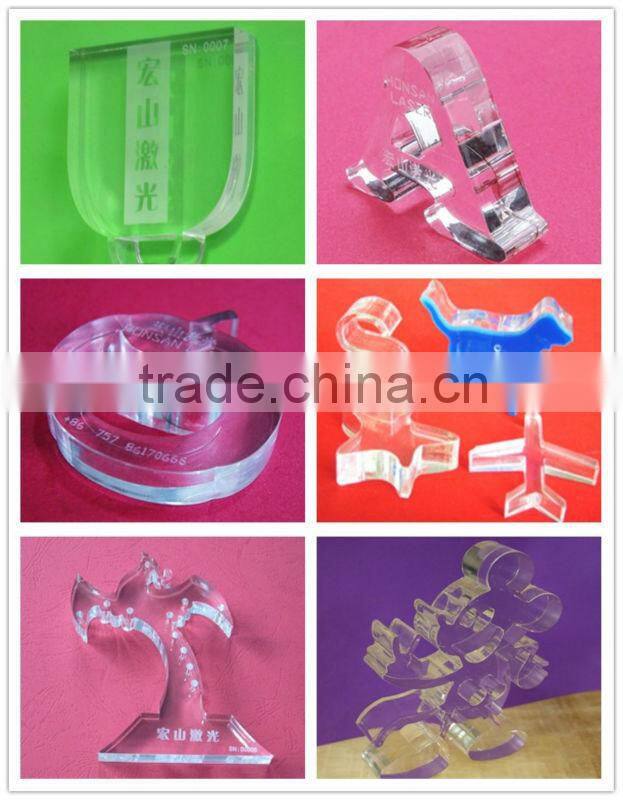

Samples:

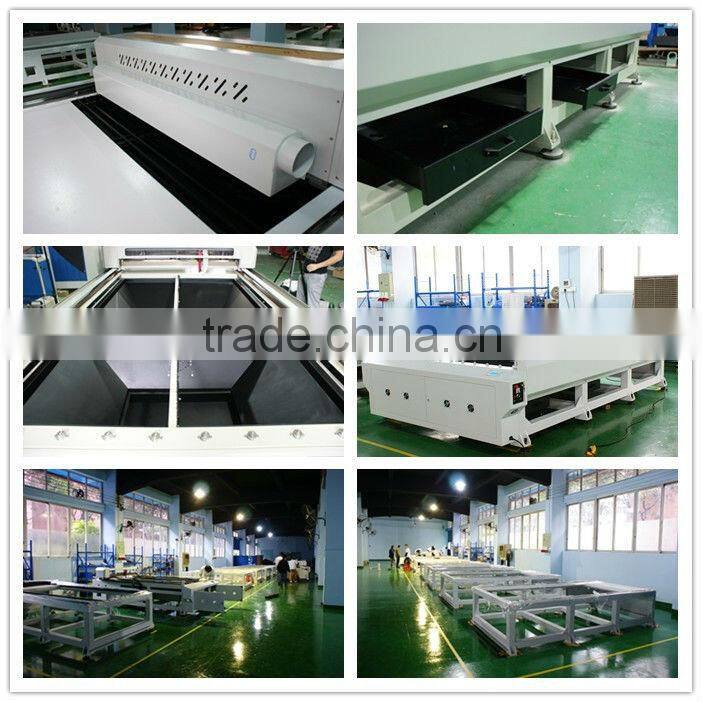

Machine Details:

China Beyond Laser specialized in manufacture laser cutting machine and laser engraving machine,with the good quality and the most advantageous price. All parts will be tested by strictest quality control standard. Contact us,we can help you expand

your market!!!

For more details,pls contact Karen freely
