Home > Manufacturing & Processing Machinery > Laser Equipment > Laser Cutting Machine > New Laser Cutting Machine ce Italian Imported Belt With Stepper Motor HS-B1530

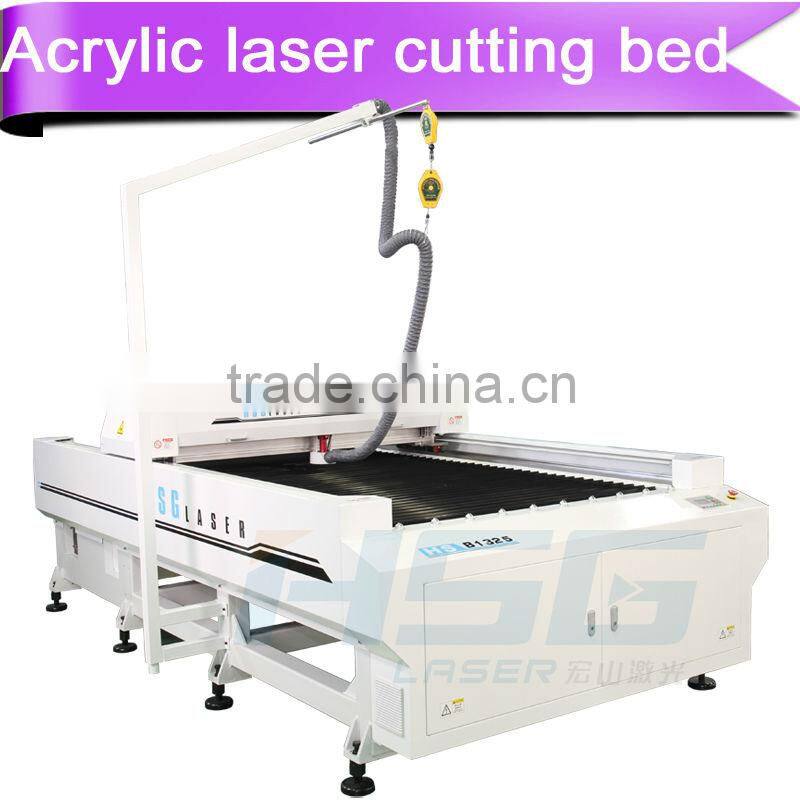

New Laser Cutting Machine ce Italian Imported Belt With Stepper Motor HS-B1530
US$ 7,500 - 12,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Laser Type:
CO2
Applicable Material:
Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1300*2500 Working Table Acrylic Mirror Letter Laser Cut Machine HS-B1325US$ 7,500 - 12,000MOQ: 1 Set -
China Beyond Laser Cutting 30mm Acrylic and 2mm Stainless Steel Co2 Laser Cutting Machine Looking for DistributorUS$ 8,500 - 34,000MOQ: 1 Set
-
Multitasking Wood Die Cutting Laser Cut Machine for Labels,signs HS-B1530MUS$ 7,500 - 12,000MOQ: 1 Set
-
15mm Plywood Laser Cutting Machine for Die Boards Making HS-B1530US$ 7,500 - 12,000MOQ: 1 Set
-
Widely Used Laser Cutting Engraving Machine From Foshan HSG Laser HS-LGP1325NegotiableMOQ: 1 Set
Condition
New
Laser Type
CO2
Applicable Material
Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood
Cutting Thickness
25mm thick acrylic laser cutting
Cutting Area
1500*3000mm
Cutting Speed
36000mm/s
CNC or Not
Yes
Cooling Mode
Water Cooling
Control Software
CorelDraw, AutoCAD
Graphic Format Supported
AI, PLT, DXF, BMP, DST, DWG, DXP
Place of Origin
Guangdong, China
Brand Name
Beyond Laser
Model Number
HS-B1530
Certification
CE, ISO, UL, Other, CE, ISO, UL, EMC, FDA, BV
After-sales Service Provided
Overseas third-party support available
Specifications

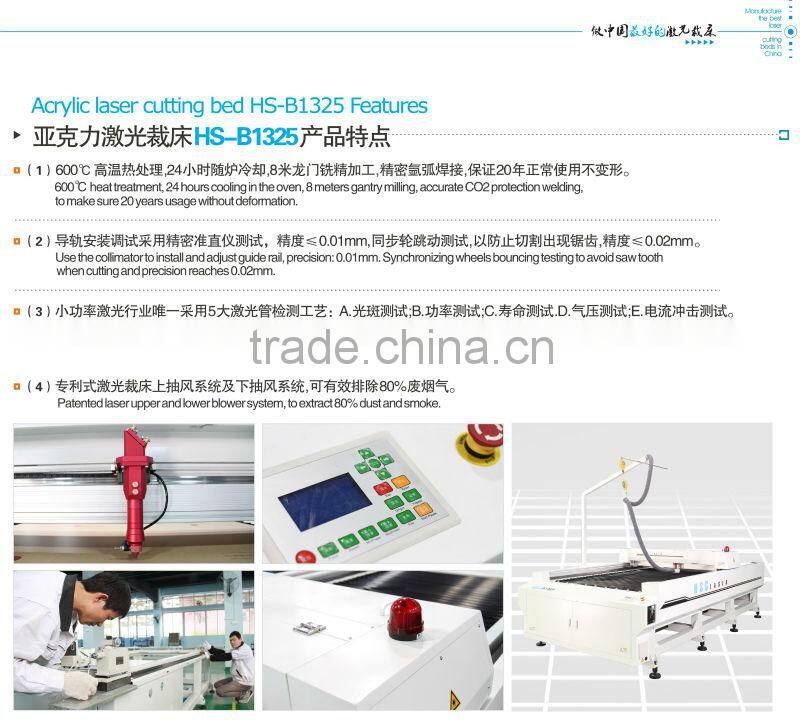

1.New laser cutting machine ce Italian Imported Belt with Stepper Motor 2.600 centigrade heat treatment,8 meters gantry milling
| Names | B series Acrylic Laser Cutting Bed models | ||
| HS-B1325 | HS-B1525 | HS-B1530 | |
| Work size(mm) | 1300×2500 | 1500×2500 | 1500×3000 |
| Power | 135W | ||
| Volume m3) | 13 | ||
| Weight(kg) | 1000kg | ||
| Exterior dimension(mm) | 3470*1892*1178 | ||
| Wooden case dimension(mm) | 3570*1970*1178 | ||
| Transmission model | Steel belt is fixed, the gear transmission | ||
| The max free speed | 48m/min | ||
| Reprecision | ±0.01mm | ||
| Working power supply | AC220V±10% 50HZ | ||
| PositionaI accuracy | 0.02mm | ||
| Total power | ≤ 1800W | ||
| Temperature | 0°C-40°C | ||
| Humidity | 5-95% | ||
| Formats | DXF,AI,PLT,CDR,BMP,PLT,DST | ||
| Applied Materials | Apply to cut acrylic, LED light panels, MDF fiber board, composite board, advertising decoration materials, electrical panel such as cutting, designed for high precision cutting of the user | ||
| 1.If there is no special requirements,the ray intensity should be less than 80 percent,thus to avoid the tube aging quickly. |
| 2.Water temperature should be examined at all times during the working process.Once the water turns to warm,please change it fight away(the right way of changing water is to get out of some some hot water and fill in cold water. |
| 3.Water tank ,water pump and water inlet and out rubber tube should be cleaned once every four days. |
|
4.focal lens should be cleaned after removal.And the lens should be fixed firmly but not too tightly for fear of break after cleaning. |
| 5.The minimum amount of cooling water should not be less than 30L.Make sure that the water can submerge the submersible pump. |
| 6.Do not use circulating water of por quality ,because it may affect the laser power seriously and shorten the service life of laser tube .The manufacturer is not responsible for repairing the laser tube damaged by the using of poor-qualified water.It is suggested to use purified water or distilled water. |
