20 Years Use Without Deformation Euro Laser Cutting Machine HS-B1525

US$ 8,500 - 34,000 MOQ: 1 Set

Key Specifications

Condition:

New

Laser Type:

CO2

Applicable Material:

Acrylic, Crytal, Glass, Leather, MDF, Metal, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood

Foshan Beyond Laser Technology Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen/Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Laser Type CO2

Applicable Material Acrylic, Crytal, Glass, Leather, MDF, Metal, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood

Cutting Thickness 12mm MDF,30mm acrylic,2mm stainless steel metal cutting machine

Cutting Area 1500*2500mm

Cutting Speed 36000mm/min

CNC or Not Yes

Cooling Mode Water Cooling

Control Software RDC6332G

Graphic Format Supported AI, PLT, DXF, BMP, DST, LAS, DXP

Place of Origin Guangdong, China

Brand Name HSG

Model Number HS-B1525M

Certification CE, ISO, Other, CE, ISO, FDA

After-sales Service Provided Overseas service center available

Specifications

1.ensure 20 years use without deformation
2.cutting acrylic,LED and LGP,MDF,plywood
3.euro laser cutting machine

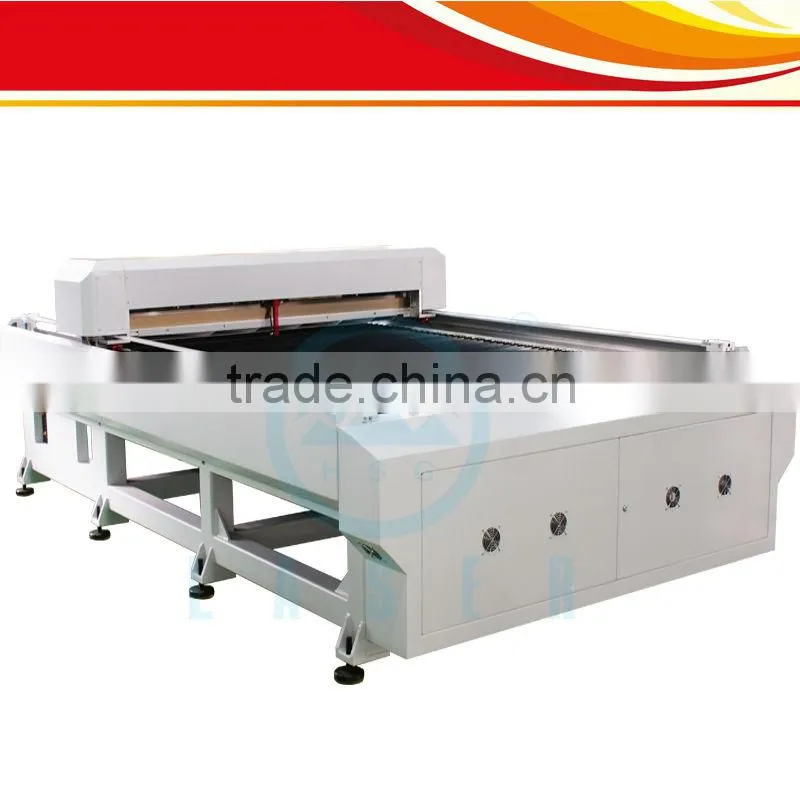

Product picture

Technical detail

Product name	20 years use without deformation euro laser cutting machine HS-B1525
work size(mm)	1500×2500
power	60W-200W
volume m3)	13
weight(kg)	1500kg
Exterior dimension(mm)	347018701200
wooden case dimension(mm)	357019701300
Transmitting System	Movable gantry, middle driving
The max free speed	24m/min
reprecision	±0.1mm
working power supply	AC220V±10% 50HZ
positionaI accuracy	0.1mm
Total power	2KVA-3KVA
temperature	10°C-35°C
humidity	5-85%
formats	CDR,BMP,PLT,GPEG,DXF,DST.etc
Applied Materials	Thin carbon steel, stainless steel(0.5-2.0mm), acrylic and other non-metal materials

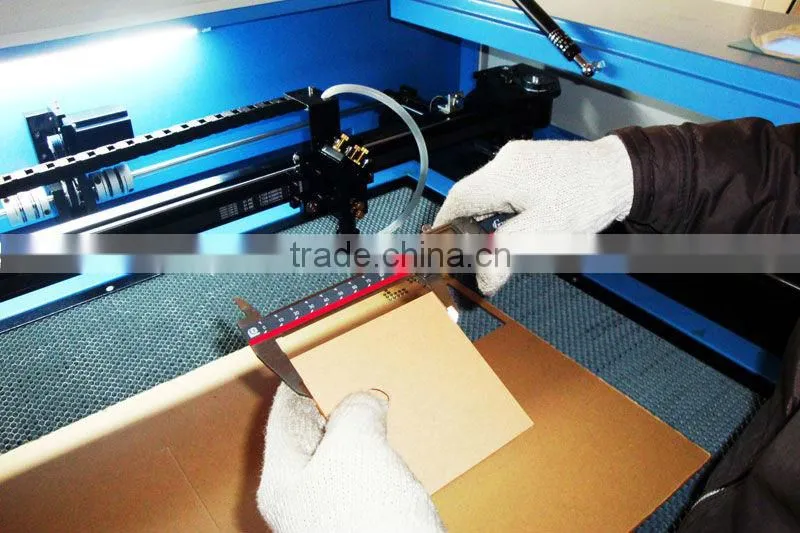

Samples

Multifunctional Laser Bed For Metal%Non-Metal Materials

Why choose HSG Laser?

1.A variety of choices
HSG laser cutting machines can be customised for your specific industrial or educational applications and our machines can easily be adjusted for a wide range of materials.We have developed laser machines of eight series and more than 60 models and have reached year's production capacity of more than 2000 sets.
2.Customized service
HSG laser provide customized service including:a.Technical service b.Application consulting right from the start c.Training from our engineer d. 1-year warranty and no express fee
3.Excellent quality
a.The only one manufacturer carrying out 100% testing in the whole Chinese laser industry to ensure high degree of accuracy.
b.Safe and clean:Upgrade hand-held terminal control system and optional ventilation installation to ensure more user-friendly operation and more flexible control mode.
c.Skillful team:we have the engineer from China's first laser machine research and development team.Also have experienced management team served this market for more than 10 years.
