Help CenterDimmable 300*300mm, 20W, DC24VSquare Panel
Related Products
Specifications

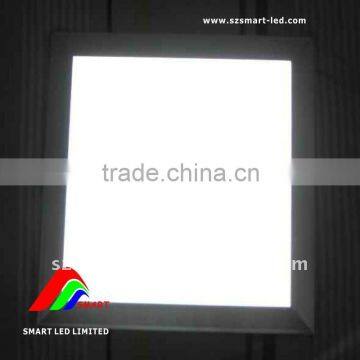

Dimmable 300*300mm LED panel lightEpistar chip
Super thin, high efficiency
Warranty time: 2 years
Certification:CE&RoHS
Technical parameters
1> LED type: SMD3528
2> LED Quantity: 174pcs
3>Voltage Input AC85-265V
4> Power consumption 20W
5>Color Temperature:2700-7000K
6> Luminous Flux: 850-950 LM
7>Color Rendering Index: 65-75Ra
8>Beam angle : 120°
9> Power Factor: ≥0.95
10> Efficacy: ≥85%
11> Lifespan: 50,000 hours
12> Certificates : CE,RoHS
Iluminanace Diagram
Height(m) |
Illuminance(Lux) |
1.0 |
250 |
1.5 |
180 |
2.0 |
125 |
3.0 |
55 |
Feature
1. Low power consumption, High power efficiency
2. No UV or IR radiation
3. Products are compact of aluminum material.
4. Superior thermal performance, high applicability
5. Enviromental friendly:NO UV infrared and other radiation ,shock vibration resistant
6. Imported light source ensure high brightness,
7. External constant- current driver, stable performance.
8. Color: white, warm white
Installation Instruction
1.Turn off the power switch.
2.Connect the input end of the power electrivity(85V-265V),and make sure exposed brass wires.
3.Connect the DC plug of the power output end with the DC socket of light inout end,and make sure the connect is fast.
4.Fix the light and the power differently in an appropriate position.
5.Turn on the power switch.
Application:
The LED panel light is ideal replacement for the traditional downlights,it has wide range of application such as:
1. Jewelry counter lighting
2. Commercial lighting
3. Restaurant, hotel
4. Artwork lighting
5. Display case
6. Amusement park
7. Home and office lighting.
