KT11S DTH Drilling Rigs, Full hydraulic integrated drill equipment
KT11S Type open hole drill is based on developing and producing DTH drills for many years, according to the demand of large open-pit mine, and is an elaborate design new drilling equipment. Rotary drilling rig model KT11S drill rig, we achieve world class level performance in aggregate quarrying.
1. Safety and stability of the mobile mechanism.
KT11S dth drilling rig : low gravity , advanced automatic balance system , high-power motor drive , brakes and walk manipulated mechanism choi linkage mode ,unique resistance from chain device
2. Centralized control operation.
KT11S small drilling rig machine design has the advanced hydraulic system and a complete function pneumatic system, all movements are centralized control, convenient operated.
3. Strong propulsion, rotary organization.
Rotary gear reducer, KT11S Integrated Drilling Rigs using the planet round transmission, speed, low torque force. By adjusting the rotary valve pressure makes speed and torque according to need to arbitrarily regulate, and to ensure the best DTH drilling efficiency.
4. Flexible drill arm.
KT11S borehole machine use mobile drilling of arm, by controlling the oil cylinder telescopic can dip and level of drilling hole high-speed height, expanded the scope of drilling, improve the product adaptability.
KT11S technical parameters | |||
Hardness of rock |
f=6-20 |
Car-riage pitch Angle |
114° |
Diameter of hole(mm) |
105-125 |
Car-riage angular |
Right 36° left 35° |
Depth of the hole (m) |
18 |
Car-riage lateral level swinging Angle |
Right 12°~93° |
speed(Km/h) |
2.2 |
Re-entry arm angular |
Right 45° left35° |
Grade ability |
22° |
The leveling Angle frame |
Up 10° down 8° |
Road clearance(mm) |
430 |
Apush length(mm) |
3000 |
Grade ability |
20 |
Compensation length(mm) |
1200 |
Diesel motor |
Cummins 6LTAA8.9-C325 |
impactor |
HD45 |
Displacement (m³/min) |
18 |
drill pipe |
φ76×3000mm |
Exhaust pressure(bar) |
17 |
Connect stem implement ability |
5+1 |
Dimension (mm) |
8890×2580×3655 |
Catching dust way |
Dry type (hydraulic drive whirlwind layer streaming) |
Weight (Kg) |
13500 |
Connect stem way |
Automatic picking discharge stem |
Turning speed (r/min) |
0-63 |
Since artery card way |
Electro-hydraulic vacancy prevent card |
Rotary torque (N·m) |
2800 |
Pipe lubrication method |
Automatic spray oil lubrication |
Biggest push pull(N) |
32000 |
Drill pipe thread protection |
Equipped with floating street protection pipe threads |

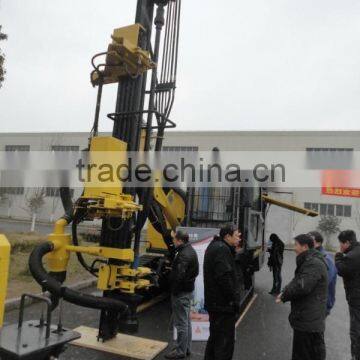

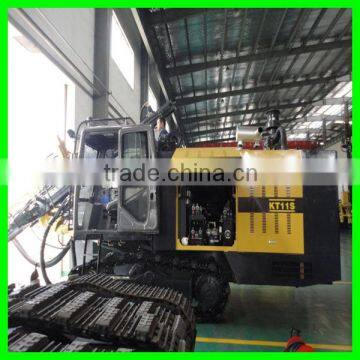

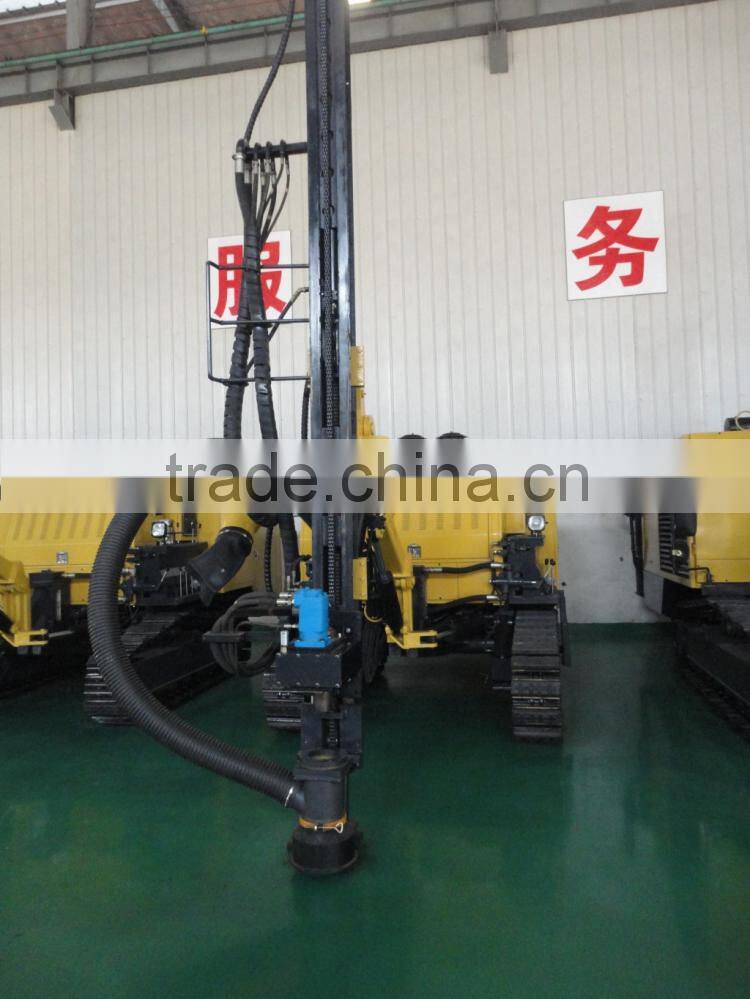

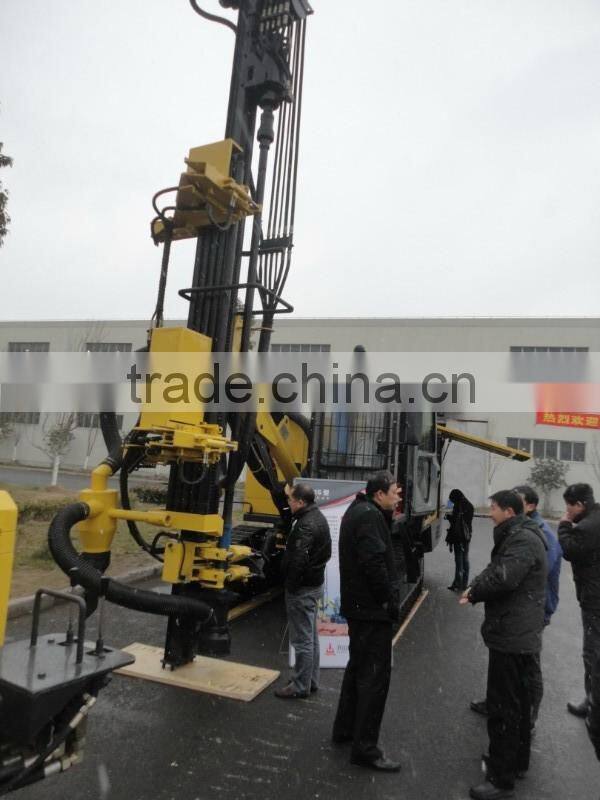

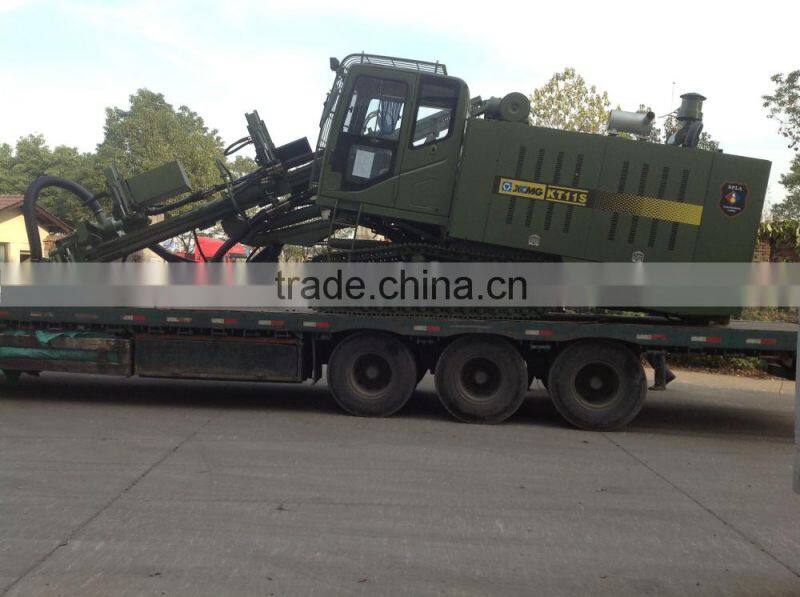

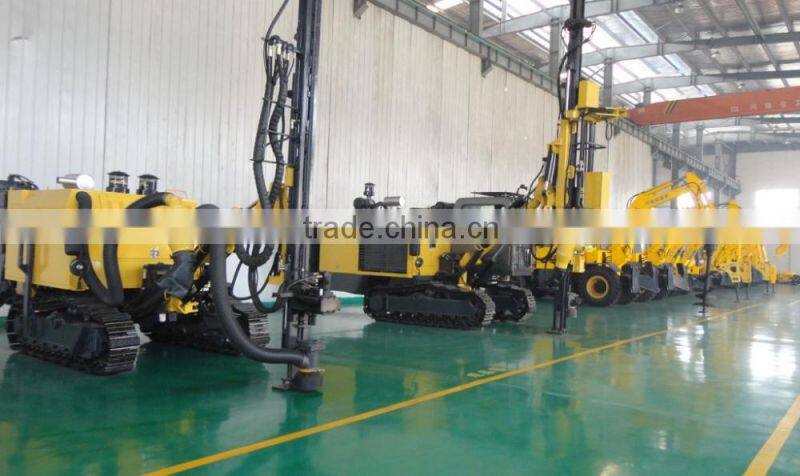

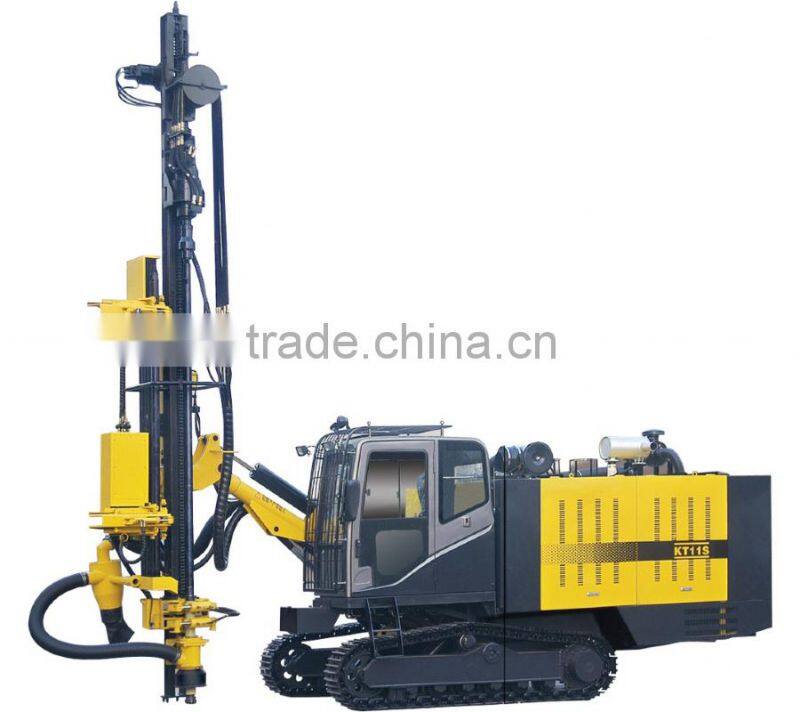

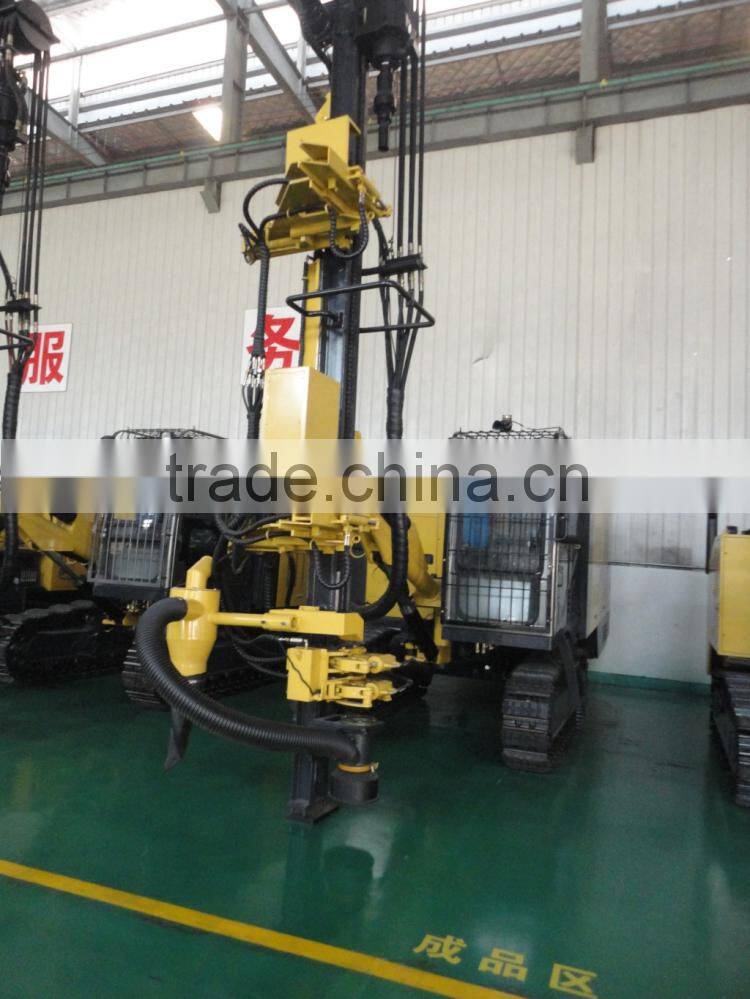

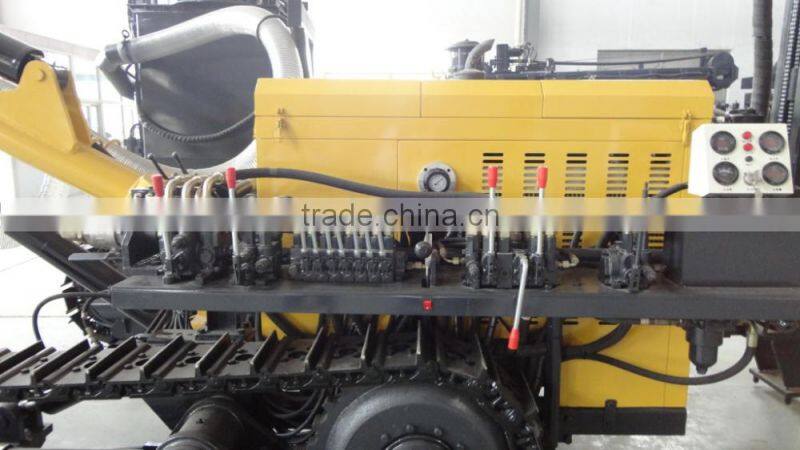

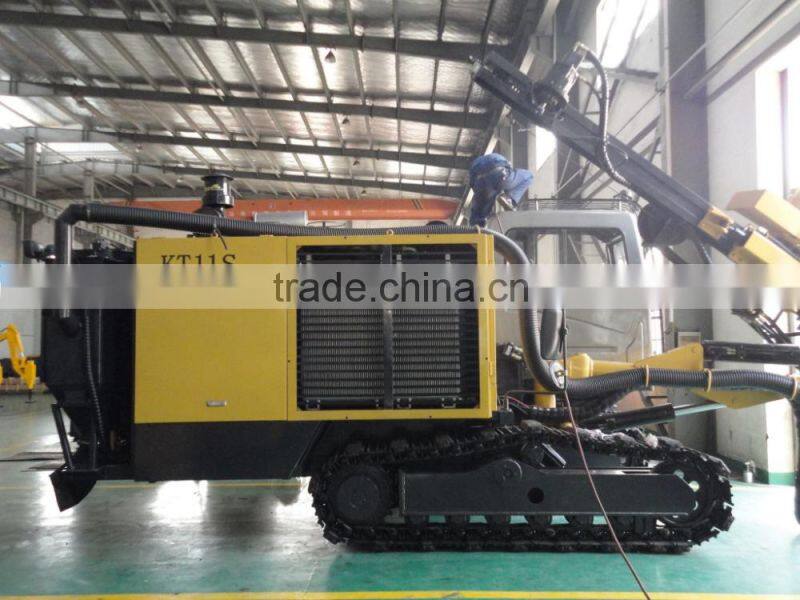

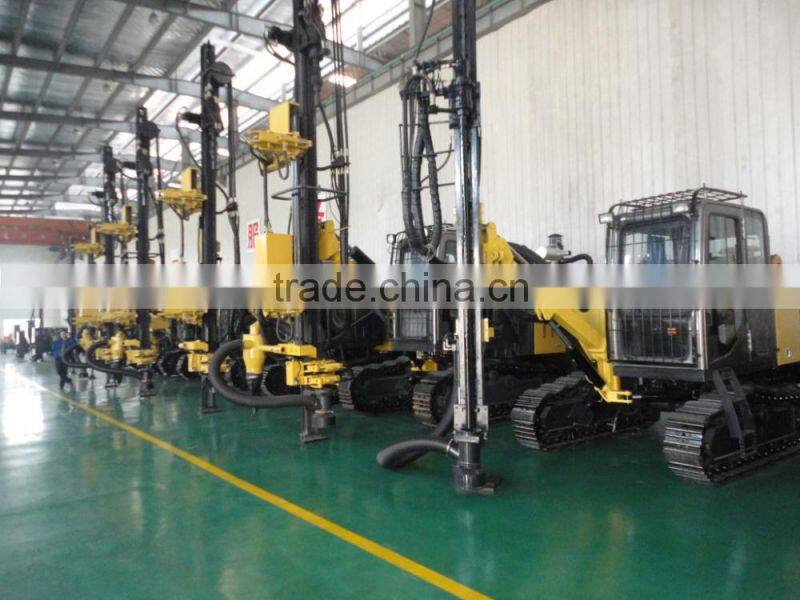

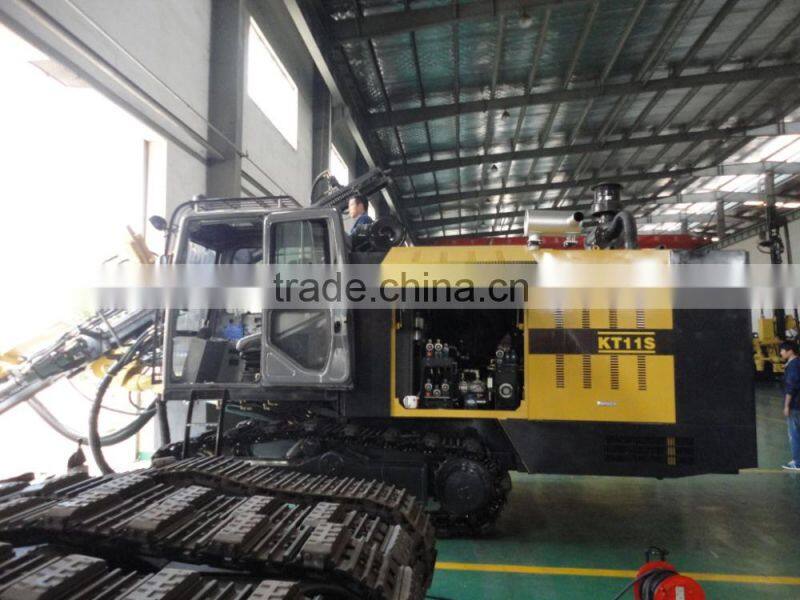

Pictures of KT11S Integrated Drilling Rigs,multi purpose drilling rig
1.Kaishan group Co., Ltd was founded in 1956.
2.Kaishan group Co., Ltd is the worlds largest drilling machine manufacturing enterprises, the largest in Asia,the world`s third air compressor manufacturing enterprises, and the largest drilling equipment manufactures.
3.Good service ,competitive price, high quality, fast shipping and perfect after after sale service.
Welcome to visit our factory and would like to start the cooperation with you in the near future.
