0-200m deep bore hole drill rigs ,geotechnical drilling machine for water well
KW10 well drilling rig is a lightweight, efficient, multi-function device of surface drill rig, which is mainly applied to drill wells, agricultural irrigation wells, geothermal air conditioners hole and other uses of the well hole especially for the water of the mountains and rock terrian project.
Geotechnical drilling machine for water well could drill in the different stratum, drilling up to 120m.
KW10 small hydraulic drilling rig is a new hydraulic technology, supporting high torque hydraulic motor rotation and large-bore hydraulic cylinder with brand name plant multi-cylinder engine to power the hydraulic system, two air filter and air compressor inlet, to extend the life of the diesel engine.
Independent module design, KW10 well drilling rig could be loaded on a truck to increase its mobility. The two steps of rotating and pushing speed to meet the soil and rock different, combination need.
Technical parameter of KW10 0-200m deep bore hole drill rigs
Model |
KW-10 |
KW-20 |
Motor(Yuchai) |
YC4D80 |
YC6B125-K10 |
Dynamic Parameter |
58kW/2400rpm |
92kW/2200rpm |
Interval(mm) |
245 |
280 |
Outrigger Cylinder(mm) |
460 |
1000 |
Striker |
DHD360(DHD380) |
DHD360(DHD380) |
Climbing Capacity |
15° |
25° |
Drilling Depth(m) |
120 |
200 |
Working Air(Mpa) |
1.05-2.46 |
1.05-2.46 |
Total Gas(m³/min) |
16-30 |
16-30 |
Drill Pipe Diameter(mm) |
Φ89 |
Φ76,Φ89 |
Length of Drill |
3000 |
3000 |
Drill Bit Diameter(mm) |
Φ115-254 |
Φ115-254 |
Push cylinder(mm) |
1750 |
2400 |
Lifting Force(N) |
70000 |
95000 |

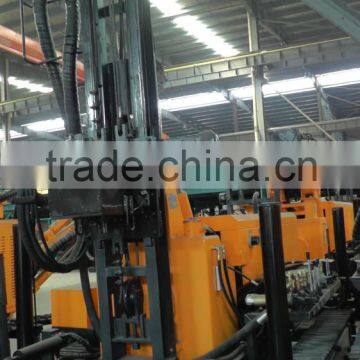

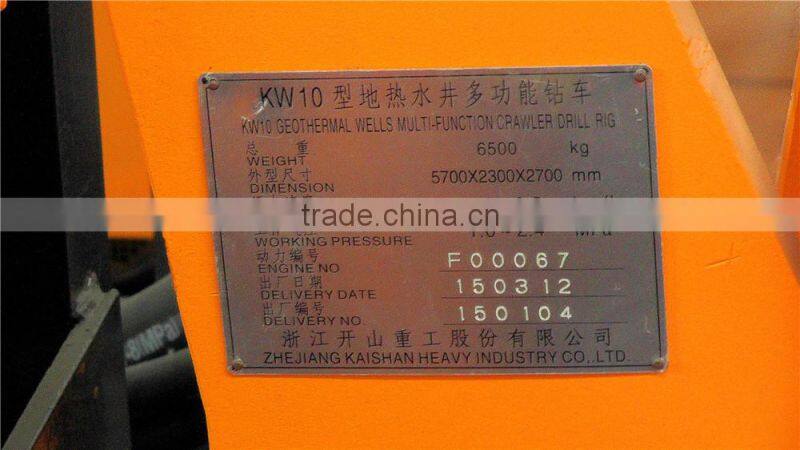

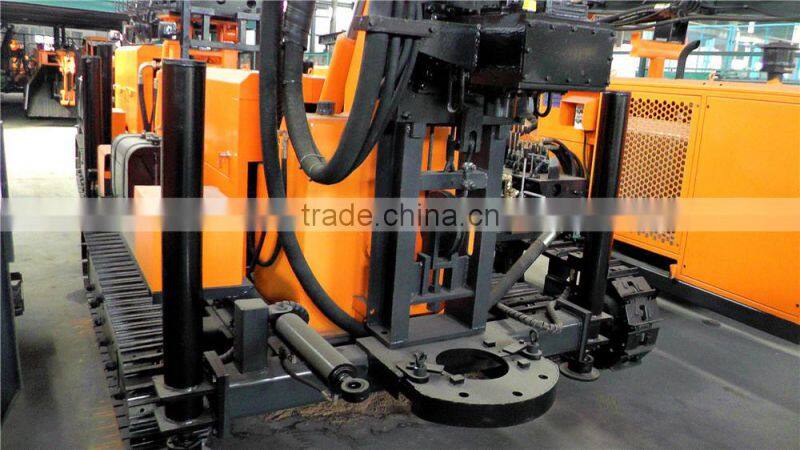

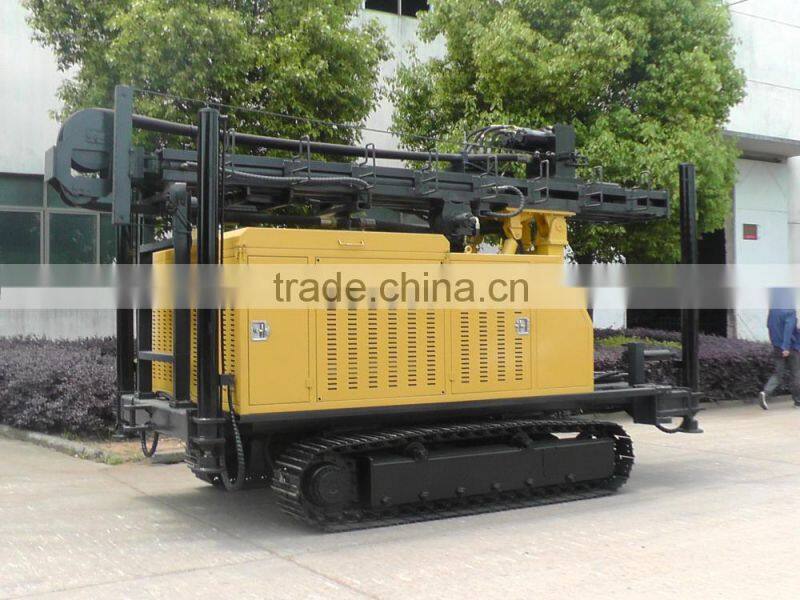

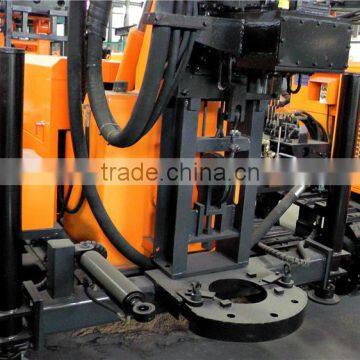

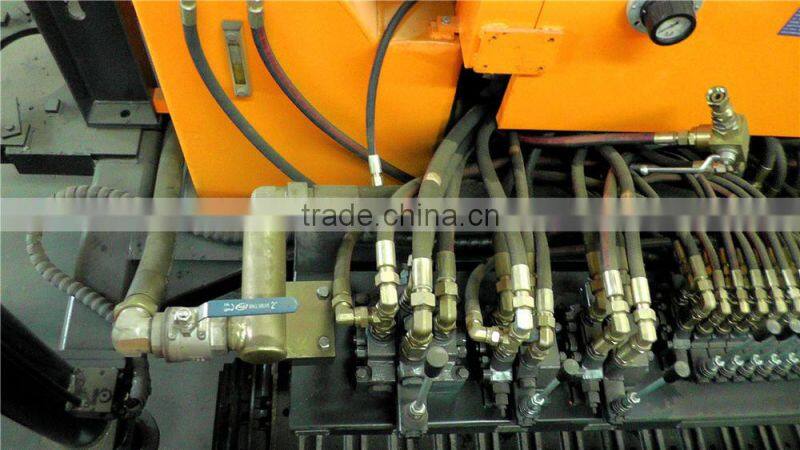

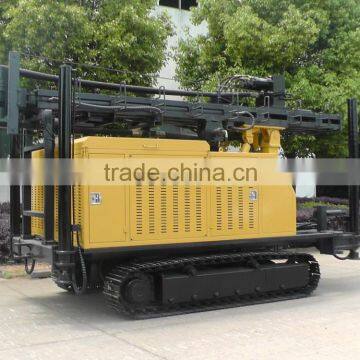

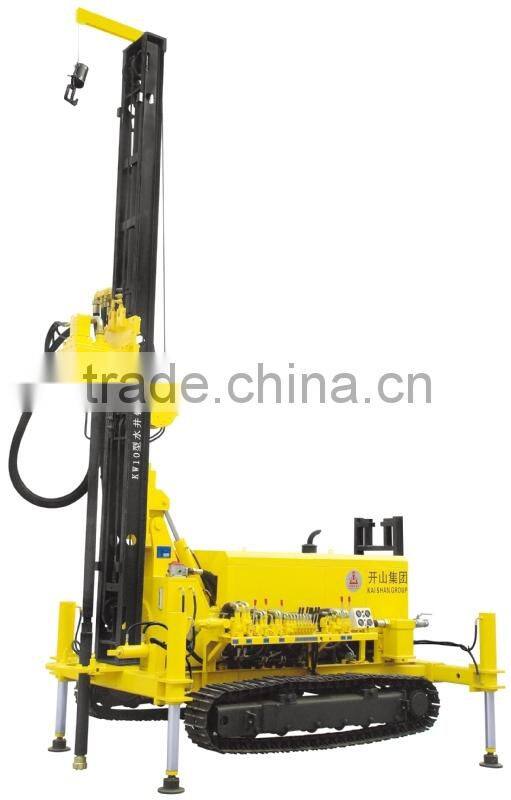

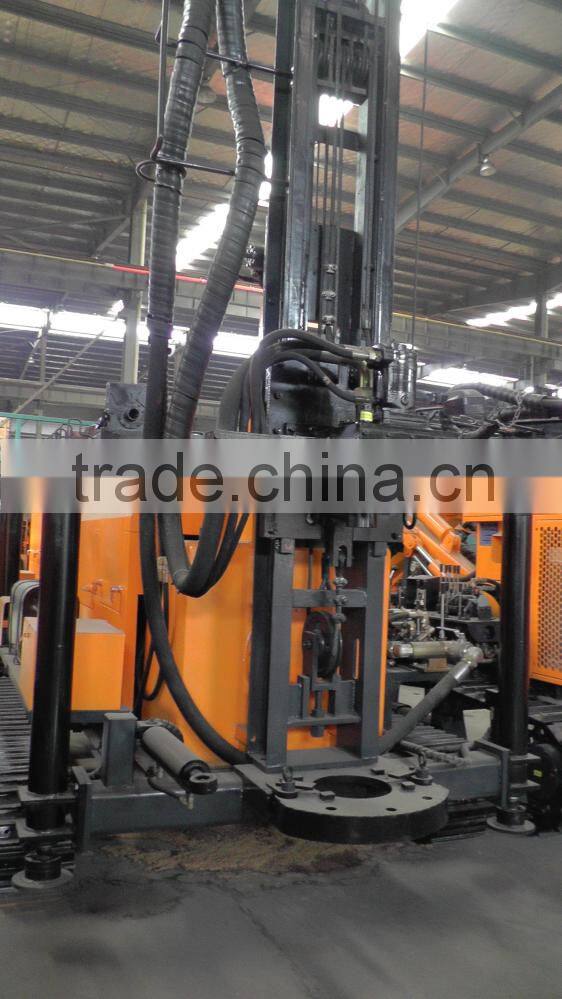

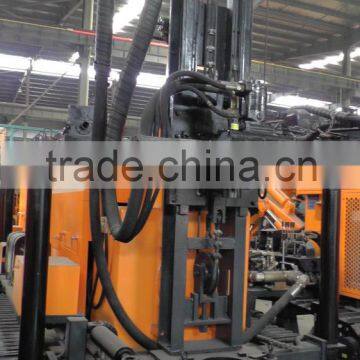

Picture of 0-200 geotechnical drilling machine for water well

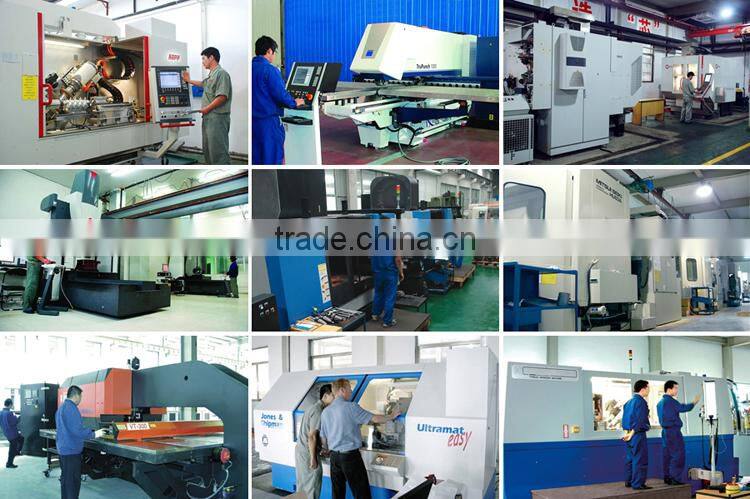

1.Kaishan group Co., Ltd was founded in 1956.
2.Kaishan group Co., Ltd is the worlds largest drilling machine manufacturing enterprises, the largest in Asia,the world`s third air compressor manufacturing enterprises, and the largest drilling equipment manufactures.
3.Good service ,competitive price, high quality, fast shipping and perfect after after sale service.
Welcome to visit our factory and would like to start the cooperation with you in the near future.
