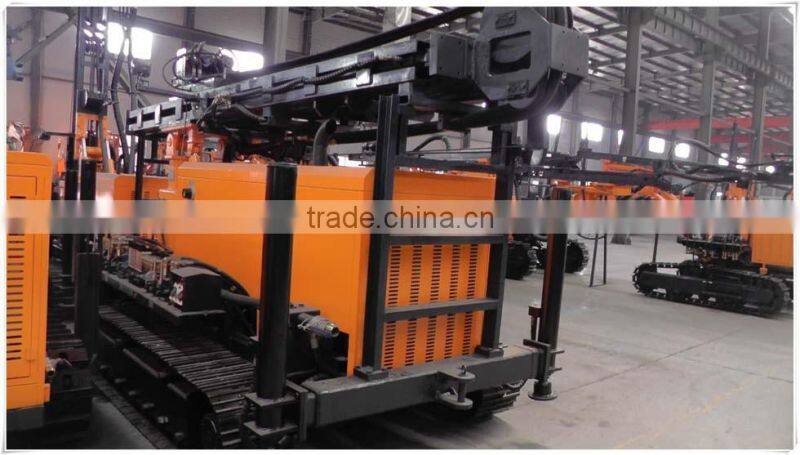

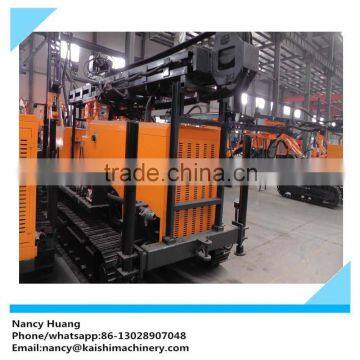

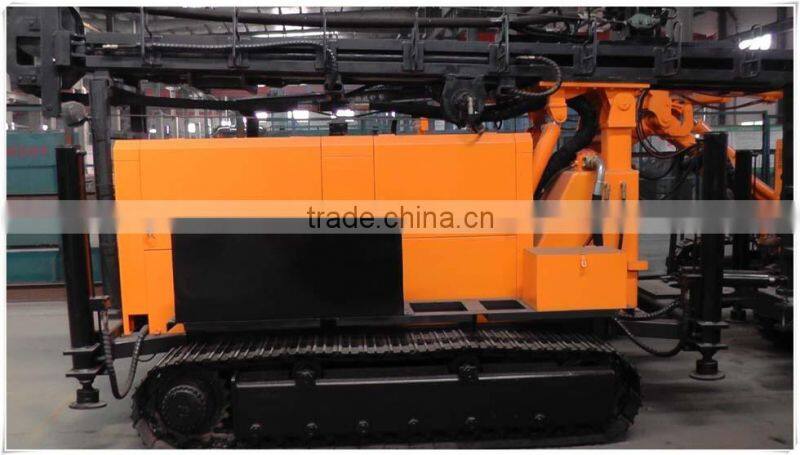

Drilling Depth 200m KW20 Crawler Water Well Drilling Rig For Sale

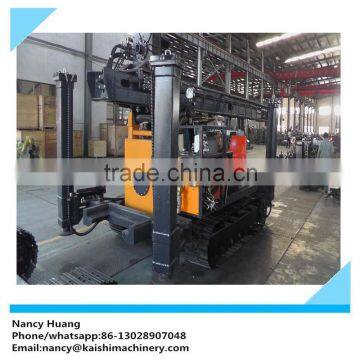

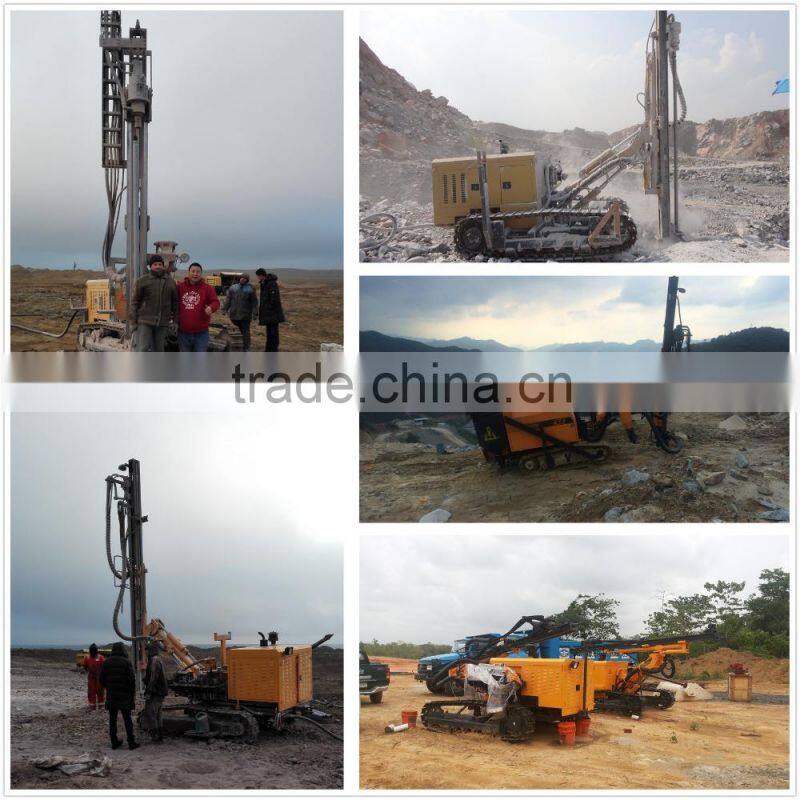

200m Deep KW20 Water Drilling Rig is a lightweight, efficient, multi-function device of surface drill rig, which is mainly applied to drill water wells, agricultural irrigation wells, geothermal air conditioners hole and other uses of the well hole .
This drilling rig can drill in the different stratum.the hole diameter can up to 254mm.

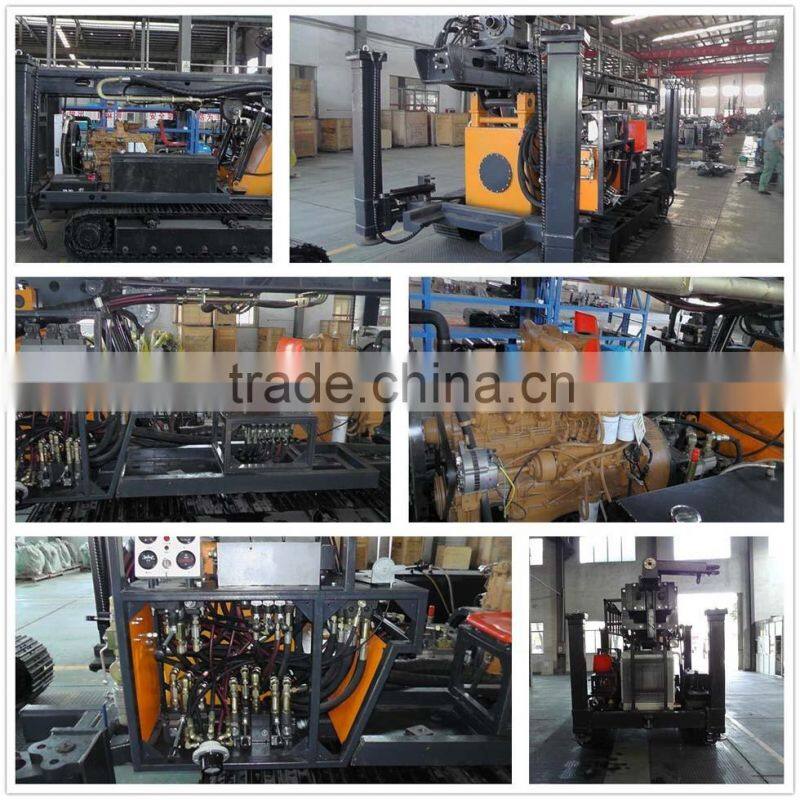

This rig adopts the new type of hydraulic technology,matching a high torque hydraulic rotary motor and big diameter hydraulic cylinder propel,famous factory engine provide the powered for hydraulic system,two stage air filter and air compressor inlet design,prolong the service life of diesel energy.Especial pump team design for easy maintenance,reduce the cost of maintenance.

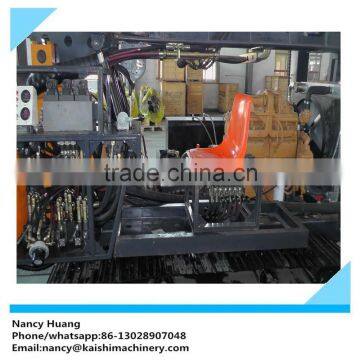

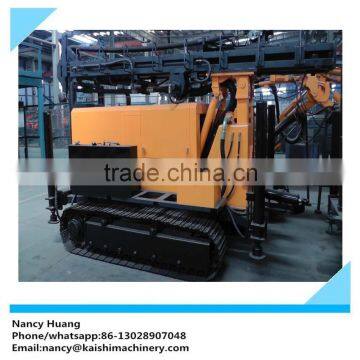

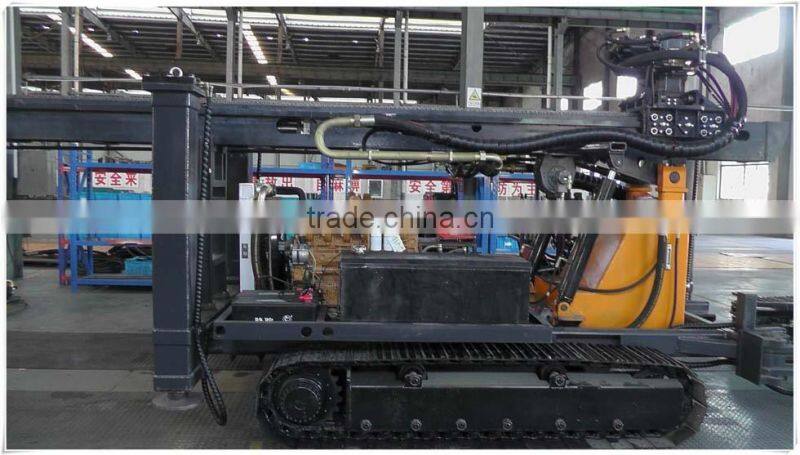

Centralized control of the hydraulic control console,easy operation.This drilling rig using engineering machinery dedicated crawler underpan,good cross-country performance,independent module design,can install this drilling rig on a truck, increase its maneuverability.

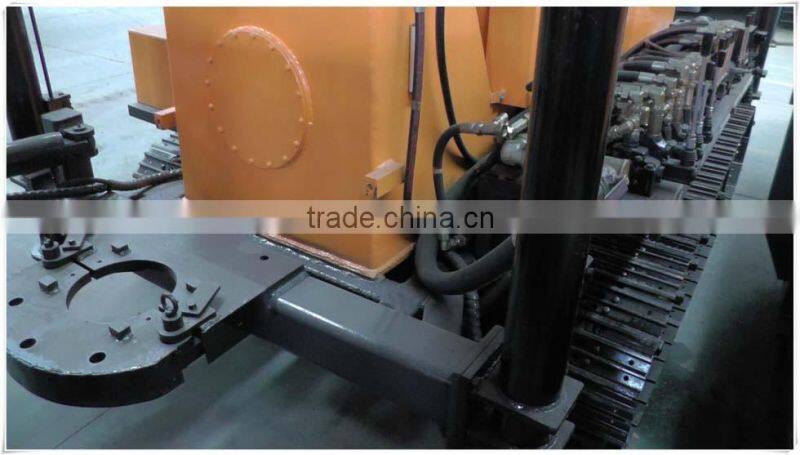

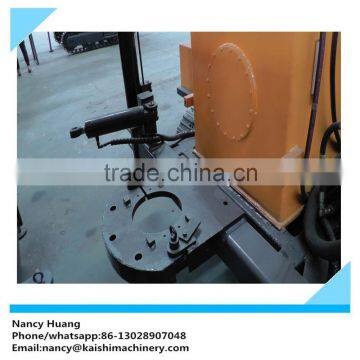

Combined type of locator,can according the different model of drill rod and DTH hammer to adjust and change the positioning tray,guarantee positioning centering are accurate and reliable.Winding gear convenience drill rod and DTH hammer lifting, reduce the labor intensity.

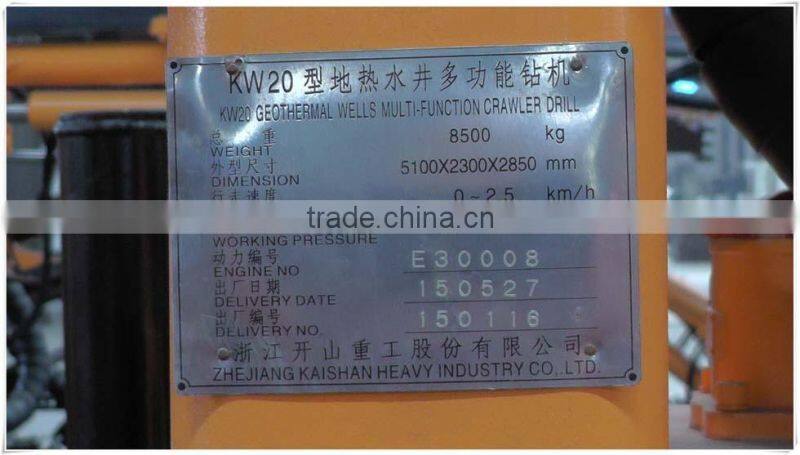

Model |
KW20 |
Total weight |
8500kgs |
Size |
5100*2300*2850mm |
Travel speed |
0-2.5km/h |
Power type |
YC6B125-K10 |
Powerparameter |
92Kw/2200rpm |
Ground clearance |
280mm |
Journey |
1000mm |
Hammer |
(choose)HD65/HD85 |
Climb slope ability |
25° |
Drill depth |
200m |
Work wind pressure |
1.05-2.46mpa |
Air consumption |
16-33m3/min |
Drill rod diameter |
(choose)φ89 x3000mm/φ79 x3000mm |
Drill rod length |
3000mm |
Drill hole diameter |
φ115-254mm |
Push journey |
2400mm |
propulsion |
45000N |
Lifting Power |
90000N |
Spindle Rotary Speed |
Slow:60rpm |
Fast:105rpm | |
Swing torque |
4000N·m |
Matched power |
LGCY-27/20 Working pressure:2.0MPa Capacity:27m³/min Power range:265kW
|
|
LGCY-33/25 Working pressure:2.5MPa Capacity:33m³/min Power range:194kW
|
Drilling Depth 200m KW20 Crawler Water Well Drilling Rig For Sale Matched Air Compressor:
LGCY-27/20 Diesel portable screw air compressor
Working pressure:2.0MPa
Capacity:27m³/min
Motor power:265kW
LGCY-33/25 Diesel portable screw air compressor
Working pressure:2.5MPa
Capacity:33m³/min
Motor power:194kW
