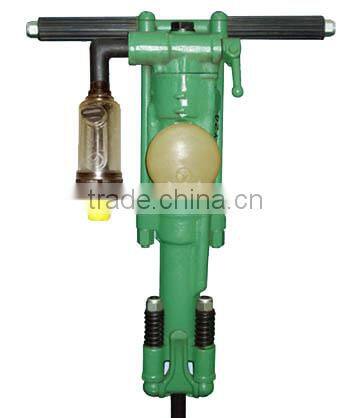

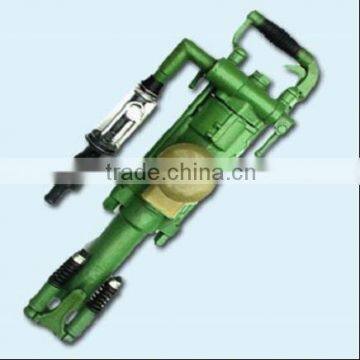

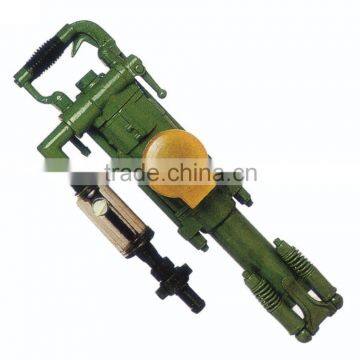

Newest 2015 China hot selling pneumatic rock drill/jack hammer Y24
- 100000 Piece / Pieces per Month
- Ningbo
- T/T Credit Card PayPal
- China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
- 100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
- HY-50H Small Domestic Hydraulic Water Well Drilling Rig of China
- 50m Depth Core Drilling Rig Portable Diamond in Mountain
- TSP core bit, BQ NQ HQ PQ core drill bits, HWL, wireline core barrels, diamond coring bits, hard formation, deep hole rock core recovery
- 1.5M 3M inner tube assembly, wireline core barrels, head assembly, impregnated diamond drilling, hard formation coring, deep hole rock core recovery
Product Details
Condition: | New | Type: | Other, Rotary Drilling Rig, Manual | Power Type: | Other |
Place of Origin: | Zhejiang, China | Brand Name: | Kaishan | Model Number: | Y24 |
Usage: | Ore | Weight: | 24KG | Certification: | ISO9001 CE SGS |
Warranty: | 1 Year | After-sales Service Provided: | No overseas service provided |
Product Description
Kaishan brand pneumatic products:
1.Safe and easy operate
2.High efficiency and reliability
3.Best product quality control from cutting edge forging process to product completion
4.Durable with minimal maintenance
Applications
The Y24 rock drill machine is a kind of high efficiency air leg rock drill machinery.
It is mainly used for blasting holes and other drilling works in a quarries, railway construction, water conservancy construction and defence project facility.
It has many advantages, such as reasonable design, light weight, high efficiency, fast drilling velocity, low consumption convenient operation, low trouble rate, long life parts, and good economic effect.
Features
1.Original in distributing construction, nimble in starting, and smooth in operation.
2.It has special strong blowing-out construction, blow strongly is specially suitable for drilling medium and deep-sized holes.
3.It may be used with dry or wet flushing, so it is suitable not only for extinguishing dust of drilling under-ground but also in high frigid zone lacking of water.
Technical Details of Hand-hold Y24 Rock Drill Jack Hammer
Hand Hold Rock Drill(Y24) | |
Total Length(mm) | 604 |
Weight(Kg) | 24 |
Cylinder Diameter(mm) | 70 |
Piston Stroke(mm) | 70 |
Air Pipe Inner Diameter(mm) | 19 |
Working Pressure(Mpa) | 0.35-0.63 |
Impact Energy (J) | ≥65 |
Impact Frequency(Hz) | ≥27 |
Air Consumption(L/s) | ≤50 |
Water Pipe Inner Diameter(mm) | 13 |
Rock Drill Hole Dia(mm) | 30~85 |
Rock Drill Hole Depth(m) | 6 |
Zhejiang Kaishi Machinery Co., Ltd. located in Quzhou City, Zhejiang Province. Our company has many years manufacturing experience in field of air compressors and drilling rig machines. We bring in advanced technology from abroad to meet different requirements of customers. We are the biggest supplier providing the best prices and quality!
The main products manufactured by our company are more than 20 kinds including piston air compressor, screw air compressor, drilling rig machine, drill bits ,drill rod, DTH, air pick, rock drill, down the hole drills, small mining piston air compressor, chiller air compressor, concrete spraying machine, etc. Meanwhile, we have the right to import and export.
We have a board market in Southeast Asia, South America, Africa and many other countries. Good service and high quality help us gain recognition from users at home and abroad.
We have ISO9001: 2008 quality Certification. We look forward to establish a long-term cooperation relationship for our common development. If you are interested in our products, please visit our website or contact us.
