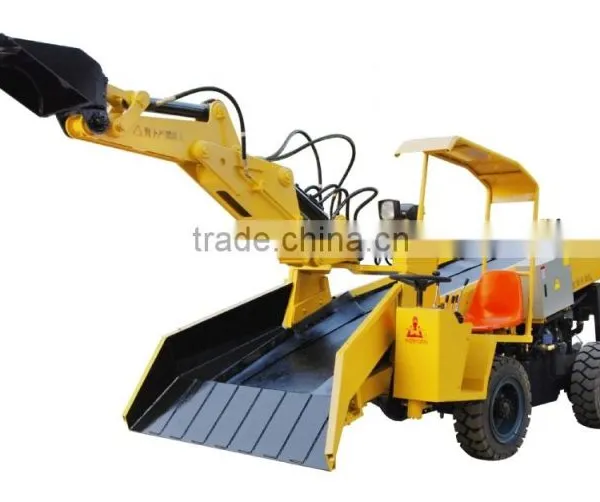

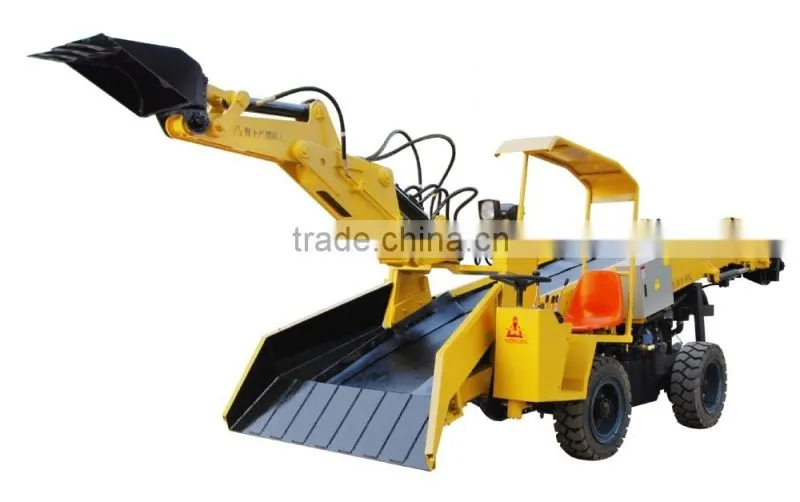

Kaishan Brand KB8T rubber-tyred Backhoe Loader Digger
KB8T rubber-tyred backhoe loader is Kaishan Group independent design innovative products,Widely used in mining, highway, railway, water electricity and infrastructure tunnel or open-air construction and so on.
Original creation dual power(diesel)electric pump system design,improve the system stability,when one power have problem will in time to switch,improve the reliability of working in the tunnel.
Innovative design of folding type conveyer extends conveyor belt length and the height,effectively improved the transporter slag quantity,reduce the whole packaging transportation under the state of logistics costs.
Reliable and practical articulated tire chassis design,with folding transmission rack,greatly reduce the turning radius,makes the machine can arbitrarily walking in the tunnel.
Motor direct driving bridge and unique floating bridge constitute the walking system,cooperate with new type of walking hydraulic system,make whole machine can suitable every tunnel ground,has good walking security and strong traction.
KB8T Rubber-tyred Backhoe Loader | |
Length |
6600 mm |
Width |
1830 mm |
Height |
1900 mm |
Wheel Base |
1650 mm |
Max Grain Size |
650*350 mm |
Min Ground Clearance |
230 mm |
Pivot Angle of Digging Arm |
Left: 21°; Right:21° |
Moving Speed |
0~2 km/h |
Conveyor Belt |
No More Than 21° |
Rated Power |
11 kw |
Power of Motorized Pulley |
5.5 kw |
Production Efficiency |
40~80 m³/h |
Length of Conveyor |
12.1 m |
Weight |
4200 kg |
