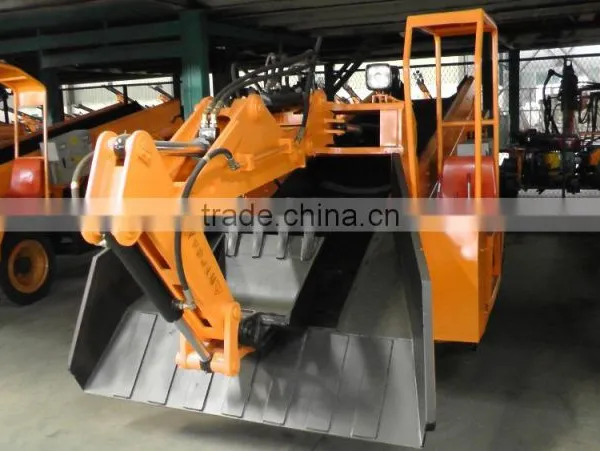

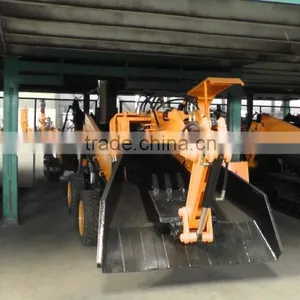

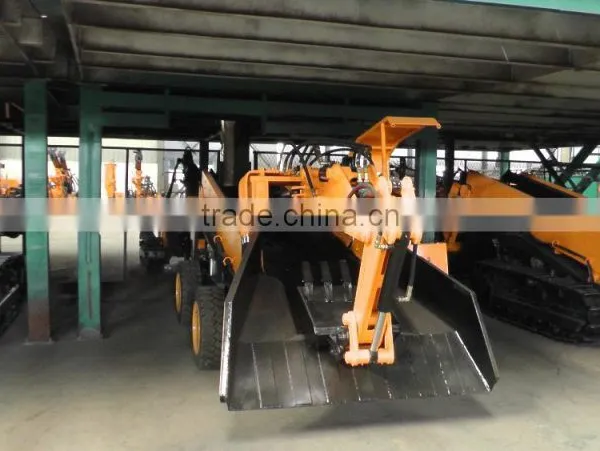

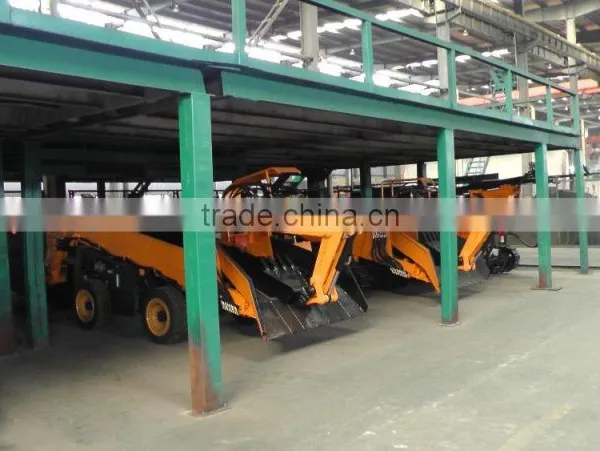

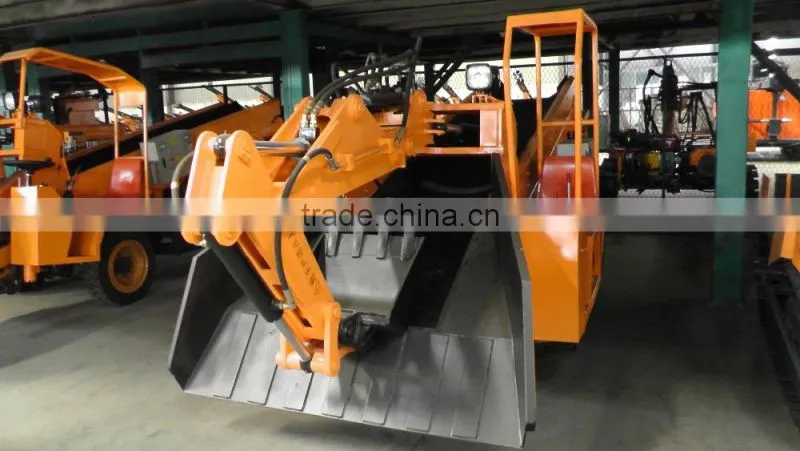

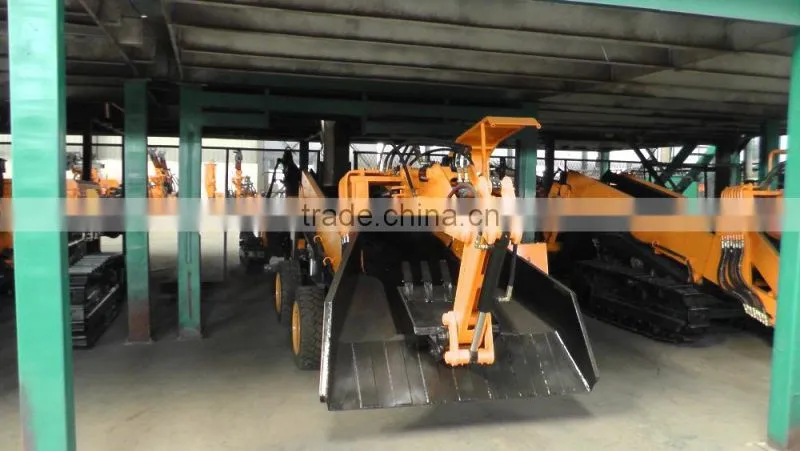

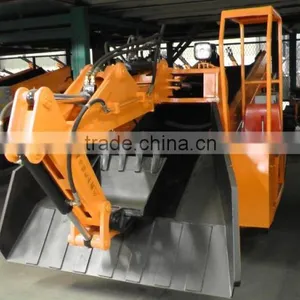

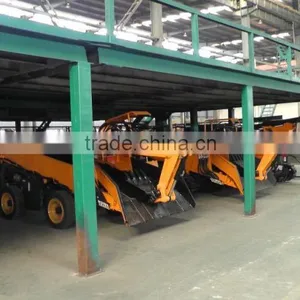

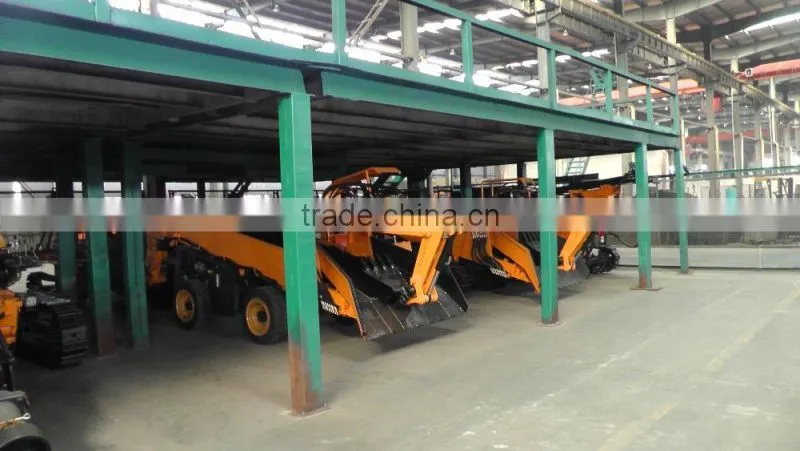

2015 Hot Sale KBT60 Rubber-tyred Backhoe Loader Digger
KBT60 Rubber-tyred Backhoe Loader concentrates collected and transported in a body, compact,safe and reliable. Mainly used in the narrow working space,Small production scale of metal, nonmetal, diversion tunnel, tunneling blasting holes and other not blow-up of crushed stone soil acquisition and transmission loading construction. It is composed of the hydraulic robotic and electric transport mechanism, which has capabilities of acquisition and transport. The machine uses the electric motor and diesel engine which driven hydraulic linkage system with characteristics of shift convenience, safety and environmental protection, low noise, high efficiency. It is ideal of slagging and loading equipment for mines and small tunnels.

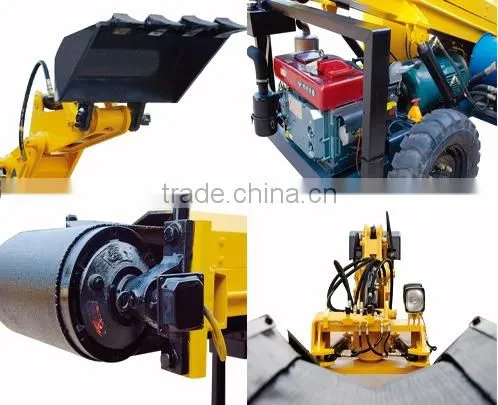

This machine's power is out put into 380V three-phase ac power motor and self diesel engine together.Using one main motor and one electric roller as main working power,diesel engine power is convenient for moving machine, etc. Features include walking,mining collection, transport and loading, clean bottom, etc. Walking driven by hydraulic motor,with functions of forward, backward and automatic braking,mining collection executed by the manipulator,Through hydraulic turning up and down or so control manipulator to complete the mining operation,collection,loading,unloading.Electric roller driving the belt to conveying ,when loading conveyor by two hydraulic cylinders jack-up and lock cylinder as a fulcrum for handling operation.
KBT60 Rubber-tyred Backhoe Loader | |
Length |
5800 mm |
Width |
1650 mm |
Height |
1700 mm |
Wheel Base |
1700 mm |
Max Grain Size |
650*350 mm |
Min Ground Clearance |
190 mm |
Pivot Angle of Digging Arm |
Left: 21°; Right:21° |
Moving Speed |
0~4 km/h |
Conveyor Belt |
No More Than 21° |
Rated Power |
18.5 kw |
Power of Motorized Pulley |
4 kw |
Production Efficiency |
30~60 m³/h |
Length of Conveyor |
10.7 m |
Weight |
3100 kg |
