air suction pump

Name: air suction pump
Brand: AirMac pump
Price: Negotiable

FOB Price

Negotiable / Unit

540 Units(Min.Order)

Supply Ability 1 Unit / Units per Month
Port Keelung Taiwan

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Taiwan	Brand Name:	AirMac pump	Model Number:	DM10S
Theory:	Vacuum Pump	Structure:	Diaphragm Pump	Usage:	Air Pump
Power:	Other, Electric, 110-120VAC/60Hz, 220-240VAC/50Hz	Standard or Nonstandard:	Standard	Fuel:	Other, Electricity
Pressure:	Low Pressure	Application:	Other, vacuum pump

Product Description

air suction pump

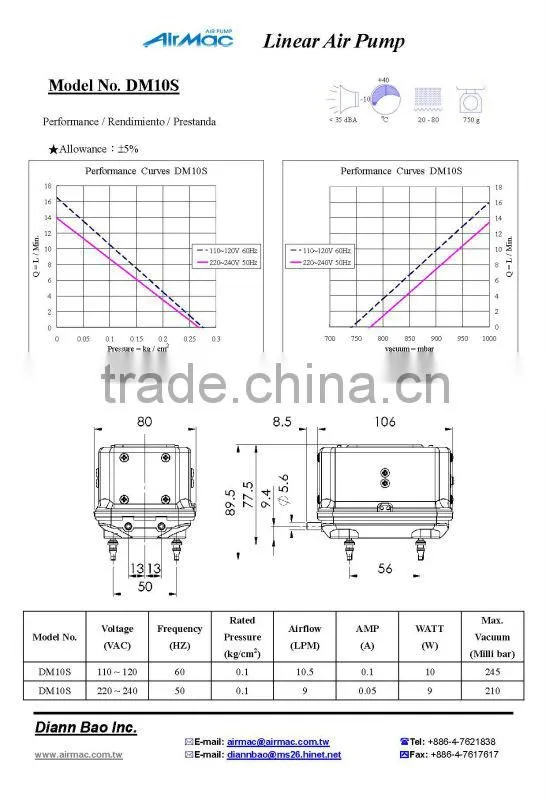

AirMac air suction pump DM10S

Model number: DM10S Air pump

Specification:

Open airflow: 16.5LPM for 60Hz; 14LPM for 50Hz.

Max. pressure: 245mBar for 60Hz; 210mBar for 50Hz.

Rated Pressue: 40mBar

Application:

Air Sampling, Gas Analyzers, Massage, Air Mattresses, Ozone Generators, Medical instruments, Low Frequency Therapentic Equipment ...etc..

Built-In(Vacuum) pump
Model No.	Rated Pressure	Openflow	AMP (A)	WATT (W)	MAX Openflow	Max Pressure	Max Vacuum (milli bar)	Operating Pressure
DB5	0.04	10	0.12	9	12.5	0.22
DB5S	0.04	9	0.12	8.7	12	0.22	206
DB5S-XF01	0.04	9	0.12	8.7	12	0.21	206
DM5	0.04	10	0.12	9	12.2	0.22
DM10	0.1	10	0.09	8	15.5	0.235
DM10S	0.1	10.5	0.1	10	16.4	0.254	245
DB8B	0.1	11	0.19	12	16	0.255
DB8BS	0.1	8.5	0.19	12	15.5	0.25	253
DB15B	0.1	19	0.38	22	32	0.36
DB15BS	0.1	15	0.38	19	25	0.345	309
DB10	0.1	10.5	0.1	10	17	0.257
DB10S	0.1	9	0.1	10	15	0.245	220
DBM20	0.1	20	0.17	15	30	0.353	335
DB30B	0.13	47	0.83		60	0.42
DB30BS	0.13	48	0.83		63	0.41	372
DB40B	0.13	49	0.92		62	0.44
DB40BS	0.13	51	0.92		71	0.41	383
DBM25B	0.13	23	0.14	12	54	0.25	240
DBM30B	0.13	35	0.32	28	62	0.352	325
DBM40B	0.13	44	0.41	35	72	0.41	360

Certifications

office

Q&A:

Q1. When can I get the quotation?

We are able to quote within 24 hours after we receive your inquiry.If you are urgent to get the price, please send the message on trade management or call us directly.

Q2. How can I get a sample to check your quality?

After price confirmed, you can requiry for samples to check quality.If you need the samples for evaluation, we will charge for the sample cost.

Q3. Can I change the valtage and frequency ?

Yes, we have 220-240VAC/ 50Hz or 110-120VAC/60Hz for your option.

Q4. What is your main market?

whole Europe, Southeast Asia, North/South America, Australia, Middle East Regional Area

lifespan testing 1

Before every model is released on market , needs to pass 12 months lifespan- testing at least(24hours a day nonstop).

warehouse

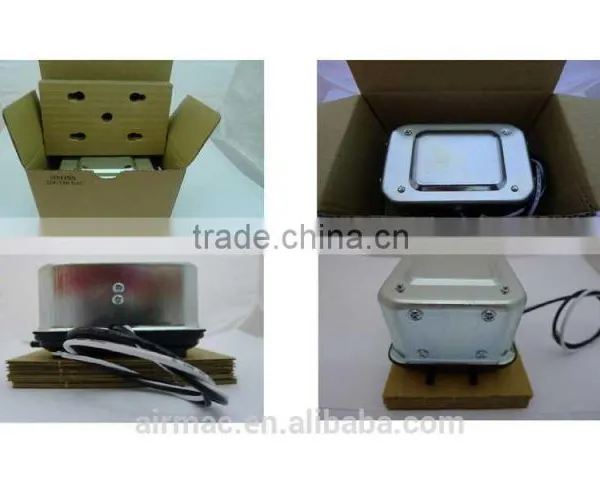

packing
