Home > Products > Petrochemical Pump > Centrifugal oil pump

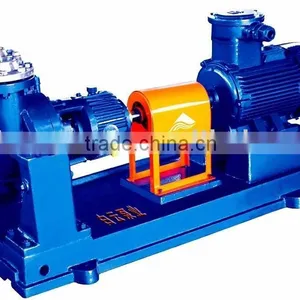

Centrifugal oil pump
- 12 Set / Sets per Month
- Huangpu port Guangzhou
- T/T L/C D/P D/A
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Baiyun brand or OEM | Model Number: | AY series |
Theory: | Centrifugal Pump | Usage: | Oil | Power: | Electric |
Standard or Nonstandard: | Standard | Pressure: | High Pressure | Application: | Other, delivery of oil/gas |
Product Description
Specifications
AY series centrifugal oil pump1. Flow rate: 2500~600000 Liters/hour
2. Head: 30-330 meters
3. High performance
4. Stable
AY series centrifugal oil pump
Performance Parameter:
1. Flow rate: 2500~600000 Liters/hour
2. Max Head: 30-330 meters
3. Temperature: -45°C TO +420°C
Material Type | Class 1 | Class 2 | Class 3 | |
Applicable Temperature | -20 to +150°C | -45 to +420°C | -45 to +420°C | |
Parts | Casing (Cover) | HT250 | ZG25 | ZG1Cr13Ni |
Impeller | HT200 | ZG25 | ZG1Cr13Ni | |
Shaft | 45 | 35CrMo | 3Cr13 | |
Casing wear ring | HT250 | HT250 | 1Cr13MoS | |
Impeller wear ring | QT50-5 | QT50-5 | 3Cr13 | |
Bolts of casing | A3 | 35CrMo | 35CrMo | |
Packing shaft sleeve | 3Cr13 | 1Cr13 | 1Cr13 | |
Mechnical seal sleeve | 3Cr13 | 3Cr13 | 3Cr13 |
Main Applications:
clean, low temperature or high temperature, neutral or corrosive liquid.
petroleum refining
petro-chemical
chemical industry
oil field
delivery of oil/gas.
Note:
We are the biggest water pump manufacturer in Guangdong, China, now we are looking for agent in different countries, welcome you to contact us for more details.
