High Temperature Boiler Pump and Urban Heating System Pump

 Note: If you take interested in this type Pump, pls let us water flow rate, head, power and medium,our technical team will give you the best pump model recommedation.

We are the biggest water pump manufacturer in Guangdong, China, we are looking for agents in different countries, welcome you to contact us for more info.

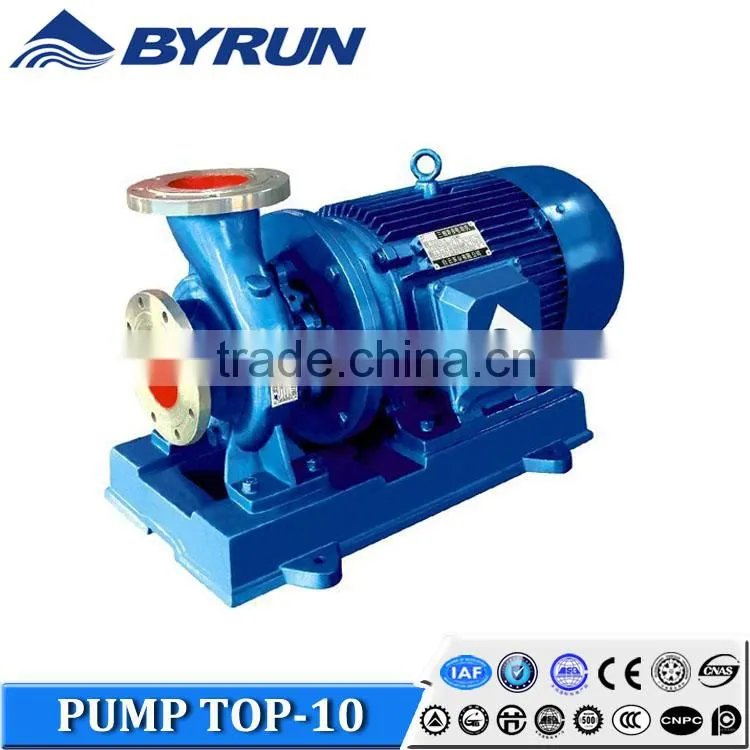

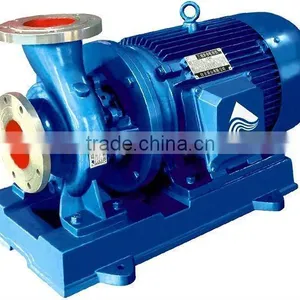

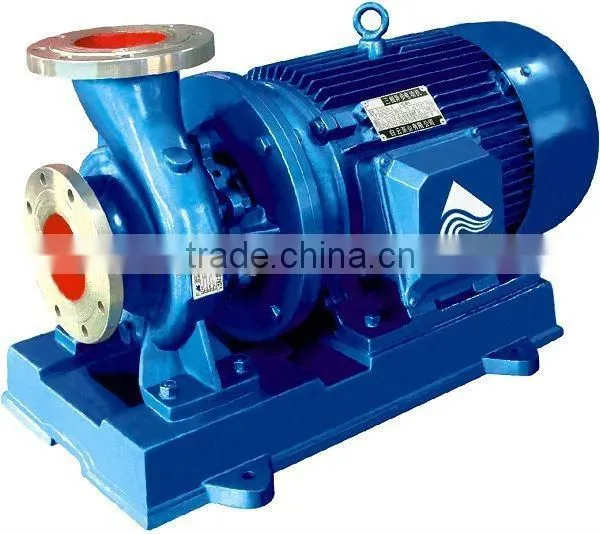

BZH series direct-coupled single-stage chemical centrifugal pump

Introduction:
BZH series direct-coupled single-stage chemical centrifugal pump is a new developed chemical centrifugal pump, it’s energypsaving and single-suction, single-stage. It’s accordance with ISO2858 standards. This pump is high efficiency, no leakage, widely applicable to many industries such as chemical, petroleum, metallurgy, power station, food, pharmacy, synthetic fiber and so on.

Maximum working pressure: 1.6Mpa
Ambient Temperature: not more than 40°C

Working conditions and applications:
1. BZH series is used for conveying corrosive liquid not containing suspended particles or mediums not to be contaminated. The temperature of conveyance medium is between -20°C to +105°C.
2. BZHR series is used for conveying hot water from high temperature boiler and urban heating system. Its working temperature is between -20°C to 200°C.
3. BZHB series is used in explosion proof circumstances while conveying corrosive, exlosive and flammable liquids. Its working temperature is between -20°C to +105°C.
4. BZHRB series is used in explosion proof cirumstances while conveying corrosive, explosive and flammable liquid. Its working temperature is between -20°C to +200°C.

Baiyun Pump Group is located in international metroplis-Guangzhou ,which is a research and development, design and sales all kinds of pump,water supply facilities,water treatment equipment pumps and other around products.
