Help CenterIn-line Vertical Multistage Fire Pump
Related Products
-
End Suction Horizontal Fire PumpsUS$ 100 - 1,000MOQ: 1 Set -
Baiyun Brand International Fire PumpsUS$ 100 - 1,000MOQ: 1 Set
-
XBD Series Firetrol Starter Fire Water Pump Made in ChinaUS$ 100 - 1,000MOQ: 1 Set
-
XBD Single Stage Horizontal Fire Pool PumpUS$ 100 - 1,000MOQ: 1 Set
-
XBD Single-Stage 460V 3 Phase Fire Water PumpUS$ 100 - 1,000MOQ: 1 Set
Note: If you take interested in this type Pump, pls let us water flow rate, head, power and medium,our technical team will give you the best pump model recommedation.
We are the biggest water pump manufacturer in Guangdong, China, we are looking for agents in different countries, welcome you to contact us for more info.

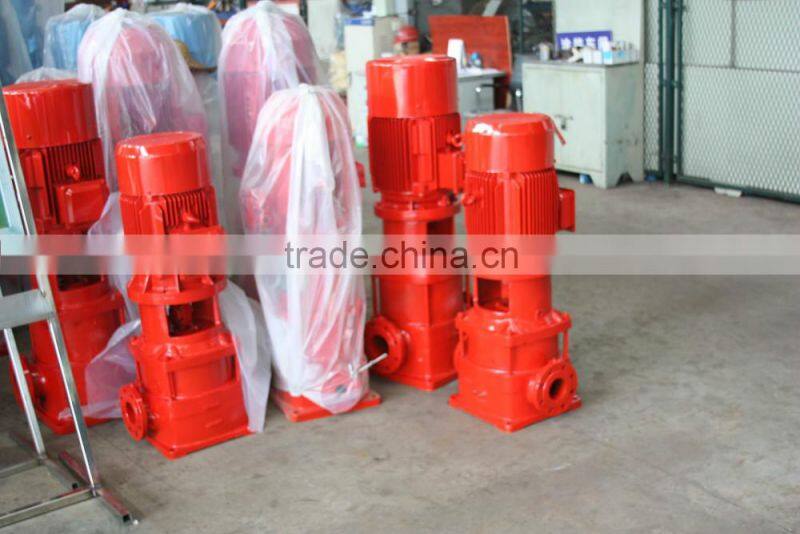

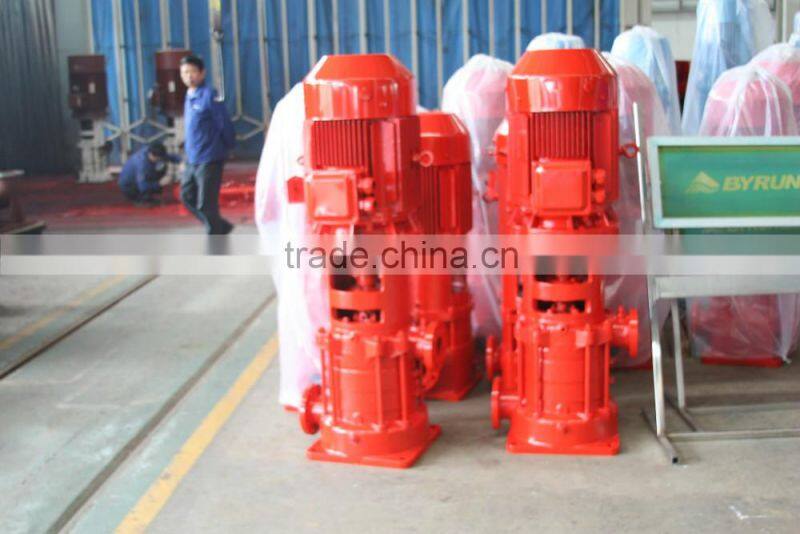

Multistage fire Pump
Performance Parameters:
1. Rotating speed: 2900 r/min
2. Flow rate: 18000 to 180000 Liters/hour
3. Head: 25 to 200 meters
4. Diameter: 50 to 150 mm
Working Conditions:
1. Power: 380V, 3-PHASE, 50Hz
2. Medium Temperature: less than 80 °C
3. PH: 5 to 9
4. Working temperature: less than 40 °C
5. Relative humidity: less than 95%
6. Operating environment should be no dust or inflammable gases.
7. Motor: Y series or Y2 series
Applications:
XBD-LL series fire-fighting pump is used for water supply and drainage and fire-fighting systems for high building and factories and mines.
XBD-LL series fire-fighting pump is a new vertical high-speed multi-stage fire-fighting pump designed and developed by our company, we adopt both domestic and foreign advanced technology on the basis of optimized medium-speed fire-fighting pump according to the need of both the market and the fire-fighting applications in accordance with the standard and specifications in “Performance Requirements and Test Methods for Fire-fighting Pumps” of GB6245-1988 issued by the state.
| Material Sheet | ||
| Part | Material | Standrad Code |
| Inlet section | HT200 | GB9439 |
| Outlet section | HT200/QT500-7 | GB9439/GB1348 |
| Middle section | HT200/QT500-7 | GB9439/GB1348 |
| Guide vane | HT200/2Cr13 | GB9439/GB1220 |
| Impeller | HT200/Copper alloy/stainless steel | GB9439/GB1176 |
| Shaft | 45/2Cr13 | GB699/GB1220 |
| Sleeve | 2Cr13 | GB1220 |
| Water lubricative bearing | Copper alloy |
GB1176 |
Baiyun Pump Group is located in international metroplis-Guangzhou ,which is a research and development, design and sales all kinds of pump,water supply facilities,water treatment equipment pumps and other around products.
| 33 Years Pump Porduction | 5 Modernised Production Base with Total 175000 Square Meters |
| Pump Top 10 and Machine Top 500 Company | More Than 500 Sets Advanced Production and Test Equipment |
| Annual Output Exceeds 150,000 Sets | Professional and High Quality Technical Team with Two Decades |
| About 2000 Employees | OEM Service and Free Technical Support |
