Help CenterXBD-LL Series Vertical Multi-stage Centrifugal Fire-fighting Pump
Related Products
-
New Generation Fire Fighting PumpUS$ 90 - 500MOQ: 1 Set -
XBD-GH Life Water Supply PumpUS$ 100 - 1,000MOQ: 1 Set
-
Vertical Multistage Centrifugal Fire PumpNegotiableMOQ: 1 Set
-
XBD-ZH Municipal Facilities Fire Hydrant PumpUS$ 100 - 1,000MOQ: 1 Set
-
Energy Saving and Environment Protection Vertical Multi-stage PumpUS$ 100 - 900MOQ: 1 Set
Note: If you take interested in this type Pump, pls let us water flow rate, head, power and medium,our technical team will give you the best pump model recommedation.

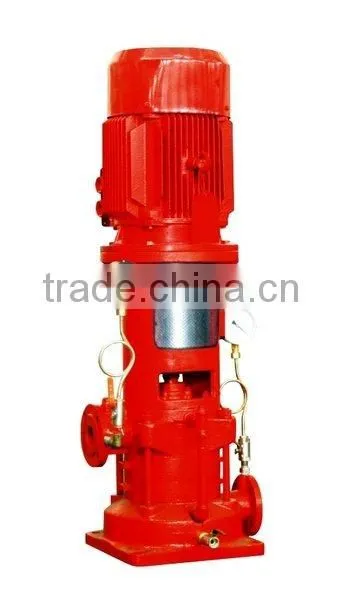

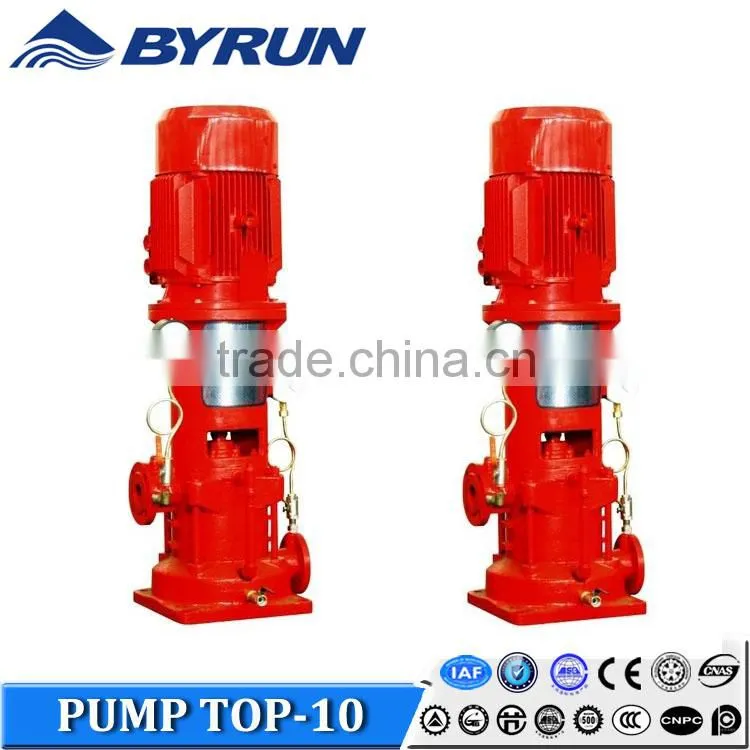

XBD-LL series vertical multi-stage centrifugal fire-fighting pump
Performance Parameters:
1. Rotating speed: 2900 r/min
2. Flow rate: 18000 to 180000 Liters/hour
3. Head: 25 to 200 meters
4. Diameter: 50 to 150 mm
Working Conditions:
1. Power: 380V, 3-PHASE, 50Hz
2. Medium Temperature: less than 80 °C
3. PH: 5 to 9
4. Working temperature: less than 40 °C
5. Relative humidity: less than 95%
6. Operating environment should be no dust or inflammable gases.
7. Motor: Y series or Y2 series
| Material Sheet | ||
| Part | Material | Standrad Code |
| Inlet section | HT200 | GB9439 |
| Outlet section | HT200/QT500-7 | GB9439/GB1348 |
| Middle section | HT200/QT500-7 | GB9439/GB1348 |
| Guide vane | HT200/2Cr13 | GB9439/GB1220 |
| Impeller | HT200/Copper alloy/stainless steel | GB9439/GB1176 |
| Shaft | 45/2Cr13 | GB699/GB1220 |
| Sleeve | 2Cr13 | GB1220 |
| Water lubricative bearing | Copper alloy | GB1176 |
Applications:
XBD-LL series fire-fighting pump is used for water supply and drainage and fire-fighting systems for high building and factories and mines.
XBD-LL series fire-fighting pump is a new vertical high-speed multi-stage fire-fighting pump designed and developed by our company, we adopt both domestic and foreign advanced technology on the basis of optimized medium-speed fire-fighting pump according to the need of both the market and the fire-fighting applications in accordance with the standard and specifications in “Performance Requirements and Test Methods for Fire-fighting Pumps” of GB6245-1988 issued by the state.
Compared with other factories’ fire-fighting pumps, our XBD-LL series fire-fighting pump has advantages as below:
1. We adopt the best hydraulic model, with high hydraulic efficiency and wide performance range.
2. A compact construction, small land occupation and convenient installation, shaft seal use stuff seal, long lifetime, reliable, without leakage, to keep the pump room dry and clean, energy-saving and environment protection.
3. Competative price and advanced technology.

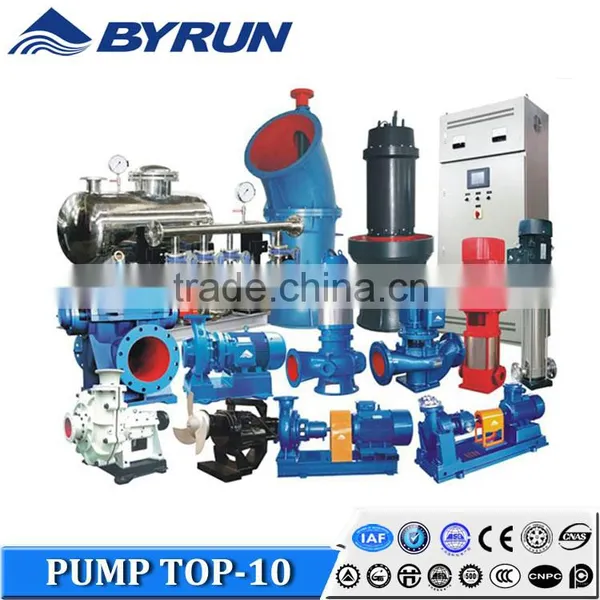

Baiyun Pump Group is located in international metroplis-Guangzhou ,which is a research and development, design and sales all kinds of pump,water supply facilities,water treatment equipment pumps and other around products.
| 33 Years Pump Porduction | 5 Modernised Production Base with Total 175000 Square Meters |
| Pump Top 10 and Machine Top 500 Company | More Than 500 Sets Advanced Production and Test Equipment |
| Annual Output Exceeds 150,000 Sets | Professional and High Quality Technical Team with Two Decades |
| About 2000 Employees | OEM Service and Free Technical Support |
