Kinds of Quartz Crystal Resonators and Oscillators SMD Frequency Control and Selection Components
US$ 0.25 - 0.25
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
YL
Model Number:
2520;26.000M
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Hongkong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality Piezo Oscillator for Bluetooth 1.6*1.2mm Electronic Components ChinaUS$ 0.12 - 0.12MOQ: 1000 Pieces -
Surface Mount Crystal Oscillator Crystal Resonator Piezoelectric Quartz Crystal Piezo OscillatorUS$ 0.06 - 0.06MOQ: 1000 Pieces
-
16M 24M 40M High Quality Piezoelectric Quartz Crystal Resonator 2520 Frequency ResonatorUS$ 0.08 - 0.08MOQ: 1000 Pieces
-
SMD 5032 Seam-sealed Quartz Crystal 27MHz 4 Pins Passive Crystal UnitUS$ 0.14 - 0.14MOQ: 1000 Pieces
-
7050 Piezoelectric Resonator Crystal XTAL Mhz 27 Frequency ComponentsUS$ 0.15 - 0.15MOQ: 1000 Pieces
Place of Origin
Guangdong, China
Brand Name
YL
Model Number
2520;26.000M
Package Type
Surface Mount
Nominal Frequency
8 ~ 52 MHz
Frequency Tolerance
0.2 ppm
Load Capacitance
30pF
Operating Temperature
-30~+85℃
Supply Voltage
1.8V to 3.3V
Dimensions
2.5*2.0mm
kinds of quartz crystal resonators and oscillators SMD frequency control and selection components
Application
1. Mobile Phone Reference
2. DMB Tuner
3. Telematics (GPS, DMB, TPMS)
Product Description

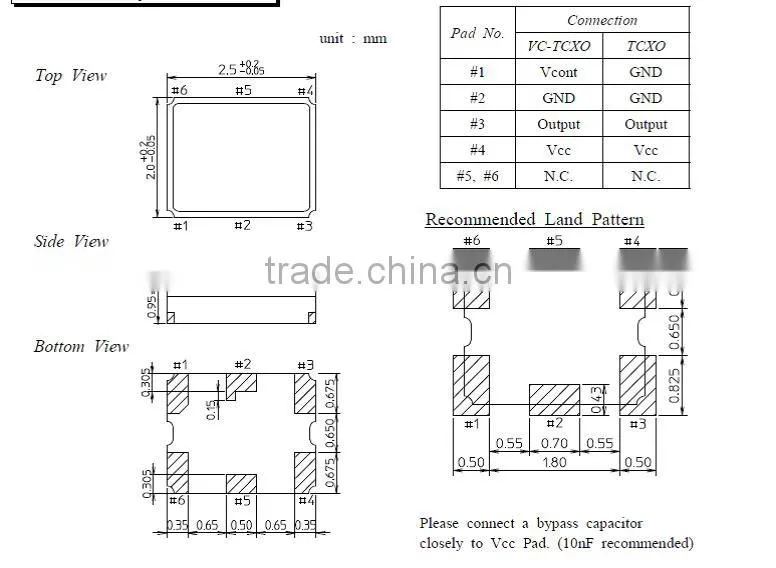

Dimension&land pattern(unit:mm)
Specification
| Parameters | For Cellular | For GPS | Conditions | |||||||
| Output Frequency | 8 ~ 52 MHz | 8 ~ 52 MHz | ||||||||
| Supply Voltage | DC 1.8V to 3.3V | DC 1.8V to 3.3V | ||||||||
| Output Level | 0.8 Vp-p Min | 0.8 Vp-p Min | 10kohm//10pF | |||||||
| Current Consumption | 1.5 mA / 2.0mA Max | 1.5 mA / 2.0mA Max | 10kohm//10pF | |||||||
| Operating Temperature Range | -30~+85℃ | -30~+85℃ | ||||||||
| Storage Temperature Range | -40~+85℃ | -40~+85℃ | ||||||||
| Frequency Stability | ||||||||||
| vs. Temperature | ±2.0 ppm Max | ±0.5 ppm Max | Referenced to 25 °C | |||||||
| vs. Supply Voltage | ±0.2 ppm Max | ±0.2 ppm Max | Supply Voltage ±5% | |||||||
| vs. Load | ±0.2 ppm Max | ±0.2 ppm Max | 10kohm//10pF | |||||||
| vs. Aging | ±1.0 ppm Max | ±1.0 ppm Max | 1 Year | |||||||
| Frequency Tolerance (Initial) | ±1.0 ppm Max | ±1.0 / ±0.5 ppm Max | 25 °C | |||||||
| Frequency Tolerance (After Reflow) | ±1.0 ppm Max | ±1.0 ppm Max | Referenced to 25 °C | |||||||
| AFC Characteristics | Custom spec. | Custom spec. | ||||||||
| Harmonics | -8 dBc Max | -8 dBc Max | ||||||||
| Frequency Slope | ±0.3 ppm/ °C (design guarantee) |
±0.1 ppm/ °C | -20 °C to +70 °C | |||||||
ultra thin lead-free VCTCXO 2520 voltage controlled crystal oscillator radio frequency crystals

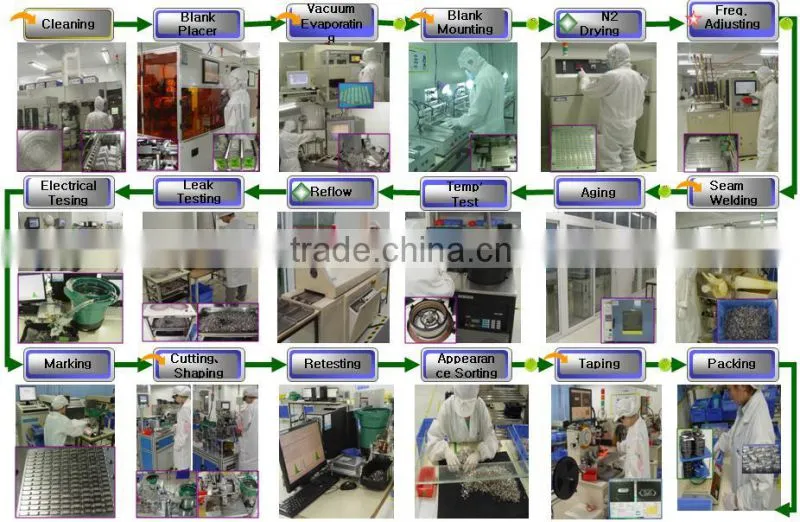

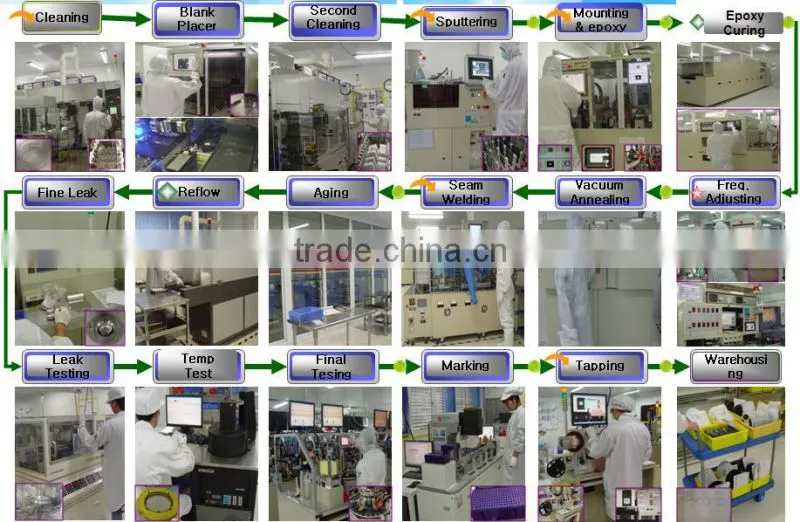

SMD process flow
SMD crystal oscillator 7050 piezoelectric quartz crystal with ic 12.000mhz
DIP process flow
SMD crystal oscillator TCXO 3225 piezoelectric quartz crystal with ic 13.000mhz piezo oscillator

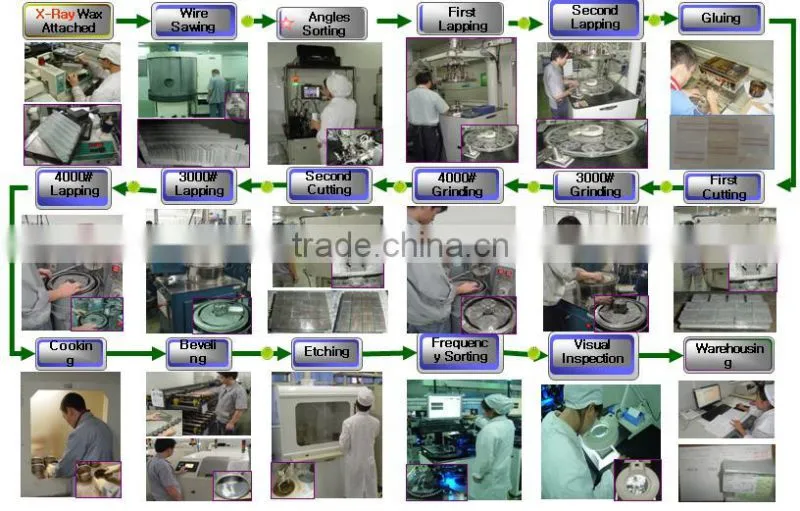

Blank process flow

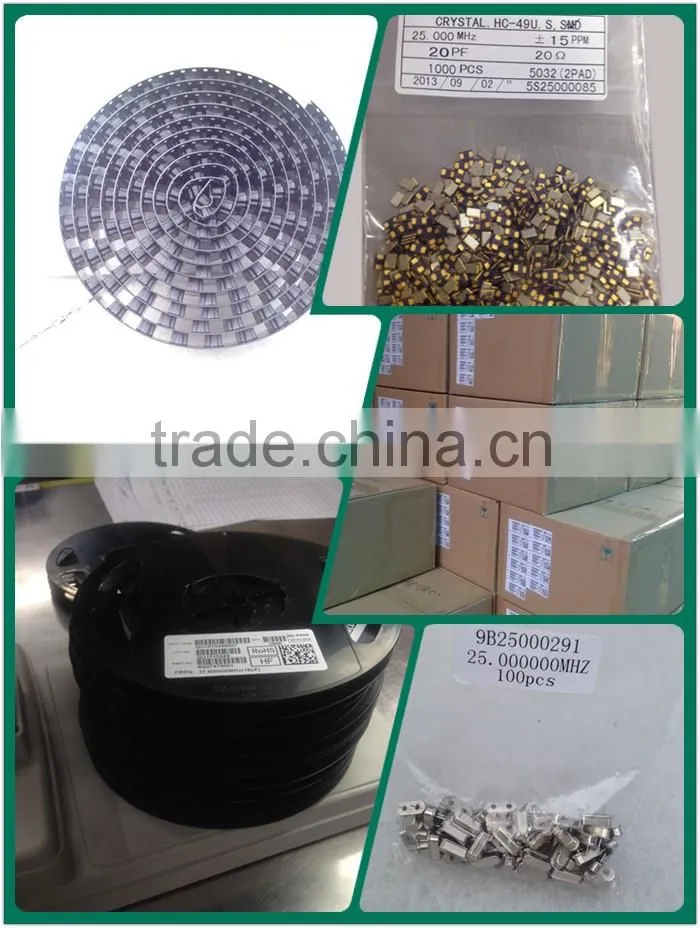

Packaging & Shipping
