high quality DIP & SMD quartz crystal resonator
49S mounted piezo quartz resonator crystal DIP passive components
Radio communication, audio-visual equipment, office automation equipment, consumer product,etc

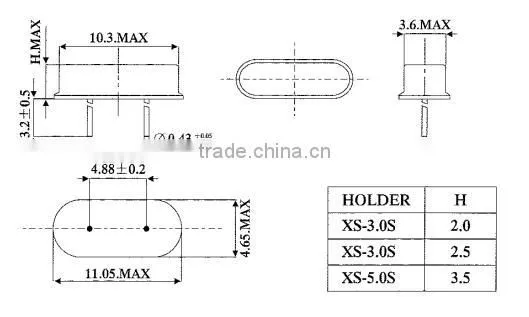

Dimension and Land pattern (unit: mm)
Frequency range & equivalent series resistance
Frequency(MHz) |
Vibration mode |
HC-49S(Ω) |
3.2~3.79 |
Fundamental/F |
180 |
3.8~4.49 |
Fundamental/F |
150 |
4.5~5.59 |
Fundamental/F |
120 |
6.0~7.99 |
Fundamental/F |
100 |
8.0~9.99 |
Fundamental/F |
80 |
10.0~11.9 |
Fundamental/F |
70 |
12.0~15.9 |
Fundamental/F |
60 |
16.0~19.9 |
Fundamental/F |
50 |
20.0~26.0 |
Fundamental/F |
40 |
26.0~39.9 |
Third/O3 |
100 |
40.0~100.0 |
Third/O3 |
80 |
Operating temperature range and frequency stability
|
PPM TEMP |
±10 |
±15 |
±20 |
±30 |
±50 |
0~+50℃ |
√ |
√ |
√ |
√ |
√ |
-10~+60℃ |
√ |
√ |
√ |
√ |
√ |
-20~+70℃ |
√ |
√ |
√ |
√ |
√ |
-30~+80℃ |
|
|
√ |
√ |
√ |
-40~+90℃ |
|
|
|
√ |
√ |
