High Temperature Steel Wire Braided Hydraulic Flexible Hose

High Temperature Steel Wire Braided Hydraulic Flexible Hose photo-1
High Temperature Steel Wire Braided Hydraulic Flexible Hose photo-2
High Temperature Steel Wire Braided Hydraulic Flexible Hose photo-3
High Temperature Steel Wire Braided Hydraulic Flexible Hose photo-4
US$ 0.48 - 6 MOQ: 50 Meters
Key Specifications
Get Latest Price
Place of Origin:
Shaanxi, China
Brand Name:
MYWELL
Model Number:
KL
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shaanxi, China
Brand Name MYWELL
Model Number KL

high temperature steel wire braided hydraulic flexible hose



Product  description

material   rubber +steel wire
type braided hydraulic flexible hose
temperature  -40~+100℃
working  pressure 14-31.5MPa
surface cloth
size 3/16~4 inch
standard SAE/EN/DIN
feature  oil and heat resistant
application  delivery of oil, water, fuel

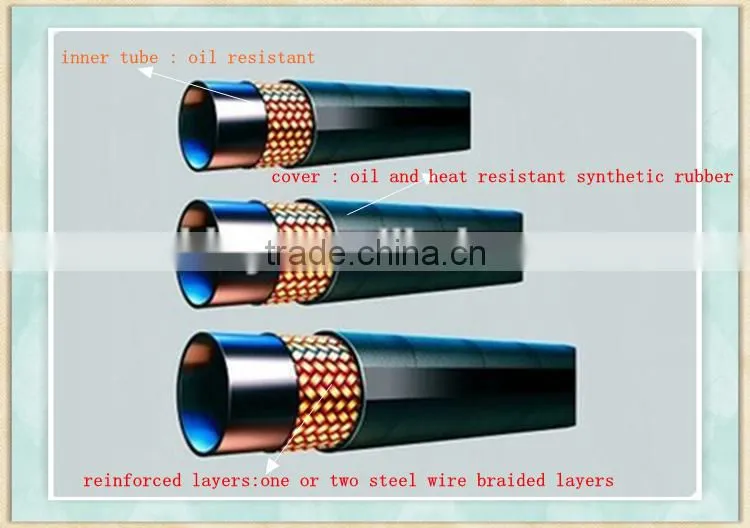

Construction :

                         inner tube : oil resistant

                         reinforcement: steel wire  braided   alternative dinections,

                         cover  :    oil  and weather  resistant

Product  Feature :

Size(inch) inner diameter(mm) working pressure(MPa) min burst pressure(MPa) min bend radius(mm)
3/16 5 35 140 90
1/4 6 35 140 100
5/16 8 29.7 119 115
3/8 10 28 112 125
1/2 13 24.5 98 180
5/8 16 19.2 77 205
3/4 19 15.7 63 240
1 25 14 56 300
1-1/4 31 11.3 45.5 420
1-1/2 38 8.7 35 500
2 51 7.8 31.5 630
2-1/2 63 7 28 760



Application :

                  used  in  mine hydraulic  support and oil  exploration,used the petroleum base hydrauic oil and  water  base , within  a temprature of -40℃ ~+100℃

Product show:

high temperature steel wire braided hydraulic flexible hose



high temperature steel wire braided hydraulic flexible hosehigh temperature steel wire braided hydraulic flexible hose

high temperature steel wire braided hydraulic flexible hosehigh temperature steel wire braided hydraulic flexible hosehigh temperature steel wire braided hydraulic flexible hose

Packing  and  Delivery

high temperature steel wire braided hydraulic flexible hosehigh temperature steel wire braided hydraulic flexible hosehigh temperature steel wire braided hydraulic flexible hosehigh temperature steel wire braided hydraulic flexible hosehigh temperature steel wire braided hydraulic flexible hosehigh temperature steel wire braided hydraulic flexible hose

Our services :



1. Any quantity  of the rubber hose  is ok,



2. We'd like to provide free samples of the rubber hose , if it's needed ;



3. The payment methods of rubber hose : T/T



4. If you have any question , please contact us .

high temperature steel wire braided hydraulic flexible hosehigh temperature steel wire braided hydraulic flexible hose
