Home > Chemicals > Rubber & Rubber Products > Rubber Tube, Pipe & Hose > SAE 100 R9 Steel Wire Spiral Hydraulic Hose
SAE 100 R9 Steel Wire Spiral Hydraulic Hose
US$ 0.38 - 6
MOQ: 50 Meters
Key Specifications
Get Latest Price
Place of Origin:
Shaanxi, China
Brand Name:
MYWELL
Model Number:
KL
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Supplier Steel Wire Spiral Oil and Gas Hose PipeUS$ 0.38 - 6MOQ: 50 Meters -
SAE 100R13 Steel Wire Reinforcement Hydraulic Rubber HoseUS$ 0.45 - 6MOQ: 50 Meters
-
High Pressure Steel Wire Spiral Rubber HoseUS$ 0.45 - 6MOQ: 50 Meters
-
Hot Sale Industrial High Pressure Rubber Hose Made in ChinaUS$ 0.45 - 6MOQ: 50 Meters
-
Steel Wire Spiral Hydraulic Hose RubberUS$ 0.45 - 6MOQ: 50 Meters
Place of Origin
Shaanxi, China
Brand Name
MYWELL
Model Number
KL

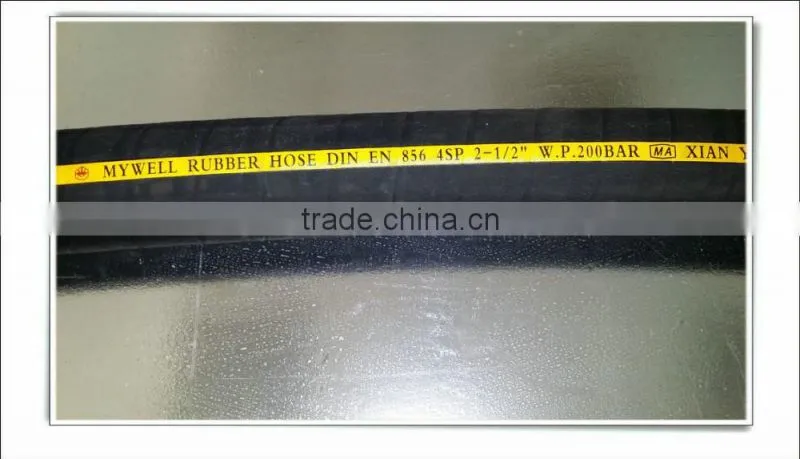

SAE 100 R9 steel wire spiral hydraulic hose
Product description
| material | rubber |
| type | steel wire spiral hydraulic hose |
| reinforced layers | four alternative steel spiral layers |
| certificate | ISO9001,ISO14001,OHSAS18001 |
| surface | cloth/Smooth |
| standard | SAE |
| sample | free sample |
| business type | manufacture |
| MOQ | 10 piece |
| payment | L/C,T/T |
| feature | anti-aging,oil and heat resistant |
| application | mine ,nature gas ,industry |
| package | in plastic bag |
| delivery | within 2 weeks, or according to quantity |
Construction :
inner tube : oil resistant
reinforcement: four alternative dinections,
cover : oil and weather resistant
Application :
used in mine hydraulic support and oil exploration,used the petroleum base hydrauic oil and water base , within a temprature of -40℃ ~+100℃
|
size |
size |
ID(MM) |
W.D(MM) |
O.D(MM) | Max W.P | P.P | Min B.P | Min B.R | W.T | |||||
| A AT | ||||||||||||||
| MM | INCH | min | max | min | max | min | max | min | max | (MPa) | (MPa) | (MPa) | (mm) | kg/m |
| 6 | 3/8 | 9.3 | 10.1 | 16.9 | 18 | 20.6 | 22.2 | 20.6 | 21.1 | 31.5 | 63 | 126 | 125 | 0.70 |
| 8 | 1/2 | 12.3 | 13.5 | 19.4 | 21 | 23.8 | 25.4 | 23.8 | 24.3 | 28 | 56 | 112 | 180 | 0.83 |
| 12 | 3/4 | 18.6 | 19.8 | 26.6 | 28.2 | 30.6 | 32.2 | 30.6 | 31.9 | 21 | 42 | 84 | 240 | 1.3 |
| 16 | 1 | 25.0 | 26.4 | 34.5 | 36.1 | 38.5 | 40.9 | 38.5 | 40.5 | 21 | 42 | 84 | 300 | 1.7 |
| 20 | 1-1/4 | 31.4 | 33.0 | 43.3 | 45.6 | 49.2 | 52.4 | 49.2 | 50.7 | 17.5 | 35 | 70 | 420 | 3.08 |
| 24 | 1-1/2 | 37.7 | 39.3 | 49.6 | 52 | 55.6 | 58.7 | 14 | 28 | 56 | 500 | 4.30 | ||
| 32 | 2 | 50.4 | 52.0 | 63.9 | 66.2 | 69.9 | 73 | 14 | 28 | 56 | 600 | 5.63 | ||

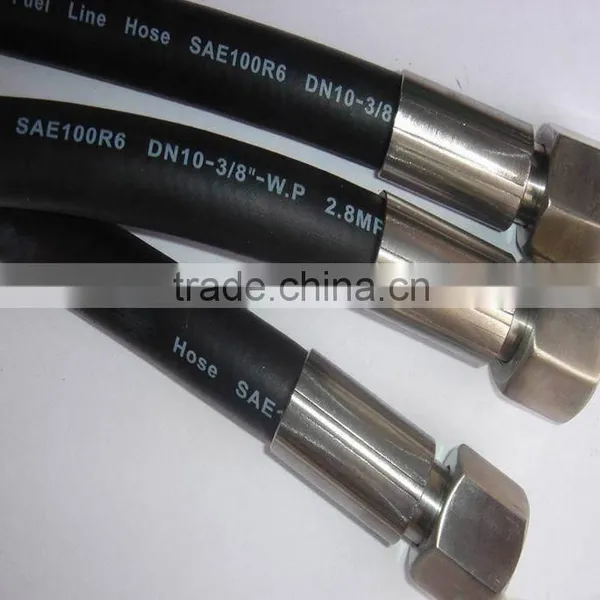

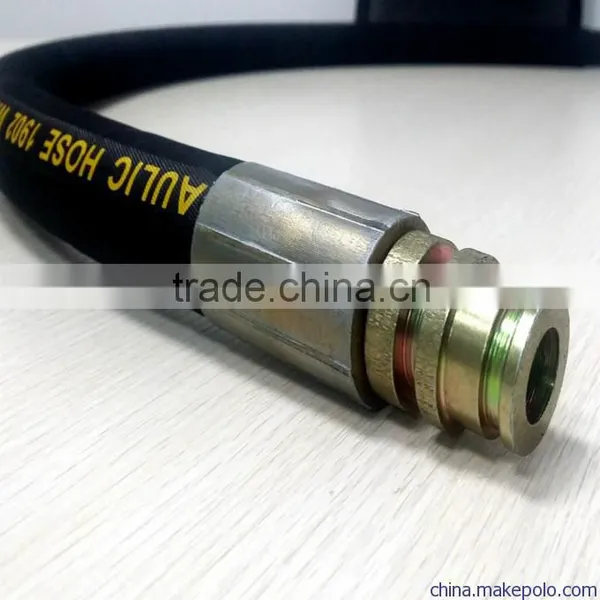

Product show:
