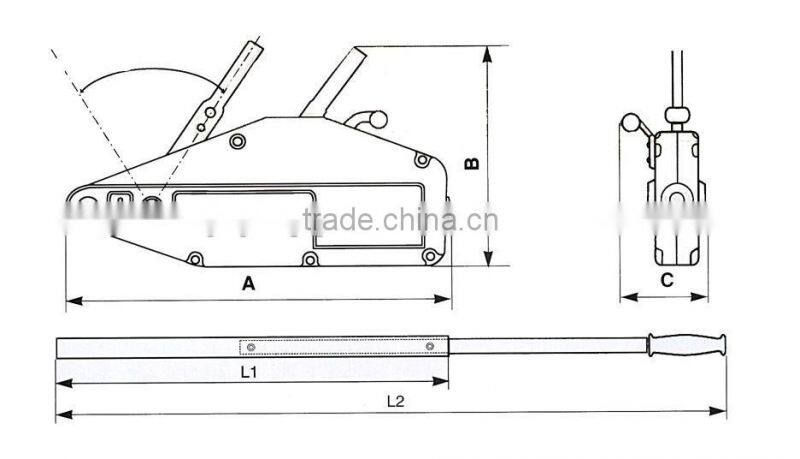

Hot sale hand control wire rope pulling hoist
| ||||
| Model | LJ-800 | LJ-1600 | LJ-3200 | LJ-5400 |
| Vertical lifting load | 800kg | 1600kg | 3200kg | 5400 |
| Horizontal lifting load | 1200kg | 2400kg | 4000kg | 6750 |
| The max force of full load | ≤343N | ≤441N | ≤441N | ≤745N |
| The max travel of handle | ≥52mm | ≥55mm | ≥28mm | ≥30mm |
| N.W. of machine | 6kg | 12kg | 23kg | 56.5kg |
| Size | 420×80 | 550×100 | 660×110 | 930×480 |
| ×250mm | ×280mm | ×380mm | ×152mm | |
| Dia of wire rope | 8mm | 11mm | 16mm | 20mm |

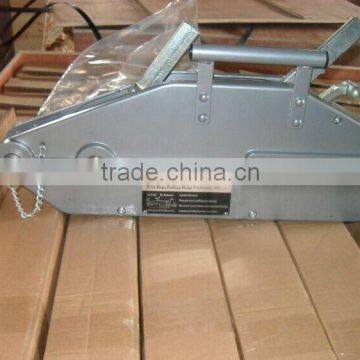

Pictures of Wire rope pulling hoist
Workroom of Wire rope pulling hoist
Before the packing, the wire rope pulling hoist must be checked by our inspection systerm. And the wire rope must be made sure that it could not break when the full load was lifted. If not, that piece chain block would not be passed. |
|
1.CE,TUV certificate 2.Wire rope: High quality 3.Hook: Deep Forged, High alloy steel 4.Gear: High standard Gear steel 5.Cover: Aluminium alloy 6.Surface treatment: Powder coating 7.Longer life span |
|
1. Packing: Carton case and Pallet 2. MOQ:1 piece 3. Payment: 30% TT in advance 4. Lead time: 1 day 5. Delivery time: 1 week 6. Load Port: Tianjin |
|
1. On line in 24 hours 2. TUV Certificate 3. OEM Product and Packing 4. Prompt Delivery 5. The necessary documents of clearing 6. Supply the reparing parts 7. The technical suggestion of install and application |
| Hebei Juying Hoisting Machiney Co.,Ltd was founded in 2005, and mainly produce chain hoist, electric hoist, mini electric hoist, hoist, lifting chain, lifting sling, lifting machinery equipment. The company has a complete and scientific quality management system. Relately it has been vertified by TÜV Rheinland. |
|
Company Name: Hebei Juying Hoisting Machinery Co.,Ltd Address: Donglv Industrial Zone, Baoding City, China Tel/Fax:086-312-3071655 Mobile Phone: 086-15933590576 Skype: liujack1987 |
