Mini Electric Rope Hoist With Remote Control

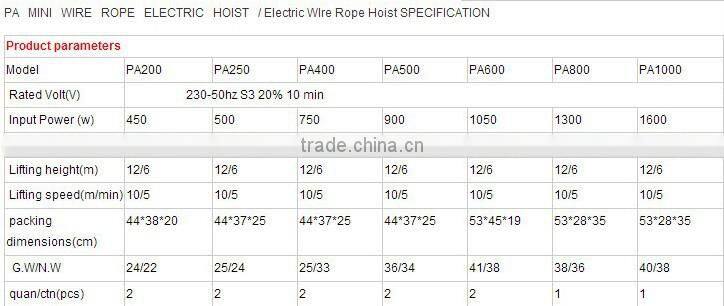

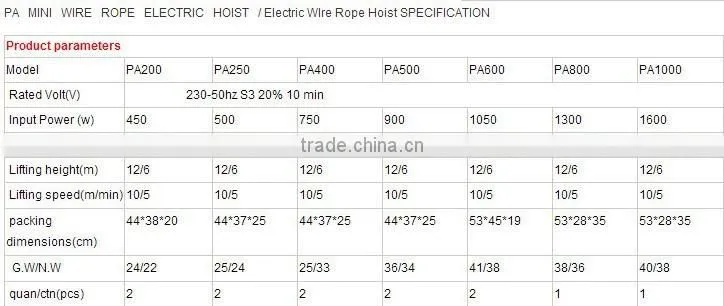

Main specifications of electric wire rope hoist, car lifting machine:

1)The emergency stop switch

2)Upper limit function

3)Thermal protection terminal

4)Protection class IP54

5)Insulation class B

6)Group of mechanisms M1

7)Work Duty: S3-25%-10min

8)Rated Volt: 220/230V ~ 50Hz

9)Rated Current: 2.0A

10)Input Power: 550W

11)Lifting Weight: 100kg (Single-line), 200kg (Double-line)

12) Lifting Height: 12m (Single-line), 6m (Double-line)

13)Lifting Speed: 10m/min (Single-line), 5 m/min (Double-line)

14)Diameter of wire rope: 3.0mm

15)Tensile strength of wire rope ≥ 1870N/mm2
