Product Details
Condition: | New | Place of Origin: | Hebei, China | Brand Name: | Juying |
Model Number: | HSZ | Usage: | Other, Material hand lifting | Power Source: | Hand Chain |
Sling Type: | Chain | Maximum Lifting Weight: | 1.5 ton | Maximum Lifting Height: | 12 Meter |
Lift Speed: | upon the pull | Certification: | TUV, CE, GS | Warranty: | 1 YEAR |
After-sales Service Provided: | Overseas third-party support available |
Product Description
OEM heavy duty HSZ types of 1 ton manual hand winch
Capacity(ton) | 1 ton |
Test load(ton) | 1.5 ton |
Standard lifting height | 3 meters |
No of load chain | 1 |
Diameter of load chain | 6mm |
N.W(kg) | 10kg |
G.W(kg) | 13kg |
Packing Size(cm) | 30*24*18 |

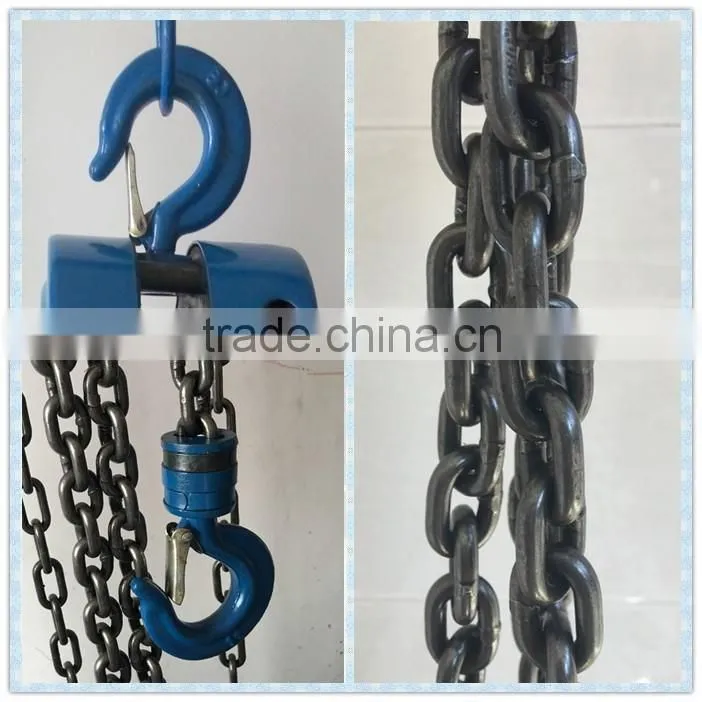

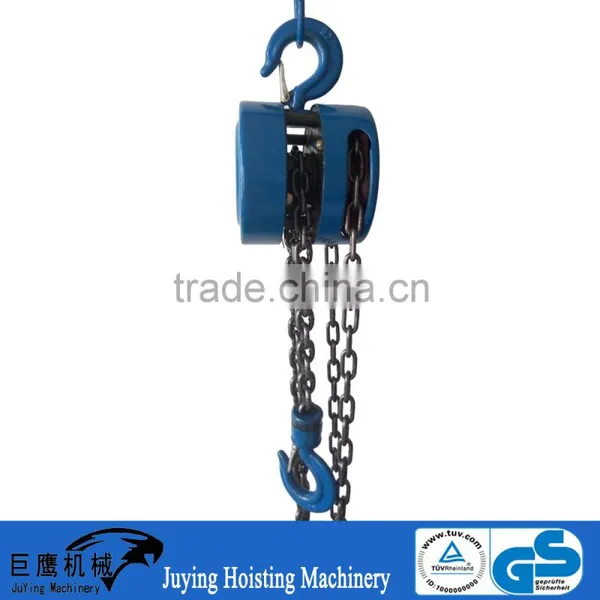

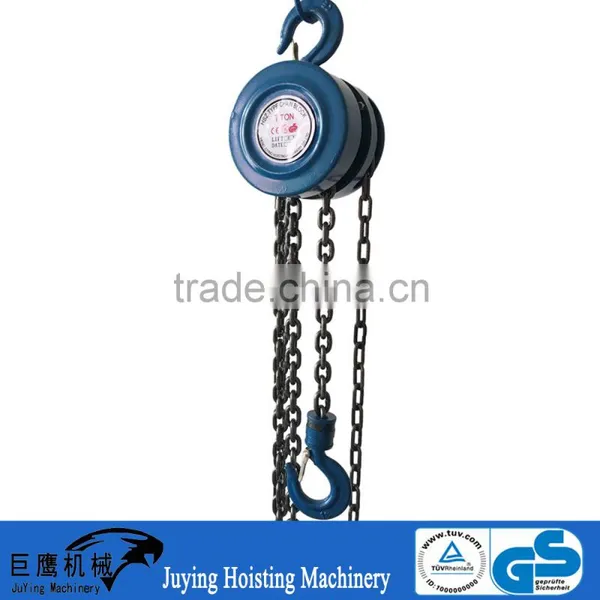

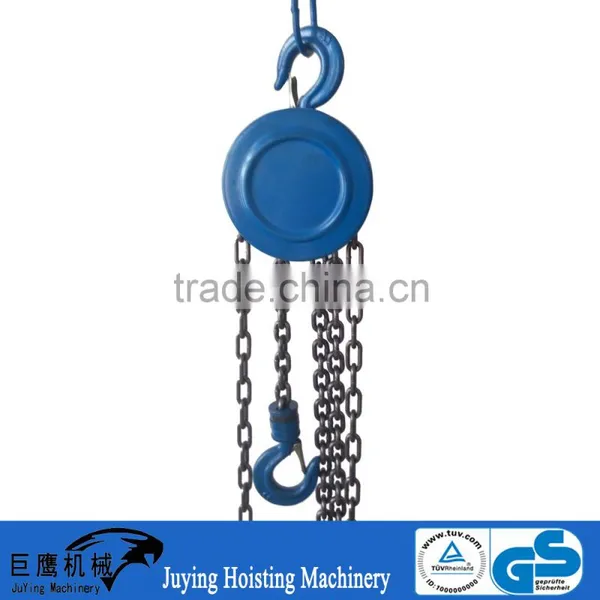

Picture of HSZ chain hoist
Other capacities of HSZ type chain hoist
Model | HSZ-1/2 | HSZ-1 | HSZ-2 | HSZ-3 | HSZ-5 | HSZ-10 |
Capacity(t) | 0.5 | 1 | 2 | 3 | 5 | 10 |
Lifting Height(m) | 2.5 | 2.5 | 3 | 3 | 3 | 3 |
Test load(t) | 0.75 | 1.5 | 3 | 4.5 | 7.5 | 15 |
Hmin Headroom(mm) | 270 | 270 | 444 | 486 | 616 | 700 |
Chainpull to lift full load(N) | 225 | 309 | 314 | 343 | 383 | 392 |
No. of load chain | 1 | 1 | 2 | 2 | 2 | 4 |
Diameter of load chain | 6 | 6 | 6 | 8 | 10 | 10 |
N.W(kg) | 9.5 | 10 | 14 | 24 | 36 | 68 |
Workroom of chain block
Before the packing, the chain block must be checked by our inspection systerm. And the load chain must be made sure that it could not break When the full load was lifted. If not, that piece chain block would not be passed. |

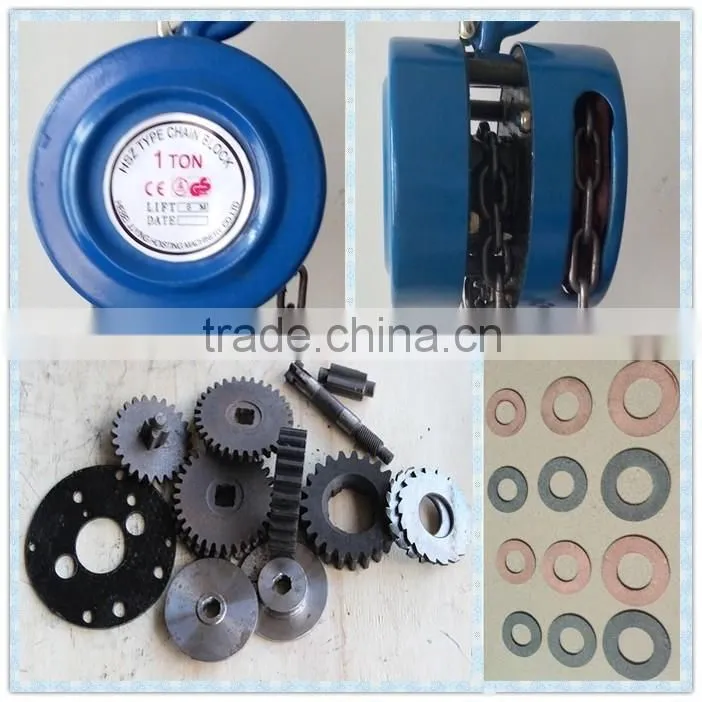

1.TUV certificate 2.Load chain: Black G80 chain, 20CrMn 3.Hook: Deep Forged, High alloy steel 4.Gear: High standard Gear steel 5.Cover: 45# steel 6.Surface treatment: Powder coating 7.Longer life span |
1. Packing: Wooden case and Pallet 2. MOQ:1 piece 3. Payment: 30% TT in advance 4. Lead time: 1 week 5. Delivery time: 1 month 6. Load Port: Tianjin |
1. On line in 24 hours 2. TUV Certificate 3. OEM Product and Packing 4. Prompt Delivery 5. The necessary documents of clearing 6. Supply the reparing parts 7. The technical suggestion of install and application |
Hebei Juying Hoisting Machiney Co.,Ltd was founded in 2005, and mainly produce chain hoist, electric hoist, mini electric hoist, hoist, lifting chain, lifting sling, lifting machinery equipment. The company has a complete and scientific quality management system. Relately it has been vertified by TÜV Rheinland. |
Company Name: Hebei Juying Hoisting Machinery Co.,Ltd Address: Donglv Industrial Zone, Baoding City, China Tel/Fax:086-312-3071655 Mobile Phone: 086-15933590576 Skype: liujack1987 |
