Full Automatic Rolling Thread Machine
1. Features of automatic rolling thread machine:
This model thread rolling machine is mainly used for processing precision standard parts of external thread and high strength, including regular thread, trapezoid thread and modulus thread.
The objective material to be processed including carbon steel, alloy steel and nonferrous metal with elongation over 10% and tensile strength less than 100kgf/mm².

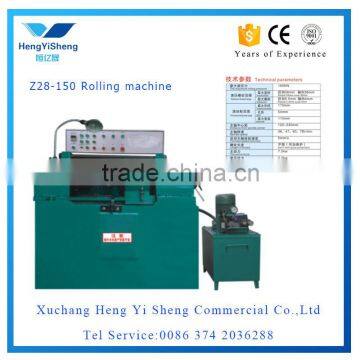

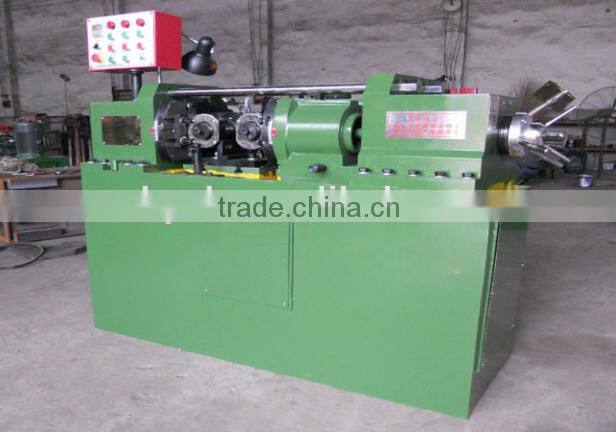

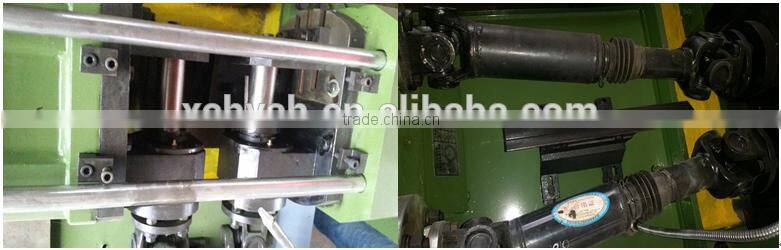

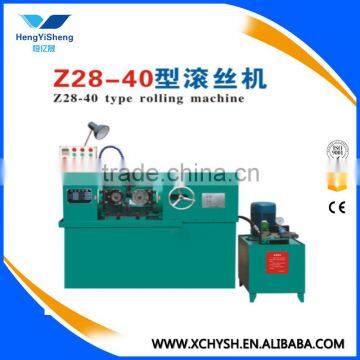

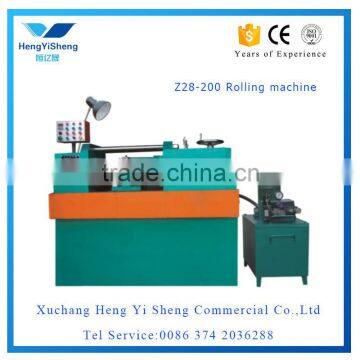

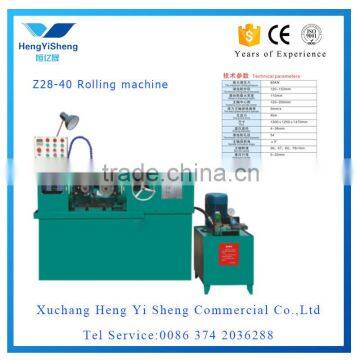

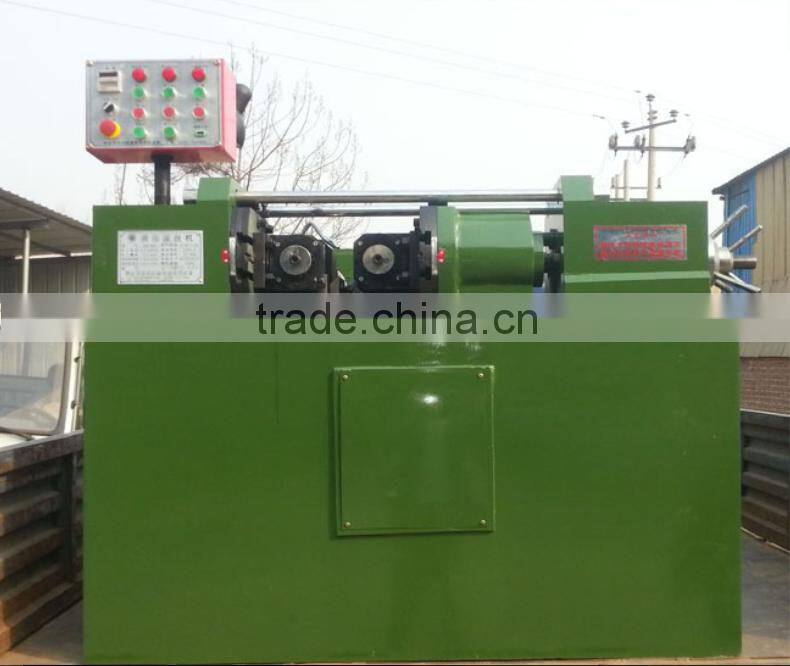

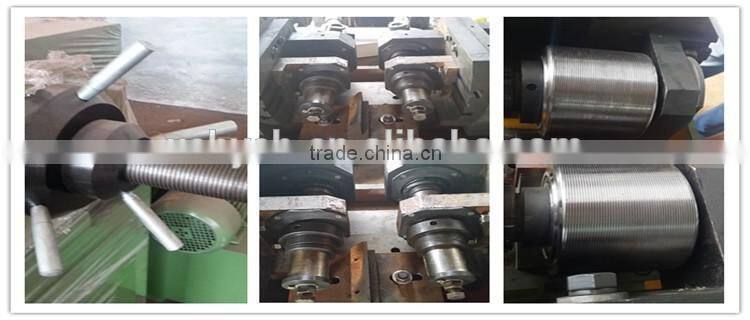

2. Machine pictures of automatic rolling thread machine:
3. Technical Parameters of automatic rolling thread machine:
Model No. |
Z28-40 |
Z28-80 |
Z28-150 |
Z28-185 |
Z28-200 |
The max. rolling pressure |
85KN |
150KN |
165KN |
185KN |
200KN |
OD dia. of thread rolling wheel |
120-150mm |
120-170mm |
120-170mm |
220mm |
220mm |
Thread rolling wheel max. width |
110mm |
110mm |
110mm |
110mm |
160mm |
Distance from spindle center |
120-200mm |
120-240mm |
120-240mm |
120-240mm |
150-300mm |
Dynamic spindle feed speed |
5mm/s |
5mm/s |
5mm/s |
5mm/s |
5mm/s |
Power |
4kw |
5.5kw |
7.5kw |
11kw |
11kw |
Roller dia. |
4-36mm |
4-48mm |
4-56mm |
4-56mm |
12-100mm |
Thread rolling wheel aperture |
54mm |
54mm |
54mm |
75mm |
75mm |
Spindle speed |
36, 47, 60, 78r/min |
36, 47, 60, 78r/min |
36, 47, 60, 78r/min |
36, 47, 60, 78r/min |
20, 25, 31, 41, 51, 64r/min |
Hydraulic stroke |
0-20mm |
Not limit |
Not limit |
Not limit |
Not limit |
Hydraulic power |
2.2kw |
2.2kw |
2.2kw |
2.2kw |
5.5kw |
Size(m) |
1.3x1.25x1.47 |
1.48x1.33x1.44 |
1.5x1.38x1.44 |
1.81x1.6x1.5 |
1.79x1.73x1.43 |
Weight |
900kg |
1750kg |
1850kg |
2200kg |
3000kg |
1. What’s the price of threading rollers?
Re: Kindly please let me know your rod material and the detailed size, such as diameter and thread pitch, etc., so that we can check for you accordingly.
2. We have different rod diameter from 20-80mm, how to choose threading rollers?
Re: The threading roller will be suitable for various length and diameter, but for different thread pitch, it should be changed accordingly.
3. How to operate the thread rolling machine, assuming it has auto cycle and foot pedal?
Re: The thread rolling machine is equipped with button control panel and foot pedal, so the working cycle can be exchanged as automatic work or inching.
4. What’s the capacity of the thread rolling machine and what’s the serve life?
Re: The speed of thread rolling machine is about 1m/min.
Generally speaking, the roller can be used for more than 60000 meters long.
Also it is relevant to the material hardness and your operation.
